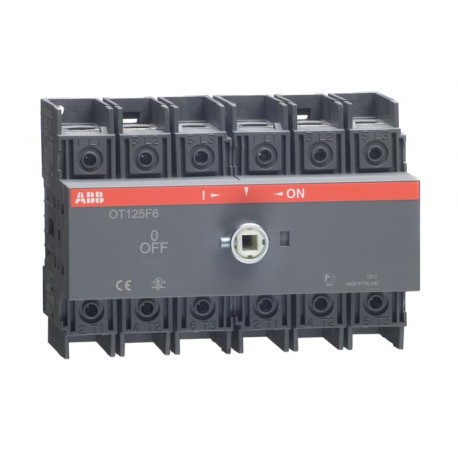

1SCA105057R1001 ABB OT125F6 switch-disconnector
1SCA105057R1001
105057
ABB
1 Pcs.
OT125F6 switch-disconnector
OT125F6 disconnect switch
OT125F6 SWITCH-DISCONNECTOR
Connectors > Switch disconnector
OT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb OT125F6 switch-disconnector ensures safe load interruption and circuit isolation within commercial and industrial electrical panels. These modular manual switches provide dependable disconnect functionality for multi-pole power circuits.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Environmental Information: 1SCC301264D0201
- Environmental Product Declaration - EPD: 1SCC301280D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC301020C0201
- Instructions and Manuals: 1SCC301059M0005
- Mechanical Drawings: 1SCC301474F0001
- Degree of Protection: Front IP20
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
More info
▲| ABB EcoSolutions | |
|---|---|
| Environmental Information | 1SCC301264D0201 |
| Environmental Product Declaration - EPD | 1SCC301280D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC301059M0005 |
| Mechanical Drawings | 1SCC301474F0001 |
| 1SCC301473F0001 | |
| OT100-125F6.igs | |
| Environmental Product Declaration - EPD | 1SCC301280D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Environmental Information | 1SCC301264D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 100 mm |
| Product Net Depth / Length | 86 mm |
| Product Net Weight | 1.1 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 103 mm |
| Package Level 1 Depth / Length | 205 mm |
| Package Level 1 Height | 102 mm |
| Package Level 1 Gross Weight | 1.1 kg |
| Package Level 1 EAN | 6417019391878 |
| Technical | |
| Cable Cross-Section | Cu 10 ... 70 mm² |
| Connecting Capacity Main Circuit | Flexible 1x Cu 10…70 mm² |
| Stranded 1x Cu 10…70 mm² | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 125 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 125 A |
| Degree of Protection | Front IP20 |
| Distance Between Phases | Standard |
| Handle Type | Knob |
| Handle and shaft not included | |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 6P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 6.3 W |
| Rated Conditional Short-Circuit Current (Inc) | (125 A fuse, 415 V) 50 kA |
| (125 A fuse, 690 V) 10 kA | |
| (63 A fuse, 690 V) 50 kA | |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 125 A |
| (500 V) 125 A | |
| (690 V) 125 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 125 A |
| (500 V) 125 A | |
| (690 V) 125 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 90 A |
| (500 V) 70 A | |
| (690 V) 50 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 22 kW |
| (400 ... 415 V) 45 kW | |
| (500 V) 45 kW | |
| (690 V) 45 kW | |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 3.6 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kA |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Special Functions | No |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Wire Stripping Length | Main Circuit 18-21 mm |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 100 A |
| Horsepower Rating UL/CSA | (acc. to UL 200 V) 25 Hp |
| (acc. to UL 480 V) 50 Hp | |
| (acc. to UL 240 V) 30 Hp | |
| (acc. to UL 208 V) 25 Hp | |
| (acc. to UL 600 V) 50 Hp | |
| Wire Stripping Length | Main Circuit 18-21 mm |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC301335D0201 |
| ATEX Certificate | No certification needed |
| Declaration of Conformity - CE | 1SCC301168D2702 |
| UL Certificate | cULus certificate OT30-125 |
| VDE Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5293 >> Switch disconnector |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601415 |
| E-Number (Norway) | 4363568 |
