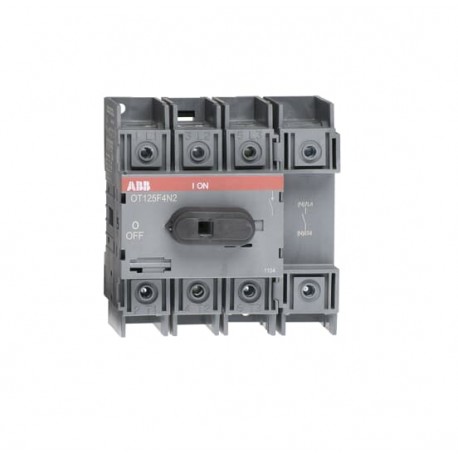

ABB 1SCA105051R1001 1SCA105051R1001 ABB OT125F4N2 switch-disconnector

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

1SCA105051R1001 ABB OT125F4N2 switch-disconnector

Name: 1SCA105051R1001 ABB OT125F4N2 switch-disconnector
Brand: ABB
SKU: 105051

Reference: 1SCA105051R1001

Code: 105051

Manufacturer: ABB

Units per package: 1 Pcs.

Description:

OT125F4N2 switch-disconnector OT125F4N2 disconnect switch OT125F4N2 SWITCH-DISCONNECTOR

Categories:
Connectors > Switch disconnector
OT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB 1SCA105051R1001 switch-disconnector functions as a manual control device capable of safely opening and closing loaded circuits in industrial switchboards and control panels. These components are essential for isolating machinery from electrical supplies to ensure safe operational environments during maintenance cycles.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

Environmental Information: 1SCC301264D0201
Environmental Product Declaration - EPD: 1SCC301280D0201
Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
REACH Declaration: 1SCC011021D0201
RoHS Declaration: 1SCC011020D0201
RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA: 1SCC011025D0201
Data Sheet, Technical Information: 1SCC301020C0201
Instructions and Manuals: 1SCC301058M0008
Mechanical Drawings: 1SCC301468F0001
Degree of Protection: Front IP20
Pollution Degree: 3
Minimum Order Quantity: 10 piece
Customs Tariff Number: 85365080

More info

▲

ABB EcoSolutions
Environmental Information	1SCC301264D0201
Environmental Product Declaration - EPD	1SCC301280D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
REACH Declaration	1SCC011021D0201
RoHS Declaration	1SCC011020D0201
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA	1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information	1SCC301020C0201
Instructions and Manuals	1SCC301058M0008
Mechanical Drawings	1SCC301468F0001
	1SCC301467F0001
	OT100-125F4N2.stp
	OT100-125F4N2.igs
Environmental Product Declaration - EPD	1SCC301280D0201
Environmental
Degree of Protection	Front IP20
Environmental Information	1SCC301264D0201
Pollution Degree	3
Ordering
Minimum Order Quantity	10 piece
Customs Tariff Number	85365080
Country or Territory of Origin	Finland
Dimensions
Product Net Width	96.5 mm
Product Net Height	100 mm
Product Net Depth / Length	74 mm
Product Net Weight	0.49 kg
Container Information
Package Level 1 Units	box 1 piece
Package Level 1 Width	86 mm
Package Level 1 Depth / Length	112 mm
Package Level 1 Height	109 mm
Package Level 1 Gross Weight	0.52 kg
Package Level 1 EAN	6417019391816
Technical
Cable Cross-Section	Cu 10 ... 70 mm²
Connecting Capacity Main Circuit	Flexible 1x Cu 10…70 mm²
	Stranded 1x Cu 10…70 mm²
Conventional Free-air Thermal Current (I_th)	Θ = 40 °C 125 A
Conventional Thermal Current (I_the)	Fully Enclosed 125 A
Degree of Protection	Front IP20
Distance Between Phases	Standard
Fourth Pole Position	Right Side
Fourth Pole Type	Switched - Simultaneous Function
Handle Type	Knob
	Handle and shaft not included
Mechanical Durability	20000
Mounting Type	Base mounting
Number of Poles	4P
Operating Mode	Front
Pollution Degree	3
Position of Line Terminals	Top In - Bottom Out
	Bottom In - Top Out
Power Loss	at Rated Operating Conditions per Pole 6.3 W
Rated Conditional Short-Circuit Current (I_nc)	(125 A fuse, 415 V) 50 kA
	(125 A fuse, 690 V) 10 kA
	(63 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (U_imp)	8 kV
Rated Insulation Voltage (U_i)	acc. to IEC/EN 60664-1 750 V
Rated Operational Current AC-21A (I_e)	(380 ... 415 V) 125 A
	(500 V) 125 A
	(690 V) 125 A
Rated Operational Current AC-22A (I_e)	(380 ... 415 V) 125 A
	(500 V) 125 A
	(690 V) 125 A
Rated Operational Current AC-23A (I_e)	(380 ... 415 V) 90 A
	(500 V) 70 A
	(690 V) 50 A
Rated Operational Power AC-23A (P_e)	(220 ... 240 V) 22 kW
	(400 ... 415 V) 45 kW
	(500 V) 45 kW
	(690 V) 45 kW
Rated Operational Voltage	Main Circuit 750 V
Rated Short-Circuit Making Capacity (I_cm)	(690 V) 3.6 kA
Rated Short-time Withstand Current Low Voltage (I_cw)	for 1 s 2.5 kA
Recommended Screw Driver	Main Circuit Hexagon 4
Special Functions	No
Standards	IEC 60947-3
Switches Operating Mechanism	Mechanism on Top of the Switch
Terminal Type	Screw Terminals
Tightening Torque	acc. IEC 60947-1 6 N·m
Wire Stripping Length	Main Circuit 18-21 mm
Technical UL/CSA
Maximum Operating Voltage UL/CSA	600 V
Ampere Rating	100 A
Horsepower Rating UL/CSA	(acc. to UL 200 V) 25 Hp
	(acc. to UL 480 V) 50 Hp
	(acc. to UL 240 V) 30 Hp
	(acc. to UL 208 V) 25 Hp
	(acc. to UL 600 V) 50 Hp
Wire Stripping Length	Main Circuit 18-21 mm
Recommended Screw Driver	Main Circuit Hexagon 4
Tightening Torque	acc. IEC 60947-1 6 N·m
Certificates and Declarations
A2L Certificate – IEC	1SCC301335D0201
ATEX Certificate	No certification needed
Declaration of Conformity - CE	1SCC301168D2702
UL Certificate	cULus certificate OT30-125
VDE Certificate	No certification needed
External Classifications and Standards
Object Classification Code	Q
ETIM 9	EC000216 - Switch disconnector (low voltage)
ETIM 10	EC000216 - Switch disconnector (AC)
UNSPSC	39122233
IDEA Granular Category Code (IGCC)	5290 >> Disconnect switch
eClass	V11.1 : 27371403
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)	3601413
E-Number (Norway)	4363533
E-Number (Sweden)	3171074
