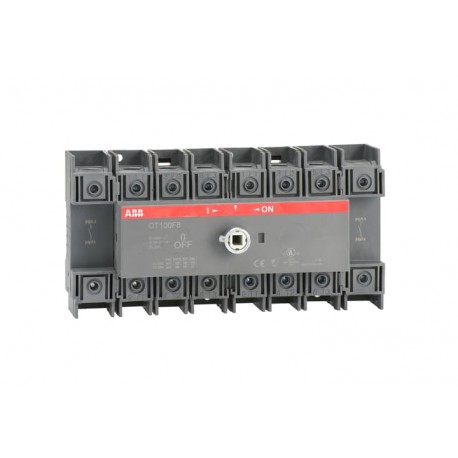

ABB 1SCA105022R1001 1SCA105022R1001 ABB OT100F8 switch-disconnector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA105022R1001 ABB OT100F8 switch-disconnector

1SCA105022R1001

105022

ABB

1 Pcs.

OT100F8 switch-disconnector OT100F8 disconnect switch OT100F8 SWITCH-DISCONNECTOR

Connectors > Switch disconnector
OT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An 1SCA105022R1001 ABB OT100F8 switch-disconnector provides reliable circuit isolation and load breaking capabilities for commercial and industrial electrical distribution setups. Engineers incorporate these modular disconnect devices into control panels to ensure safe equipment isolation and dependable performance under normal operating conditions.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Environmental Information: 1SCC301264D0201
  • Environmental Product Declaration - EPD: 1SCC301280D0201
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Toxic Substances Control Act - TSCA: 1SCC011025D0201
  • Data Sheet, Technical Information: 1SCC301020C0201
  • Instructions and Manuals: 1SCC301059M0005
  • Mechanical Drawings: 1SCC301476F0001
  • Environmental Product Declaration - EPD: 1SCC301280D0201
  • Degree of Protection: Front IP20
  • Environmental Information: 1SCC301264D0201
  • Pollution Degree: 3
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85365080

More info

▲
ABB EcoSolutions
Environmental Information1SCC301264D0201
Environmental Product Declaration - EPD1SCC301280D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC301059M0005
Mechanical Drawings1SCC301476F0001
1SCC301475F0001
OT100-125F8.igs
Environmental Product Declaration - EPD1SCC301280D0201
Environmental
Degree of ProtectionFront IP20
Environmental Information1SCC301264D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width193 mm
Product Net Height100 mm
Product Net Depth / Length86 mm
Product Net Weight1.3 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width103 mm
Package Level 1 Depth / Length205 mm
Package Level 1 Height102 mm
Package Level 1 Gross Weight1.4 kg
Package Level 1 EAN6417019391533
Technical
Cable Cross-SectionCu 10 ... 70 mm²
Connecting Capacity Main CircuitFlexible 1x Cu 10…70 mm²
Stranded 1x Cu 10…70 mm²
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 115 A
Conventional Thermal Current (Ithe)Fully Enclosed 115 A
Degree of ProtectionFront IP20
Distance Between PhasesStandard
Fourth Pole PositionLeft and Right Side
Fourth Pole TypeSwitched - Simultaneous Function
Handle TypeKnob
Handle and shaft not included
Mechanical Durability20000
Mounting TypeBase mounting
Number of Poles8P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 4.0 W
Rated Conditional Short-Circuit Current (Inc)(125 A fuse, 415 V) 50 kA
(125 A fuse, 690 V) 10 kA
(63 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 750 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 100 A
(500 V) 100 A
(690 V) 100 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 100 A
(500 V) 100 A
(690 V) 100 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 80 A
(500 V) 60 A
(690 V) 40 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 22 kW
(400 ... 415 V) 37 kW
(500 V) 37 kW
(690 V) 37 kW
Rated Operational VoltageMain Circuit 750 V
Rated Short-Circuit Making Capacity (Icm)(690 V) 3.6 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 2.5 kA
Recommended Screw DriverMain Circuit Hexagon 4
Special FunctionsNo
StandardsIEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating MechanismMechanism on Top of the Switch
Terminal TypeScrew Terminals
Tightening Torqueacc. IEC 60947-1 6 N·m
Wire Stripping LengthMain Circuit 18-21 mm
Technical UL/CSA
Maximum Operating Voltage UL/CSA600 V
Ampere Rating100 A
Horsepower Rating UL/CSA(110 ... 120 V AC) Single Phase 5 Hp
(240 V AC) Single Phase 15 Hp
(440 ... 480 V AC) Single Phase 25 Hp
(550 ... 600 V AC) Single Phase 20 Hp
(220 ... 240 V AC) Three Phase 30 Hp
(440 ... 480 V AC) Three Phase 50 Hp
(550 ... 600 V AC) Three Phase 50 Hp
Wire Stripping LengthMain Circuit 18-21 mm
Recommended Screw DriverMain Circuit Hexagon 4
Tightening Torqueacc. IEC 60947-1 6 N·m
Tightening Torque UL/CSA55 in·lb
Certificates and Declarations
A2L Certificate – IEC1SCC301335D0201
ATEX CertificateNo certification needed
Declaration of Conformity - CE1SCC301168D2702
UL CertificatecULus certificate OT30-125
VDE CertificateNo certification needed
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
IDEA Granular Category Code (IGCC)5290 >> Disconnect switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3601406
E-Number (Norway)4363574
