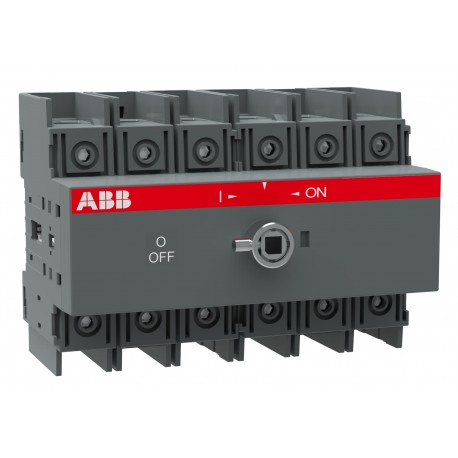

1SCA105021R1001 ABB OT100F6 switch-disconnector
1SCA105021R1001
105021
ABB
1 Pcs.
Connectors > Switch disconnector
OT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Built to handle heavy electrical loads, the 1SCA105021R1001 ABB OT100F6 switch-disconnector provides reliable manual isolation for power distribution networks and machine control centers. These disconnect switches ensure technicians can safely cut power to specific zones during servicing operations. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Environmental Information: 1SCC301264D0201
- Environmental Product Declaration - EPD: 1SCC301280D0201
- REACH Declaration: 1SCC011021D0201
- RoHS Information: 1SCC011020D0201
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Environmental Product Declaration - EPD: 1SCC301280D0201
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country of Origin: Finland (FI)
- Data Sheet, Technical Information: 1SCC301020C0201
- Instructions and Manuals: 1SCC301059M0005
- Mechanical Drawings: 1SCC301474F0001
- Environmental Product Declaration - EPD: 1SCC301280D0201
- Product Net Width: 140 mm
- Product Net Height: 100 mm
More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Environmental Information | 1SCC301264D0201 |
| Environmental Product Declaration - EPD | 1SCC301280D0201 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Information | 1SCC011020D0201 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Eco Transparency | |
| Environmental Product Declaration - EPD | 1SCC301280D0201 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC301059M0005 |
| Mechanical Drawings | 1SCC301474F0001 |
| 1SCC301473F0001 | |
| OT100-125F6.igs | |
| Environmental Product Declaration - EPD | 1SCC301280D0201 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 100 mm |
| Product Net Depth / Length | 86 mm |
| Product Net Weight | 1.1 kg |
| Technical | |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 100 A |
| (500 V) 100 A | |
| (690 V) 100 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 100 A |
| (500 V) 100 A | |
| (690 V) 100 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 80 A |
| (500 V) 60 A | |
| (690 V) 40 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 22 kW |
| (400 ... 415 V) 37 kW | |
| (500 V) 37 kW | |
| (690 V) 37 kW | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 115 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 115 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 3.6 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kA |
| Rated Conditional Short-Circuit Current (Inc) | (125 A fuse, 415 V) 50 kA |
| (125 A fuse, 690 V) 10 kA | |
| (63 A fuse, 690 V) 50 kA | |
| Power Loss | at Rated Operating Conditions per Pole 4.0 W |
| Pollution Degree | 3 |
| Handle Type | Knob |
| Handle and shaft not included | |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| Distance Between Phases | Standard |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Operating Mode | Front operated |
| Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
| Special Functions | No |
| Mounting Type | Base mounting |
| Number of Poles | 6 |
| Cable Cross-Section | Cu 10 ... 70 mm² |
| Degree of Protection | Front IP20 |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Mechanical Durability | 20000 |
| Lock Type | No |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 100 A |
| Horsepower Rating UL/CSA | (110 ... 120 V AC) Single Phase 5 Hp |
| (240 V AC) Single Phase 15 Hp | |
| (440 ... 480 V AC) Single Phase 25 Hp | |
| (550 ... 600 V AC) Single Phase 20 Hp | |
| (220 ... 240 V AC) Three Phase 30 Hp | |
| (440 ... 480 V AC) Three Phase 50 Hp | |
| (550 ... 600 V AC) Three Phase 50 Hp | |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Tightening Torque UL/CSA | 55 in·lb |
| Environmental | |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Environmental Information | 1SCC301264D0201 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC301335D0201 |
| ATEX Certificate | No certification needed |
| Declaration of Conformity - CE | 1SCC301168D2702 |
| REACH Declaration | 1SCC011021D0201 |
| UL Certificate | cULus certificate OT30-125 |
| VDE Certificate | No certification needed |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 103 mm |
| Package Level 1 Depth / Length | 205 mm |
| Package Level 1 Height | 102 mm |
| Package Level 1 Gross Weight | 1.1 kg |
| Package Level 1 EAN | 6417019391526 |
| Classifications | |
| Object Classification Code | Q |
| ETIM 7 | EC000216 - Switch disconnector |
| ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601405 |
