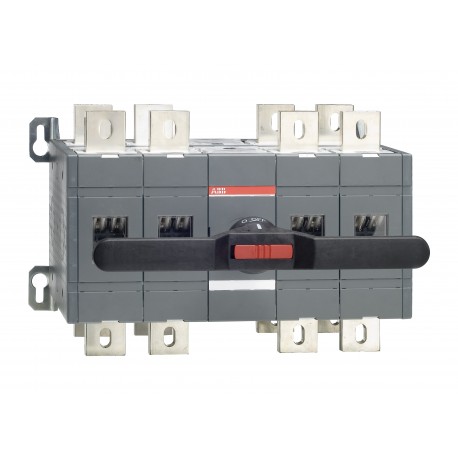

1SCA103289R1001 ABB OT1000E22CP CHANGE-OVER SWITCH
1SCA103289R1001
103289
ABB
1 Pcs.
Connectors > Switch disconnector
OT_C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB OT1000E22CP change-over switch provides reliable transfer of electrical loads between two independent power sources in heavy-duty distribution networks. Change-over switches are commonly implemented in industrial facilities to maintain continuous operations during primary power fluctuations or outages by routing backup supply lines safely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- End Of Life Disassembling Instructions: 1SCC303053M0201
- Environmental Information: 1SCC303050D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Data Sheet, Technical Information: 1SCC303003C0201
- Instructions and Manuals: 1SCC303008M0208
- Degree of Protection: Front IP20
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country or Territory of Origin: Finland
- Product Net Width: 480 mm
- Product Net Height: 306 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC303053M0201 |
| Environmental Information | 1SCC303050D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC303003C0201 |
| Instructions and Manuals | 1SCC303008M0208 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Environmental Information | 1SCC303050D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 480 mm |
| 18.9 in | |
| Product Net Height | 306 mm |
| 12.05 in | |
| Product Net Depth / Length | 309 mm |
| 12.17 in | |
| Product Net Weight | 42.52 kg |
| 93.74 lb | |
| Container Information | |
| Package Level 1 Units | box 1 box |
| Package Level 1 Width | 339 mm |
| 13.35 in | |
| Package Level 1 Depth / Length | 534 mm |
| 21.02 in | |
| Package Level 1 Height | 338 mm |
| 13.31 in | |
| Package Level 1 Gross Weight | 44.52 kg |
| 98.15 lb | |
| Package Level 1 EAN | 6417019378022 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 1000 A |
| Degree of Protection | Front IP20 |
| Distance Between Phases | Standard |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 19 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 1000 A |
| (500 V) 1000 A | |
| (690 V) 1000 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1000 A |
| (500 V) 1000 A | |
| (690 V) 1000 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1000 A |
| (500 V) 1000 A | |
| (690 V) 1000 A | |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 1000 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 1000 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 560 kW |
| (500 V) 710 kW | |
| (690 V) 1000 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kiloampere rms |
| Switches Operating Mechanism | Mechanism Between the Poles |
| 22 (Between the Poles) | |
| Terminal Type | Screw Terminals |
| Terminal Width | 50 mm |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Transition Type | Open |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC303015D2702 |
| DNV Certificate | 1SCC303138D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3641573 |
