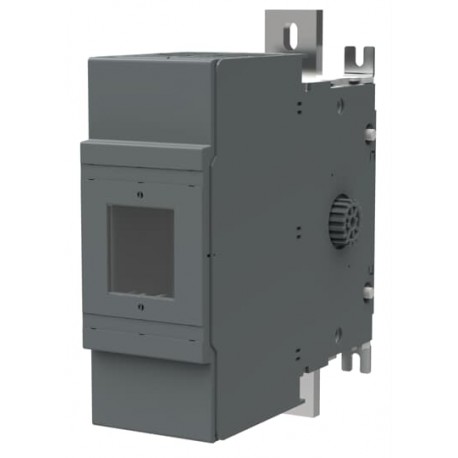

1SCA107946R1001 ABB OSP1250D Fourth pole
1SCA107946R1001
107946
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Fourth pole assembly 1SCA107946R1001 from Abb enables the conversion of standard three-pole load break switches into four-pole configurations for neutral switching applications. Adding a neutral pole ensures complete electrical isolation across all circuit conductors during maintenance shutdowns. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC311022M0207
- Mechanical Drawings: osp1200-1250_.stp
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Country or Territory of Origin: Finland
- Product Net Width: 240 mm
- Product Net Height: 120 mm
- Product Net Depth / Length: 335 mm
- Product Net Weight: 3.6 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 240 mm
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311022M0207 |
| Mechanical Drawings | osp1200-1250_.stp |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 240 mm |
| Product Net Height | 120 mm |
| Product Net Depth / Length | 335 mm |
| Product Net Weight | 3.6 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 240 mm |
| Package Level 1 Depth / Length | 335 mm |
| Package Level 1 Height | 120 mm |
| Package Level 1 Gross Weight | 3.6 kg |
| Package Level 1 EAN | 6417019414027 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | 1250 A |
| Conventional Thermal Current (Ithe) | 1250 A |
| Mounting Type | Screw mounting |
| Power Loss | at Rated Current 75 W |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Special Functions | D |
| Terminal Type | Lug terminals |
| Tightening Torque | 50 … 75 N·m |
| Technical UL/CSA | |
| Tightening Torque | 50 … 75 N·m |
| Certificates and Declarations | |
| External Classifications and Standards | |
| Object Classification Code | N/A |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39122221 |
| eClass | V11.1 : 27371392 |
| WEEE Category | Product Not in WEEE Scope |
| E-Number (Finland) | 3661023 |
