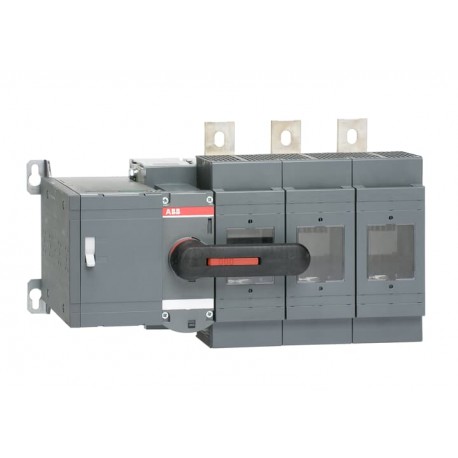

ABB 1SCA104518R1001 1SCA104518R1001 ABB OSM630D3M230C Motorized switch fuse View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA104518R1001 ABB OSM630D3M230C Motorized switch fuse

1SCA104518R1001

104518

ABB

1 Pcs.

OSM630D3M230C Motorized switch fuse Motor fuse switch OSM630D3M230C OSM630D3M230C MOTORIZED SWITCH FUSE

Connectors > Fuse switch disconnector
OS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
Environmental Information1SCC311002D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC311013C0201
Instructions and Manuals1SCC311029M0203
Environmental
Degree of Protectionacc. to IEC 60529 IP20
Environmental Information1SCC311002D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width487 mm
Product Net Height304 mm
Product Net Depth / Length306 mm
Product Net Weight21.5 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width440 mm
Package Level 1 Depth / Length700 mm
Package Level 1 Height565 mm
Package Level 1 Gross Weight21.5 kg
Package Level 1 EAN6417019387611
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 630 A
Conventional Thermal Current (Ithe)Fully Enclosed 570 A
Degree of Protectionacc. to IEC 60529 IP20
Fuse SizeNH3
Fuse SystemDIN
Handle TypePistol handle
Motor Operational Voltage220 ... 240 V AC
Mounting TypeBase mounting
Number of Poles3P
Operating ModeMotor Operated and Manually From the Front
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out, Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 46 W
Rated Conditional Short-Circuit Current (Inc)(500 V) 100 kA
(690 V) 80 kA
Rated Current (In)Main Circuit 630 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 630 A
(500 V AC) 630 A
(690 V AC) 630 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 630 A
(500 V) 630 A
(690 V) 630 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 630 A
(500 V) 630 A
(690 V) 630 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 355 kW
(500 V) 450 kW
(690 V) 630 kW
Rated Operational VoltageMain Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 18 kiloampere rms
StandardsIEC 60947-3
Switches Operating Mechanism03 (Left Side)
Terminal TypeLug terminals
Tightening Torque50 … 75 N·m
Technical UL/CSA
Tightening Torque50 … 75 N·m
Certificates and Declarations
A2L Certificate – IEC1SCC311209D0201
ATEX CertificateNo certification needed
Declaration of Conformity - CE1SCC311154D2703
UL CertificateNo certification needed
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC001040 - Fuse switch disconnector
ETIM 10EC001040 - Fuse switch disconnector
UNSPSC39122233
IDEA Granular Category Code (IGCC)5291 >> Fuse switch disconnector
eClassV11.1 : 27371401
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3638124

ETIM for 1SCA104518R1001 Low-voltage industrial controls and switchgear (EC001040)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as safety switch (EF006985) Yes
Max. rated operation voltage Ue AC (EF007355) 1000 V
Rated operation power at AC-23, 400 V (EF007027) 630 kW
Conditioned rated short-circuit current Iq (EF001444) 80 kA
Rated short-time withstand current lcw (EF007050) 18 kA
Suitable for fuses (EF006692) NH3
Number of poles (EF001391) 3
Type of electrical connection of main circuit (EF006819) Bolt connection
Cable entry (EF000537) Other
Equipped with connectors (EF011696) Yes
Suitable for floor mounting (EF007243) No
Suitable for front mounting (EF007246) No
Suitable for busbar mounting (EF007259) Yes
Type of control element (EF006976) Long turning handle
Position control element (EF009410) Left
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Version as emergency stop installation (EF006959) No
