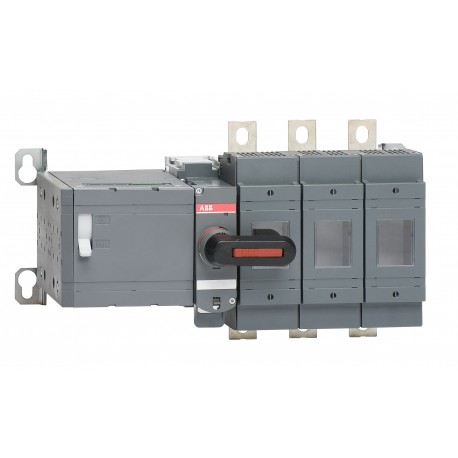

1SCA104315R1001 ABB OSM400D3M230C Motorized switch fuse
1SCA104315R1001
104315
ABB
1 Pcs.
Connectors > Fuse switch disconnector
OS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
1SCA104315R1001 ABB OSM400D3M230C Motorized switch fuse integrates an automated motor drive with a traditional switch-fuse mechanism to allow remote-controlled switching and reliable circuit protection. This motorized device is frequently utilized in automated electrical substations and industrial plants. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- Environmental Information: 1SCC311002D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC311029M0203
- Degree of Protection: acc. to IEC 60529 IP20
- Environmental Information: 1SCC311002D0201
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country or Territory of Origin: Finland
- Product Net Width: 404 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Environmental Information | 1SCC311002D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311029M0203 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Environmental Information | 1SCC311002D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 404 mm |
| Product Net Height | 251 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 11.1 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 310 mm |
| Package Level 1 Depth / Length | 560 mm |
| Package Level 1 Height | 330 mm |
| Package Level 1 Gross Weight | 11.1 kg |
| Package Level 1 EAN | 6417019385143 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 400 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 400 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | NH0 |
| NH1 | |
| NH2 | |
| Fuse System | DIN |
| Handle Type | Pistol handle |
| Motor Operational Voltage | 220 ... 240 V AC |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Motor Operated and Manually From the Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Current 36 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 400 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 200 A |
| (500 V AC) 400 A | |
| (690 V AC) 400 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 400 A | |
| (690 V) 400 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 400 A | |
| (690 V) 400 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 220 kW |
| (500 V) 280 kW | |
| (690 V) 400 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 14 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 03 (Left Side) |
| Terminal Type | Lug terminals |
| Tightening Torque | 30 … 44 N·m |
| Technical UL/CSA | |
| Tightening Torque | 30 … 44 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| Declaration of Conformity - CE | 1SCC311153D2703 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3638121 |
