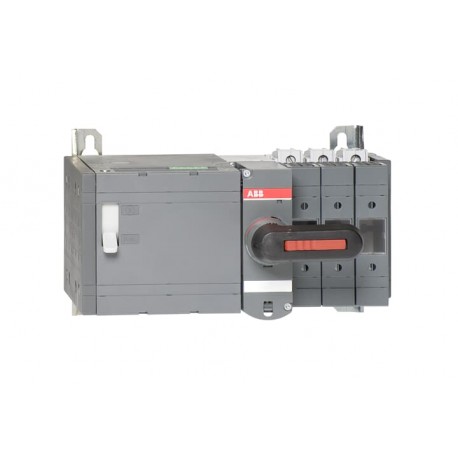

1SCA116664R1001 ABB OSM32GD3M230C Motorized switch fuse
1SCA116664R1001
116664
ABB
1 Pcs.
Connectors > Fuse switch disconnector
OS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A motorized switch fuse is an automated electrical switching device used in power distribution systems to provide remote disconnection, circuit protection, and switching operations under load conditions. This ABB OSM32GD3M230C Motorized switch fuse integrates motorized actuation for safe remote control in complex installations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Environmental Information: 1SCC311002D0201
- Group Waste to Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- REACH Declaration: 1SCC011021D0201
- RoHS Information: Related to EU Directive 2011/65/EU compliance
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country of Origin: Finland (FI)
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC311029M0203
- Product Net Width: 229 mm
- Product Net Height: 197 mm
- Product Net Depth / Length: 138 mm
- Product Net Weight: 4.65 kg
- Rated Operational Current AC-21A (I e ): (380 ... 415 V) 32 A
More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Environmental Information | 1SCC311002D0201 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Information | 1SCC011020D0201 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311029M0203 |
| Dimensions | |
| Product Net Width | 229 mm |
| Product Net Height | 197 mm |
| Product Net Depth / Length | 138 mm |
| Product Net Weight | 4.65 kg |
| 10.25 lb | |
| Technical | |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 32 A |
| (500 V AC) 32 A | |
| (690 V AC) 32 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 32 A |
| (500 V) 32 A | |
| (690 V) 32 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 32 A |
| (500 V) 32 A | |
| (690 V) 32 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 15 kW |
| (500 V) 18.5 kW | |
| (690 V) 22 kW | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 32 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA |
| Motor Operational Voltage | 220 ... 240 V AC |
| Power Loss | at Rated Operating Conditions per Pole 1 W |
| Pollution Degree | 3 |
| Handle Type | Handle included for manual operation |
| Switches Operating Mechanism | 03 (Left Side) |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Fuse Size | NH000 |
| Fuse System | DIN |
| Operating Mode | Motor operated and manually from the front |
| Standards | IEC 60947-3 |
| Mounting Type | Base mounting |
| Number of Poles | 3 |
| Terminal Type | Screw Terminals |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Rated Current (In) | Main Circuit 32 A |
| Technical UL/CSA | |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Environmental | |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Environmental Information | 1SCC311002D0201 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311208D0201 |
| Declaration of Conformity - CE | No declaration needed |
| REACH Declaration | 1SCC011021D0201 |
| UL Certificate | No certification needed |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 328 mm |
| 12.91 in | |
| Package Level 1 Depth / Length | 365 mm |
| 14.37 in | |
| Package Level 1 Height | 260 mm |
| 10.24 in | |
| Package Level 1 Gross Weight | 5.1 kg |
| 11.24 lb | |
| Package Level 1 EAN | 6417019487618 |
| Classifications | |
| Object Classification Code | Q |
| ETIM 7 | EC001040 - Fuse switch disconnector |
| ETIM 8 | EC001040 - Fuse switch disconnector |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3638107 |
