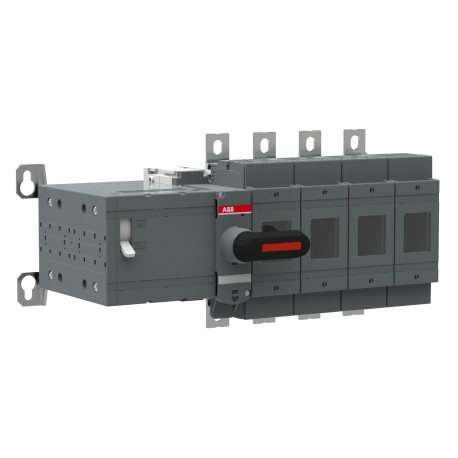

1SCA118838R1001 ABB OSM250D4N2M230C Motorized switch fuse
1SCA118838R1001
118838
ABB
1 Pcs.
Connectors > Fuse switch disconnector
OS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb OSM250D4N2M230C Motorized switch fuse combines mechanical circuit interruption with overcurrent protection in demanding power distribution panels. Industrial installations rely on these combination units to safely isolate loads and protect downstream equipment from fault currents while enabling remote electrical operation.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- Environmental Information: 1SCC311002D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC311029M0203
- Degree of Protection: acc. to IEC 60529 IP20
- Environmental Information: 1SCC311002D0201
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country or Territory of Origin: Finland
- Product Net Width: 408 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Environmental Information | 1SCC311002D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311029M0203 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Environmental Information | 1SCC311002D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 408 mm |
| Product Net Height | 206 mm |
| Product Net Depth / Length | 193 mm |
| Product Net Weight | 8.63 kg |
| 19.03 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 255 mm |
| 10.04 in | |
| Package Level 1 Depth / Length | 460 mm |
| 18.11 in | |
| Package Level 1 Height | 253 mm |
| 9.96 in | |
| Package Level 1 Gross Weight | 9.38 kg |
| 20.68 lb | |
| Package Level 1 EAN | 6417019505084 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 250 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - With Solid Link |
| Fuse Size | NH0 |
| NH1 | |
| Fuse System | DIN |
| Handle Type | Pistol handle |
| Motor Operational Voltage | 220 ... 240 V AC |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Motor Operated and Manually From the Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Current 17 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 100 kA |
| Rated Current (In) | Main Circuit 250 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 250 A |
| (500 V AC) 250 A | |
| (690 V AC) 250 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 140 kW |
| (500 V) 170 kW | |
| (690 V) 250 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 04 (Left Side) |
| Terminal Type | Lug terminals |
| Tightening Torque | 30 … 44 N·m |
| Technical UL/CSA | |
| Tightening Torque | 30 … 44 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| Declaration of Conformity - CE | 1SCC311152D2703 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
