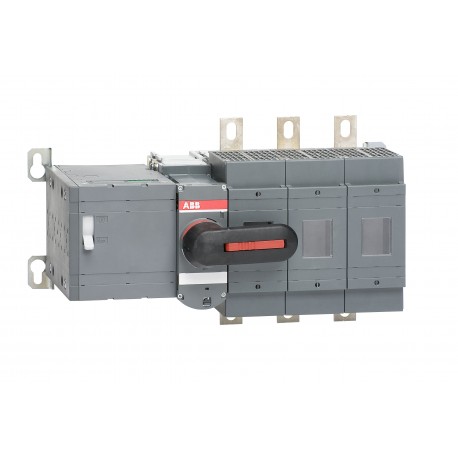

1SCA104284R1001 ABB OSM200D3M230C Motorized switch fuse
1SCA104284R1001
104284
ABB
1 Pcs.
Connectors > Fuse switch disconnector
OS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Operated via an electric drive, the Abb 1SCA104284R1001 OSM200D3M230C Motorized switch fuse combines automated switching capability with fusible circuit protection. Motorized switch fuses are commonly installed in remote or automated electrical distribution systems to allow safe, remote-controlled load interruption and reliable short-circuit isolation.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- Environmental Information: 1SCC311002D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC311029M0203
- Degree of Protection: acc. to IEC 60529 IP20
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country or Territory of Origin: Finland
- Product Net Width: 324 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Environmental Information | 1SCC311002D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311029M0203 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Environmental Information | 1SCC311002D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 324 mm |
| Product Net Height | 206 mm |
| Product Net Depth / Length | 199 mm |
| Product Net Weight | 6.51 kg |
| 14.35 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 215 mm |
| 8.46 in | |
| Package Level 1 Depth / Length | 395 mm |
| 15.55 in | |
| Package Level 1 Height | 215 mm |
| 8.46 in | |
| Package Level 1 Gross Weight | 8.21 kg |
| 18.1 lb | |
| Package Level 1 EAN | 6417019375984 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | NH0 |
| Fuse System | DIN |
| Handle Type | Pistol handle |
| Motor Operational Voltage | 220 ... 240 V AC |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Motor Operated and Manually From the Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 8 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 200 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 200 A |
| (500 V AC) 200 A | |
| (690 V AC) 200 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 110 kW |
| (500 V) 132 kW | |
| (690 V) 200 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 03 (Left Side) |
| Terminal Type | Lug terminals |
| Tightening Torque | 15 … 22 N·m |
| Technical UL/CSA | |
| Tightening Torque | 15 … 22 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| Declaration of Conformity - CE | 1SCC311151D2703 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3638115 |
