View larger
Images are for illustrative purposes only. Please refer to data sheet for details

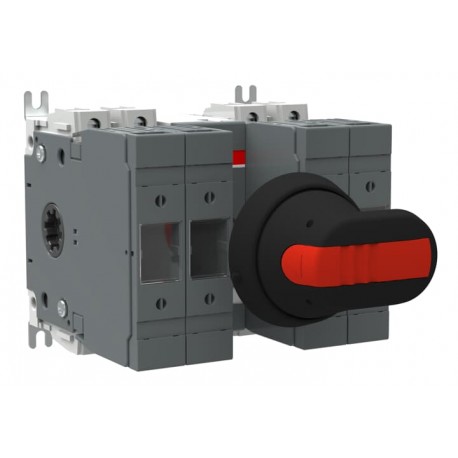

1SCA116729R1001 ABB OS63GD22N1P Switch fuse
1SCA116729R1001
116729
ABB
1 Pcs.
OS63GD22N1P Switch fuse
Fuse switch OS63GD22N1P
OS63GD22N1P SWITCH FUSE
Connectors > Fuse switch disconnector
OS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311048M0201 |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | e8558af0-6fb4-4372-8d32-c8a9df6f7132 Finland |
| Simplified SCIP | 7ef0f22e-37a8-4bb2-8caa-1cf8b26e7dec Germany |
| fa67ba66-a7b4-4834-a484-9e4ed4bc5364 Spain | |
| 3ee31cf1-b0eb-43a2-b84b-c8d78f09fc7e Belgium | |
| db9ffeb2-65de-4d33-8333-d7244f7be990 Italy | |
| 0e455bb4-38ac-4f02-9502-8ee0e82ad341 France | |
| 64d9d75c-3c3c-46c3-9c99-dbbcc2693b0e Poland | |
| 3ab175e7-70ea-4e2a-89c1-367ed15855e8 Netherlands | |
| d97891f4-6abb-49f0-b2b8-f37732e27a08 Portugal | |
| ea45a0d4-0088-4804-82da-95d75d3cbf32 Greece | |
| e3acf63c-8f26-49ae-b070-23f4753085ba Estonia | |
| 15b3f702-44e3-47ec-b9e9-3bbeb30ec636 Hungary | |
| 3a2616f7-225f-495f-9769-ddf2c4bf9d19 Czech Republic | |
| 687fa95d-9932-4de9-9847-89e1cabbb1fa Croatia | |
| 4d1fc53c-8f58-484d-bcd2-c8eeaf1ddd6c Sweden | |
| da0e53a9-7629-4372-8eff-2ed7d3bc3f02 Poland | |
| 5e720f60-1f2c-48bc-a58e-a792c65ffa4b Bulgaria | |
| 543558ee-582f-46aa-a9c8-a3a984cfa711 Germany | |
| f49f7ac4-0984-47ad-9b8a-099a6c8a0286 Sweden | |
| dcabcd6c-183c-4ce7-b19d-e4c91ff21eb2 Germany | |
| 36241ebc-bad2-41b5-9888-ee8a5275bbcb Belgium | |
| fdeb3ce7-d146-43f1-9df3-cb6d98a6fc09 Denmark | |
| 5ac232dc-87ba-4f90-b7ee-3f59ba75c833 Norway | |
| 966f6d7d-b313-40e9-a4b5-a3d679cf2cbf Germany | |
| a1948ef8-7b89-4739-8e5e-6b77e683dd01 Germany | |
| 14a017da-3491-4870-8e05-5e64490a0f09 Poland | |
| 1aae7300-3cab-4816-840e-8df184cd8807 Hungary | |
| f4f60c36-b0f2-40ca-97d9-a9505966c0c0 France | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311036M0212 |
| Mechanical Drawings | OS63GD22.igs |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 138 mm |
| Product Net Height | 112 mm |
| Product Net Depth / Length | 121 mm |
| Product Net Weight | 1.4 kg |
| 3 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| 6.7 in | |
| Package Level 1 Depth / Length | 190 mm |
| 7.5 in | |
| Package Level 1 Height | 145 mm |
| 5.7 in | |
| Package Level 1 Gross Weight | 1.5 kg |
| 3.3 lb | |
| Package Level 1 EAN | 6417019488172 |
| Technical | |
| Cable Cross-Section | 2.5 ... 25 mm² |
| Connecting Capacity | Stranded 2.5 … 25 mm² |
| Flexible 2.5 … 25 mm² | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 63 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 63 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fourth Pole Position | Left Side |
| Fourth Pole Type | Switched - With Solid Link |
| Fuse Size | NH000 |
| Fuse System | DIN |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Current 2 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 63 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 63 A |
| (690 V) 63 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 63 A |
| (690 V) 63 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 63 A |
| (690 V) 63 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 18.5 kW |
| (400 V) 30 kW | |
| (415 V) 30 kW | |
| (500 V) 37 kW | |
| (690 V) 55 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 22 (Between the Poles) |
| Terminal Type | Screw Terminals |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Wire Stripping Length | Main Circuit 12 mm |
| Main Circuit 0.47 in | |
| Technical UL/CSA | |
| Wire Stripping Length | Main Circuit 12 mm |
| Main Circuit 0.47 in | |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311208D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS32-63G_ 2016.pdf |
| Declaration of Conformity - CE | 1SCC311136D2703 |
| DNV GL Certificate | 1SCC311125D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Sweden) | 3172153 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as safety switch (EF006985) | Yes |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated permanent current Iu (EF001389) | 63 A |
| Rated operation power at AC-23, 400 V (EF007027) | 55 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 80 kA |
| Rated short-time withstand current lcw (EF007050) | 2.5 kA |
| Suitable for fuses (EF006692) | NH000 |
| Number of poles (EF001391) | 4 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Cable entry (EF000537) | Other |
| Equipped with connectors (EF011696) | Yes |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | No |
| Suitable for busbar mounting (EF007259) | Yes |
| Type of control element (EF006976) | Long turning handle |
| Position control element (EF009410) | Front |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Version as emergency stop installation (EF006959) | No |
