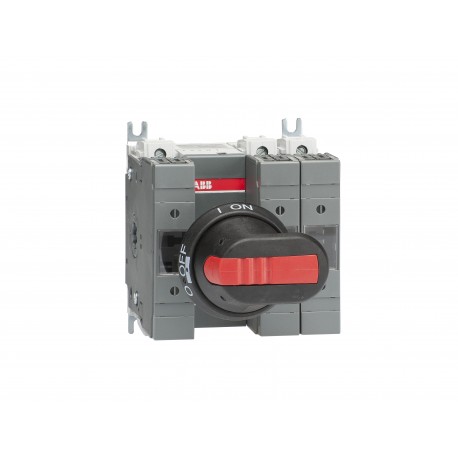

1SCA115227R1001 ABB OS63GD12P Switch fuse
1SCA115227R1001
115227
ABB
1 Pcs.
Connectors > Fuse switch disconnector
OS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB OS63GD12P switch fuse combines a mechanical load break switch with integrated fuse links to provide dependable circuit protection and isolation. These devices are commonly deployed in commercial and industrial electrical enclosures to safeguard downstream equipment from overcurrent conditions. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 1SCC311048M0201
- Environmental Product Declaration - EPD: 1SCC311195D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: 404806c1-078b-4690-8cbc-24a8380529a5 Finland
- Simplified SCIP: e270ea83-74f5-4e3f-9ae9-83e55369db8a Germany
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC311036M0212
- Mechanical Drawings: OS63GD12.igs
- Degree of Protection: acc. to IEC 60529 IP20
- Pollution Degree: 3
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311048M0201 |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 404806c1-078b-4690-8cbc-24a8380529a5 Finland |
| Simplified SCIP | e270ea83-74f5-4e3f-9ae9-83e55369db8a Germany |
| b1bd6e31-8be3-4909-a3f6-bbb1b8bcaa52 Poland | |
| 0c5c5794-5f2c-4b93-92c6-ccf3283f933c Sweden | |
| 5daf9a74-7a7f-41e8-87d7-7e1cae6f14fa Bulgaria | |
| 6b7459bd-ffe0-4e54-94e1-1e1399e65bfa Portugal | |
| d76eb359-e536-41ea-bad1-7647db07be24 Italy | |
| c9f79ad8-ad04-4da6-8640-cba7d7087a91 Croatia | |
| 8beed929-a1d6-4f5f-bd18-39cc7d1ea116 Sweden | |
| f4d28472-f279-4e6a-899e-b954a96e019a Poland | |
| 7157a28e-781f-48bb-b435-3fd30ffeab47 Estonia | |
| 41dac2ac-e2e7-4860-9b2d-b4fd8fe45808 Greece | |
| 51c68abd-b07f-42c5-96b5-e915b31a7202 Germany | |
| b9358701-e587-4487-8c41-364c4e77e4ae France | |
| 406a347d-1d56-41b7-bc16-a3aabc3a1f6d Hungary | |
| 7d551cbb-39fe-4484-a026-7d008bb3ef92 Spain | |
| 2c2b32bc-6555-48e9-b0f2-f899bcc2dd2d Belgium | |
| 880fae45-1738-421c-8822-567788be5648 Czech Republic | |
| c6d3ad15-9461-4619-83cb-05f471d5d91c Germany | |
| 59d1f6fd-d9cb-4389-a6e3-bf4ad2cfe9f5 Denmark | |
| 1dc126de-f8e8-4b07-b2da-327e4d05611a Poland | |
| 679a7c74-7498-446c-9d9f-86d7623d6658 France | |
| 7ce0fc52-22d6-4036-ae50-abb13bb6499d Germany | |
| c2d2f06d-de9c-4e54-acb1-1f9a9457cb1a Norway | |
| d6723f75-9c16-4724-85f9-d0c72f381151 Belgium | |
| f8d1f832-437b-451f-8606-16354b9cfae9 Hungary | |
| b6bc8fff-b7f2-4352-96c0-9e29df917541 Germany | |
| 09aea7da-4c6b-4d01-ba04-a4aacec17d9a Netherlands | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311036M0212 |
| Mechanical Drawings | OS63GD12.igs |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 112 mm |
| Product Net Height | 125 mm |
| Product Net Depth / Length | 121 mm |
| Product Net Weight | 1.18 kg |
| 2.6 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| 6.7 in | |
| Package Level 1 Depth / Length | 190 mm |
| 7.5 in | |
| Package Level 1 Height | 145 mm |
| 5.7 in | |
| Package Level 1 Gross Weight | 1.3 kg |
| 2.9 lb | |
| Package Level 1 EAN | 6417019476520 |
| Technical | |
| Cable Cross-Section | 2.5 ... 25 mm² |
| Connecting Capacity | Stranded 2.5 … 25 mm² |
| Flexible 2.5 … 25 mm² | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 63 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 63 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | NH000 |
| Fuse System | DIN |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Current 2 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 63 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 63 A |
| (690 V) 63 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 63 A |
| (690 V) 63 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 63 A |
| (690 V) 63 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 18.5 kW |
| (400 V) 30 kW | |
| (415 V) 30 kW | |
| (500 V) 37 kW | |
| (690 V) 55 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 12 (Between the Poles) |
| Terminal Type | Screw Terminals |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Wire Stripping Length | Main Circuit 12 mm |
| Main Circuit 0.47 in | |
| Technical UL/CSA | |
| Wire Stripping Length | Main Circuit 12 mm |
| Main Circuit 0.47 in | |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311208D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS32-63G_ 2016.pdf |
| Declaration of Conformity - CE | 1SCC311136D2703 |
| DNV GL Certificate | 1SCC311125D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3660331 |
| E-Number (Sweden) | 3172112 |
