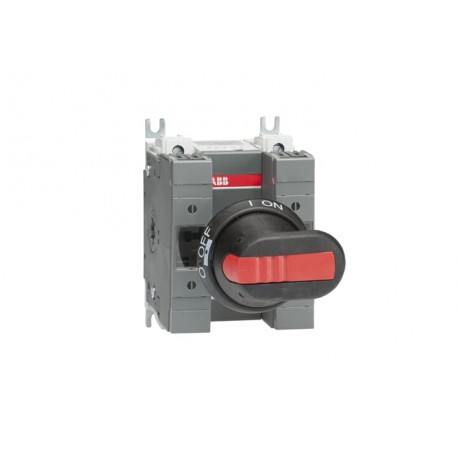

1SCA116711R1001 ABB Fuse switch OS63GD11P
1SCA116711R1001
116711
ABB
1 Pcs.
Connectors > Fuse switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The ABB fuse switch OS63GD11P is an integrated switching and protection device utilized to safeguard low-voltage circuits in commercial and industrial settings. It allows operators to manually disconnect power while housing fuses to interrupt fault currents.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 1SCC311048M0201
- Environmental Product Declaration - EPD: 1SCC311195D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: 4361bf6d-eaed-4c5b-b681-7b96bc529073 Finland
- Simplified SCIP: 988cda63-714c-46f2-9607-2165e8cc2804 Germany
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC311036M0212
- Mechanical Drawings: OS32-63G_D_B_11.stp
- Degree of Protection: acc. to IEC 60529 IP20
- Pollution Degree: 3
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311048M0201 |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 4361bf6d-eaed-4c5b-b681-7b96bc529073 Finland |
| Simplified SCIP | 988cda63-714c-46f2-9607-2165e8cc2804 Germany |
| ed729259-e1bb-4fa9-8113-b84da20c5ad7 Belgium | |
| 64ccda1c-e26f-48a1-9f54-a8eac2e13044 Spain | |
| 37f27ea4-21d2-4c9a-b99c-87deb14688ce Hungary | |
| 931f57a3-ac0b-4113-8f16-748325202f5e Estonia | |
| f4a5a476-f50f-439f-a9c7-bced5aeff40e France | |
| 1f8eb279-3807-4e8d-aa64-1d8aecaba70b Poland | |
| 98fcce28-33e4-48cc-9a32-ee17cd265c74 Sweden | |
| 6bef728f-6b0d-44dc-afea-223e3586ed42 Greece | |
| 77f663ce-f9fe-47e3-ac05-234d01278778 Bulgaria | |
| e6cb36e9-b50e-45bd-91d5-94758efa39f9 Hungary | |
| 613e8847-0a16-487b-9fcc-7c8dc2619922 Portugal | |
| b7926e30-c722-417f-9463-2c412c0931ae Netherlands | |
| 01f62570-4b48-4cd8-b335-70735e3e4f92 Poland | |
| dd5acc0e-66c4-4bf8-a166-b1c04753da8e Czech Republic | |
| e010b6b4-a848-47ff-bfd4-1d2b6cec8a5c Croatia | |
| 4747a1aa-dc5a-420b-88a9-b2bcc8c4cd37 Germany | |
| c2f796ed-eb90-4272-b478-012fefd6c39c Sweden | |
| 78c1136c-5c01-4566-b9fd-ad5d265a098c Germany | |
| 6380c921-6884-4832-8bc8-bf55f90a5840 Denmark | |
| 9e2d646f-b59b-401d-8a2d-dd3198a54304 Norway | |
| cb9e3fb2-bce4-4c8d-a34c-0f9f3669f85c Belgium | |
| f675fcfa-15e7-4357-90ba-4bc9f49aa224 Germany | |
| 681948f7-b219-4db3-ba1a-9af849647f7b Italy | |
| 559e4c8b-aa34-4478-a67c-da44c110f8a2 Germany | |
| b1adaecc-29f0-4445-96ee-ad7fd3943811 Poland | |
| 5c45b706-1e53-4c40-8520-f89095524d6d France | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311036M0212 |
| Mechanical Drawings | OS32-63G_D_B_11.stp |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 91 mm |
| Product Net Height | 112 mm |
| Product Net Depth / Length | 121 mm |
| Product Net Weight | 0.915 kg |
| 2.02 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| 6.7 in | |
| Package Level 1 Depth / Length | 190 mm |
| 7.5 in | |
| Package Level 1 Height | 145 mm |
| 5.7 in | |
| Package Level 1 Gross Weight | 1 kg |
| 2.2 lb | |
| Package Level 1 EAN | 6417019487083 |
| Technical | |
| Cable Cross-Section | 2.5 ... 25 mm² |
| Connecting Capacity | Stranded 2.5 … 25 mm² |
| Flexible 2.5 … 25 mm² | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 63 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 63 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | NH000 |
| Fuse System | DIN |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 2P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Current 2 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 63 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 63 A |
| (690 V) 63 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 63 A |
| (690 V) 63 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 63 A |
| (690 V) 63 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 18.5 kW |
| (400 V) 30 kW | |
| (415 V) 30 kW | |
| (500 V) 37 kW | |
| (690 V) 55 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 11 (Between the Poles) |
| Terminal Type | Screw Terminals |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Wire Stripping Length | Main Circuit 12 mm |
| Main Circuit 0.47 in | |
| Technical UL/CSA | |
| Wire Stripping Length | Main Circuit 12 mm |
| Main Circuit 0.47 in | |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311208D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS32-63G_ 2016.pdf |
| Declaration of Conformity - CE | 1SCC311136D2703 |
| DNV GL Certificate | 1SCC311125D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
