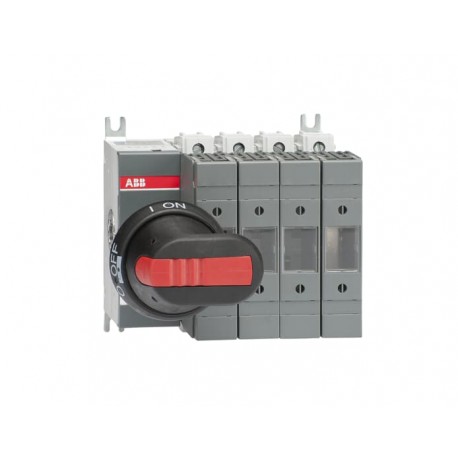

1SCA115209R1001 ABB OS63GD04N2P Switch fuse
1SCA115209R1001
115209
ABB
1 Pcs.
OS63GD04N2P Switch fuse
Fuse switch OS63GD04N2P
OS63GD04N2P SWITCH FUSE
Connectors > Fuse switch disconnector
OS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311048M0201 |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | e2d120aa-c053-45cc-8242-2b285cb0618e Finland |
| Simplified SCIP | 89e76d5a-b918-4c51-ab15-49830c5a785b Germany |
| 0555d710-77a9-4f96-80c1-aaea04f966b3 Poland | |
| ae87838c-68ef-45ee-ab52-58baf14b0e92 Bulgaria | |
| 1c013475-09d5-4f2c-9c85-149e0b991c48 Greece | |
| 2ba4d23d-5bec-4bb8-b19b-45840d3971a9 Portugal | |
| 061b0db6-0b84-43f6-8214-35a05d8b97c6 Germany | |
| d0292b17-a3da-4594-bf84-2cb63a9b717e Estonia | |
| 91a8abc1-f72b-4215-b835-786c27dc0d5a Belgium | |
| 3158786f-2f96-4f5e-8d56-012df8cc8ace Italy | |
| c7ced8b9-e8f1-43a3-b49a-82101dd788cf Poland | |
| 87bc6805-5b40-4bbc-9446-3ec8aa34b240 Norway | |
| 90cd635e-6221-4fcb-9bef-b72a29b6c54e Spain | |
| fa11673b-11e0-4798-af32-451637ae0c84 Sweden | |
| 2b57aa5d-9b0e-40f0-a498-4a911c62fc54 France | |
| c1564232-c7dc-4715-ba67-23af2c9eba55 Sweden | |
| 1965ece7-1278-4073-bd2b-11b9744220b3 France | |
| 5ad6499f-2d2b-472e-84ae-0cb624ac7d7c Hungary | |
| 662fc102-bb1e-4588-b393-594b7805cac3 Croatia | |
| 7f3d03c3-9083-47d1-887b-1c1974ebeaf8 Czech Republic | |
| 22adf7bb-15c9-4827-b374-223e4db3bd34 Germany | |
| 3b1c99b4-8b36-478f-abf1-83626522d97e Denmark | |
| a309b072-774f-4b46-859d-ea1848b02cd1 Germany | |
| f460aed7-61b2-49f4-bb89-bec43c8af48d Hungary | |
| fe7caaae-af76-4789-9af3-bf20138c555c Poland | |
| 7577507c-46d5-418c-bb61-8c34089b8058 Netherlands | |
| 5b88dee0-ce90-49af-a7f1-6d5810ca4e86 Belgium | |
| 05849c5b-a1f9-44cd-b194-a5c6046996ab Germany | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311036M0212 |
| Mechanical Drawings | OS63GD04.igs |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 136 mm |
| Product Net Height | 125 mm |
| Product Net Depth / Length | 121 mm |
| Product Net Weight | 1.37 kg |
| 3.02 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| 6.7 in | |
| Package Level 1 Depth / Length | 190 mm |
| 7.5 in | |
| Package Level 1 Height | 145 mm |
| 5.7 in | |
| Package Level 1 Gross Weight | 1.5 kg |
| 3.3 lb | |
| Package Level 1 EAN | 6417019476490 |
| Technical | |
| Cable Cross-Section | 2.5 ... 25 mm² |
| Connecting Capacity | Stranded 2.5 … 25 mm² |
| Flexible 2.5 … 25 mm² | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 63 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 63 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - With Solid Link |
| Fuse Size | NH000 |
| Fuse System | DIN |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Current 2 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 63 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 63 A |
| (690 V) 63 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 63 A |
| (690 V) 63 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 63 A |
| (690 V) 63 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 18.5 kW |
| (400 V) 30 kW | |
| (415 V) 30 kW | |
| (500 V) 37 kW | |
| (690 V) 55 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 04 (Left Side) |
| Terminal Type | Screw Terminals |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Wire Stripping Length | Main Circuit 12 mm |
| Main Circuit 0.47 in | |
| Technical UL/CSA | |
| Wire Stripping Length | Main Circuit 12 mm |
| Main Circuit 0.47 in | |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311208D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS32-63G_ 2016.pdf |
| Declaration of Conformity - CE | 1SCC311136D2703 |
| DNV GL Certificate | 1SCC311125D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3660238 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as safety switch (EF006985) | Yes |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated permanent current Iu (EF001389) | 63 A |
| Rated operation power at AC-23, 400 V (EF007027) | 55 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 80 kA |
| Rated short-time withstand current lcw (EF007050) | 2.5 kA |
| Suitable for fuses (EF006692) | NH000 |
| Number of poles (EF001391) | 4 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Cable entry (EF000537) | Other |
| Equipped with connectors (EF011696) | Yes |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | No |
| Suitable for busbar mounting (EF007259) | Yes |
| Type of control element (EF006976) | Long turning handle |
| Position control element (EF009410) | Left |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Version as emergency stop installation (EF006959) | No |
