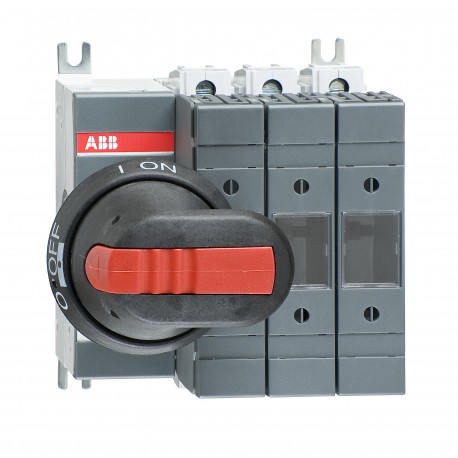

ABB 1SCA115207R1001 1SCA115207R1001 ABB OS63GD03P Switch fuse View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA115207R1001 ABB OS63GD03P Switch fuse

1SCA115207R1001

115207

ABB

1 Pcs.

OS63GD03P Switch fuse Fuse switch OS63GD03P OS63GD03P SWITCH FUSE

Connectors > Fuse switch disconnector
OS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions1SCC311048M0201
Environmental Product Declaration - EPD1SCC311195D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP15a93889-0e81-4e97-97bc-6fc93673cb59 Finland
Simplified SCIPdba65f8d-6f45-4849-9e81-2cb3731995a6 Germany
86683a3b-96f6-46de-b118-b29ed8252e46 Poland
b349d11a-acb8-4698-b37b-8be69a91f659 Germany
dcccb2d1-dd60-4c87-8bdf-924245e10745 Estonia
de6eab5b-1390-491a-829a-58920f9ce284 Portugal
9a73ba2e-43d7-42bb-b7a2-29e9dccd0859 Greece
c067c3c7-3763-4308-824f-6e0533d40b13 Belgium
9d4117b0-5dbd-48a7-99bd-e7c1cbe601a8 Italy
8171b840-2960-42f9-9c20-049152a3f774 Poland
cf15aaea-24ec-493a-a4be-b5365b646729 Croatia
f885c043-f6ec-44e4-bf43-530edc3c93e8 Norway
4dc03c93-ba72-496d-9f24-5a138483934f Sweden
a222497b-b2df-4cd2-8b79-6cab618b3b6b Bulgaria
0b072db8-978e-4e37-af35-01d12e059010 Spain
d4d64afd-2b44-4ede-bfec-1a7fea885365 Sweden
9dda95c2-2b39-4ef7-ad0e-e73e84d4616d France
60c21e07-0f18-492e-a673-a6beb77cb686 France
6b09f1ff-f4ca-446f-9a36-e7a0079bda57 Hungary
23a14b2d-a124-4d5e-9406-ff3b165dbceb Denmark
a1d4f0ca-3ef5-48b0-aeeb-f5dfc7e1e774 Czech Republic
4e0d9861-608e-4e15-af95-994f46c9db7b Germany
21e8773b-11b5-4e1f-98b0-1ca097bd93e9 Germany
543f2b96-cd93-4dc9-80b2-a6b089668d75 Poland
d0c3e5ed-6675-4f6c-b402-4aecbfb3071b Hungary
bedc835b-ff3f-4587-8c65-e80a97e3c23a Netherlands
edeacee2-e2a5-48a1-8cf0-4f1beecbed46 Belgium
c3403cb8-47c6-45ba-b0dd-8a55fd1575c2 Germany
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC311013C0201
Instructions and Manuals1SCC311036M0212
Mechanical DrawingsOS63GD03.igs
Environmental Product Declaration - EPD1SCC311195D0201
Environmental
Degree of Protectionacc. to IEC 60529 IP20
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width112 mm
Product Net Height125 mm
Product Net Depth / Length121 mm
Product Net Weight1.18 kg
2.6 lb
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width170 mm
6.7 in
Package Level 1 Depth / Length190 mm
7.5 in
Package Level 1 Height145 mm
5.7 in
Package Level 1 Gross Weight1.3 kg
2.9 lb
Package Level 1 EAN6417019476476
Technical
Cable Cross-Section2.5 ... 25 mm²
Connecting CapacityStranded 2.5 … 25 mm²
Flexible 2.5 … 25 mm²
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 63 A
Conventional Thermal Current (Ithe)Fully Enclosed 63 A
Degree of Protectionacc. to IEC 60529 IP20
Fuse SizeNH000
Fuse SystemDIN
Handle TypePistol handle
Mounting TypeBase mounting
Number of Poles3P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out, Bottom In - Top Out
Power Lossat Rated Current 2 W
Rated Conditional Short-Circuit Current (Inc)(500 V) 100 kA
(690 V) 80 kA
Rated Current (In)Main Circuit 63 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-21A (Ie)(500 V) 63 A
(690 V) 63 A
Rated Operational Current AC-22A (Ie)(500 V) 63 A
(690 V) 63 A
Rated Operational Current AC-23A (Ie)(500 V) 63 A
(690 V) 63 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 18.5 kW
(400 V) 30 kW
(415 V) 30 kW
(500 V) 37 kW
(690 V) 55 kW
Rated Operational VoltageMain Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 2.5 kiloampere rms
Recommended Screw DriverMain Circuit Hexagon 4
StandardsIEC 60947-3
Switches Operating Mechanism03 (Left Side)
Terminal TypeScrew Terminals
Tightening Torque3 N·m
4 N·m
Wire Stripping LengthMain Circuit 12 mm
Main Circuit 0.47 in
Technical UL/CSA
Wire Stripping LengthMain Circuit 12 mm
Main Circuit 0.47 in
Recommended Screw DriverMain Circuit Hexagon 4
Tightening Torque3 N·m
4 N·m
Certificates and Declarations
A2L Certificate – IEC1SCC311208D0201
ATEX CertificateNo certification needed
CCC CertificateCCC OS32-63G_ 2016.pdf
Declaration of Conformity - CE1SCC311136D2703
DNV GL Certificate1SCC311125D0203
UL CertificateNo certification needed
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC001040 - Fuse switch disconnector
ETIM 10EC001040 - Fuse switch disconnector
UNSPSC39122233
IDEA Granular Category Code (IGCC)5291 >> Fuse switch disconnector
eClassV11.1 : 27371401
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3660213
