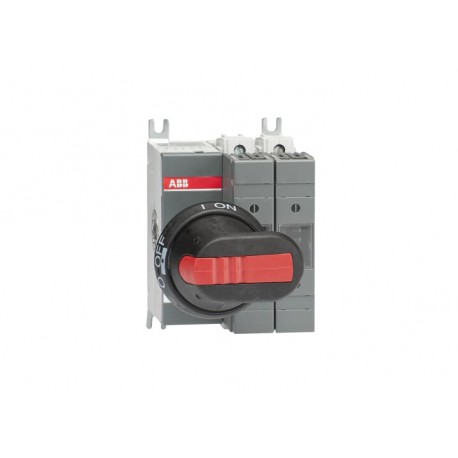

1SCA116715R1001 ABB Fuse switch OS63GD02P
1SCA116715R1001
116715
ABB
1 Pcs.
Fuse switch OS63GD02P
OS63GD02P SWITCH FUSE
Connectors > Fuse switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Manufactured by Abb, the 1SCA116715R1001 ABB Fuse switch OS63GD02P serves as a compact enclosure-mounted device utilized for isolating electrical loads and safeguarding circuits against fault currents.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 1SCC311048M0201
- Environmental Product Declaration - EPD: 1SCC311195D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: 008a8873-967b-4f0c-af24-a3c242b46594 Finland
- Simplified SCIP: 11c0a3d9-be84-4b72-b111-8be567cf7b5a Germany
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC311036M0212
- Mechanical Drawings: OS63GD02.igs
- Degree of Protection: acc. to IEC 60529 IP20
- Pollution Degree: 3
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311048M0201 |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 008a8873-967b-4f0c-af24-a3c242b46594 Finland |
| Simplified SCIP | 11c0a3d9-be84-4b72-b111-8be567cf7b5a Germany |
| 3ea2d577-3d37-498e-ba17-04ec8b497a96 Estonia | |
| f8b6cf52-d51d-497a-b1bf-85a5064be01b Portugal | |
| 8db044de-4b8e-42e0-87f2-2323834fcaee Greece | |
| cfc6da0f-de24-4d50-ad97-02ac3defdba9 Belgium | |
| 09a2bb68-ae81-4583-baf1-d38930ca219f Italy | |
| 597a1711-6079-42e2-a5a7-ca9bcd0f52dd Bulgaria | |
| 15efd227-7c33-4125-905b-4efab6d58b81 Poland | |
| 3d092957-43ee-4b0f-bcf3-2c755d78b964 Croatia | |
| c21a491e-5269-4fae-955a-e8e18f477aa8 Belgium | |
| 62616ed7-e3ad-4c16-9b53-c74bb851adb0 Spain | |
| 3003477b-8d14-418e-a3b2-d6fb07a53ea1 Sweden | |
| 5e0c9741-4a00-4f5c-90a8-639a78f0a759 Poland | |
| 557c764b-a096-439f-99d0-fa3b4937f13a Germany | |
| b896d985-e30b-424b-9947-95d62753701e Czech Republic | |
| be4b0b58-c567-4e6f-ae01-b19cc7f11b9d Hungary | |
| 2c375dd6-4b94-4c16-9823-a70416ca0f09 Denmark | |
| fa4b861e-85dc-4f77-8d45-fae8d5ad07b5 Germany | |
| dc433641-d729-45e3-9ede-6ea572ee7b73 Germany | |
| 4c719ce4-a15a-464c-a671-3e55b5e6fd46 Germany | |
| a9fcb3ee-3aa4-46af-9385-2187197d8d69 Norway | |
| 1cd1222e-657b-49b7-bcc5-11054e450318 Hungary | |
| d3f98985-2a68-4841-8e06-355b5d477384 Netherlands | |
| c23cc9aa-b2cd-4bc5-b71b-e0089872aab5 Poland | |
| c6d04c66-c06f-464a-8cac-65ce0a5fe6aa France | |
| 49f1143f-4ab7-4314-a717-e757baa84872 France | |
| f57689a3-27cd-4235-89b8-789b5994affc Sweden | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311036M0212 |
| Mechanical Drawings | OS63GD02.igs |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 88 mm |
| Product Net Height | 112 mm |
| Product Net Depth / Length | 121 mm |
| Product Net Weight | 0.915 kg |
| 2.02 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| 6.7 in | |
| Package Level 1 Depth / Length | 190 mm |
| 7.5 in | |
| Package Level 1 Height | 145 mm |
| 5.7 in | |
| Package Level 1 Gross Weight | 1 kg |
| 2.2 lb | |
| Package Level 1 EAN | 6417019488028 |
| Technical | |
| Cable Cross-Section | 2.5 ... 25 mm² |
| Connecting Capacity | Stranded 2.5 … 25 mm² |
| Flexible 2.5 … 25 mm² | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 63 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 63 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | NH000 |
| Fuse System | DIN |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 2P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Current 2 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 63 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 63 A |
| (690 V) 63 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 63 A |
| (690 V) 63 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 63 A |
| (690 V) 63 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 18.5 kW |
| (400 V) 30 kW | |
| (415 V) 30 kW | |
| (500 V) 37 kW | |
| (690 V) 55 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 02 (Left Side) |
| Terminal Type | Screw Terminals |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Wire Stripping Length | Main Circuit 12 mm |
| Main Circuit 0.47 in | |
| Technical UL/CSA | |
| Wire Stripping Length | Main Circuit 12 mm |
| Main Circuit 0.47 in | |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311208D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS32-63G_ 2016.pdf |
| Declaration of Conformity - CE | 1SCC311136D2703 |
| DNV GL Certificate | 1SCC311125D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
