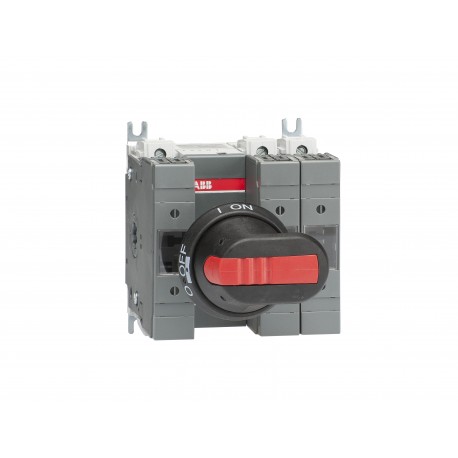

OS63GB12P Switch fuse
Fuse switch OS63GB12P
OS63GB12P SWITCH FUSE
Connectors > Fuse switch disconnector
OS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB switch fuse OS63GB12P provides compact circuit interruption and overcurrent protection for demanding industrial automation panels. These devices safely accommodate fuses while allowing operators to manually disconnect downstream equipment.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 1SCC311048M0201
- Environmental Product Declaration - EPD: 1SCC311195D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: dad3c90a-54b7-42a6-b14b-616ef4a9e979 Finland
- Simplified SCIP: de867ed8-80cf-46da-b397-3d5389236d07 Germany
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC311036M0212
- Mechanical Drawings: OS63GB_F_12.igs
- Environmental Product Declaration - EPD: 1SCC311195D0201
- Degree of Protection: acc. to IEC 60529 IP20
- Pollution Degree: 3
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311048M0201 |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | dad3c90a-54b7-42a6-b14b-616ef4a9e979 Finland |
| Simplified SCIP | de867ed8-80cf-46da-b397-3d5389236d07 Germany |
| 2d5c5a38-f2d0-4b5a-aa57-fc5605545480 Greece | |
| 3a0c9763-8d16-48ca-9d87-7c54c5a69df1 Estonia | |
| 25cfa4e0-c67d-44ef-ba1c-30a6f1979df8 Germany | |
| 5242ce55-feb6-45a9-87a3-17212217f066 Norway | |
| 60ab1baa-4914-4ee4-8b45-68dc5d7c32d6 Italy | |
| 90f64426-9d99-44b0-8406-faa99dcfc91b Bulgaria | |
| fc2c360a-9c9d-40d0-a59e-3003dda33962 Poland | |
| e34c93a7-04e0-48ac-8283-06582a416b35 Croatia | |
| 363acdbc-c4e2-4264-b635-0fffe669f8c6 Poland | |
| abd1afa5-5814-4081-abaa-44c6d973dc6f Poland | |
| 6bf45e14-628c-4cc2-9d8d-9405b574a305 Sweden | |
| a65ed150-e111-4b13-81e5-62b7c144628c France | |
| 905d3be3-9323-42d0-a796-b38e7ee5e795 Sweden | |
| e4fbc696-14da-45ba-8426-068d5f4b6939 Portugal | |
| f787b9e1-ade5-4a1e-beed-22957a08813a Hungary | |
| 42a48779-5514-4948-b856-6c4c88574985 Czech Republic | |
| f6a15156-0a74-49cd-addf-614c290513ea Denmark | |
| 7abeb7b5-1191-4c96-941d-ecf70a13c850 Germany | |
| c416f63b-dbfe-4571-a371-83c86070da8f Germany | |
| cf4bf527-ffdd-432e-8509-c6eb825b1fb3 Belgium | |
| 51918931-306c-4272-baa4-027731e007a7 Hungary | |
| 2638c3fe-2e7c-40bd-bb12-cf37db36562f Germany | |
| f8e26839-034c-4c8e-946f-cbec7e2666a5 Netherlands | |
| 2b75b440-e22d-4898-985b-0de9dc9b3f50 Belgium | |
| 6a4cb87b-11b7-498f-b08c-315a090d4580 Spain | |
| cba950fc-638f-41ec-8a71-d271b533c665 France | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311036M0212 |
| Mechanical Drawings | OS63GB_F_12.igs |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 112 mm |
| Product Net Height | 125 mm |
| Product Net Depth / Length | 109 mm |
| Product Net Weight | 1.18 kg |
| 2.6 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| 6.7 in | |
| Package Level 1 Depth / Length | 190 mm |
| 7.5 in | |
| Package Level 1 Height | 145 mm |
| 5.7 in | |
| Package Level 1 Gross Weight | 1.3 kg |
| 2.9 lb | |
| Package Level 1 EAN | 6417019477039 |
| Technical | |
| Cable Cross-Section | 2.5 ... 25 mm² |
| Connecting Capacity | Stranded 2.5 … 25 mm² |
| Flexible 2.5 … 25 mm² | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 63 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 63 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | A2-A3 |
| Fuse System | British Standard |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Current 2 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 63 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 63 A |
| (690 V) 63 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 63 A |
| (690 V) 63 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 63 A |
| (690 V) 63 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 18.5 kW |
| (400 V) 30 kW | |
| (415 V) 30 kW | |
| (500 V) 37 kW | |
| (690 V) 55 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 12 (Between the Poles) |
| Terminal Type | Screw Terminals |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Wire Stripping Length | Main Circuit 12 mm |
| Main Circuit 0.47 in | |
| Technical UL/CSA | |
| Wire Stripping Length | Main Circuit 12 mm |
| Main Circuit 0.47 in | |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311208D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS32-63G_ 2016.pdf |
| Declaration of Conformity - CE | 1SCC311136D2703 |
| DNV GL Certificate | 1SCC311125D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
