View larger
Images are for illustrative purposes only. Please refer to data sheet for details

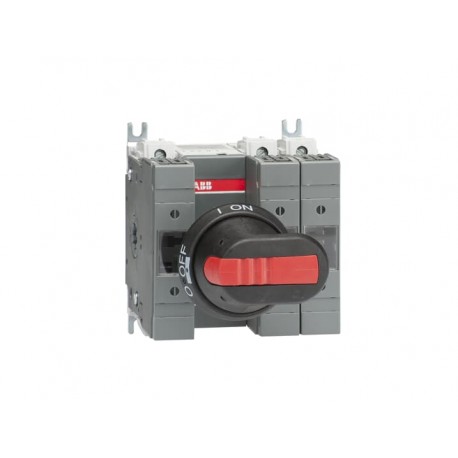

1SCA115553R1001 ABB Fuse switch OS50GF12P
1SCA115553R1001
115553
ABB
1 Pcs.
Fuse switch OS50GF12P
OS50GF12P SWITCH FUSE
Connectors > Fuse switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311048M0201 |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 6061b39e-0e9c-467a-aafd-a325d04ad75d Finland |
| Simplified SCIP | 55abf71b-e02b-4456-9832-9bb0ace7fc0d Germany |
| 2ad63c71-77bf-48c5-a8cc-6b8fbf37fc2f Italy | |
| fcbc9353-a130-4d23-a343-eaf7426697d3 Poland | |
| 88c70119-57e1-4b13-913e-c5b32d1f20b5 Germany | |
| 2a959696-377e-49bc-8b8a-66e56dda0d9c Denmark | |
| 386fb3d2-dae6-4f02-ad7d-36eaf60d80e7 Spain | |
| 45aa8485-a00c-497e-a591-f5e985a515dc Belgium | |
| 8eef2240-676f-4226-b9de-79072bec847f Sweden | |
| 3f639da4-e971-4b32-80ab-e319113912f6 Greece | |
| 765c8408-f98e-424b-9b56-a0677c9a9105 Poland | |
| db7faa5a-aed1-42df-b0c2-700e1e8cae6d France | |
| a112754f-19cb-4686-8bdf-49bf4186bed9 Sweden | |
| da59aa11-92af-4176-8ffb-c948b7b1c551 Bulgaria | |
| ae2f1703-f59b-43f6-a1fc-da170c1a9174 Estonia | |
| 884ed42a-4d26-4928-8de0-c86d902a0a65 Hungary | |
| fc17f1ad-919b-4d70-a79e-8a13ff11a3ae Netherlands | |
| 4a3fbcbc-8dfd-449c-b1ce-7d17c2a3e468 Czech Republic | |
| 15252903-d022-48e8-9610-995227006d14 Croatia | |
| 7e2a63e5-6389-4b44-be14-5e73445e12a5 Portugal | |
| 5e0830a5-89b4-461c-956a-9402ae6ae13d Poland | |
| 4bd569f3-34be-42e3-9319-49f99da2a667 Germany | |
| ad9d2b88-1115-4e6d-ae52-da0a0d6c3f48 Germany | |
| 4a2d268c-887f-49d9-a5f4-0f5be5fa3e1d Germany | |
| 8db4ea5b-0656-4dad-8f31-d8e16363c545 Belgium | |
| 866c9b88-5b71-4134-b35e-41535d8b4708 Norway | |
| cefd9e31-2b0e-4ea3-9aa1-c3fb813df824 Hungary | |
| 1b494c57-7796-4272-bab5-a8b52d23eb01 France | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311036M0212 |
| Mechanical Drawings | OS63GB_F_12.igs |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Environmental | |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 136 mm |
| Product Net Height | 125 mm |
| Product Net Depth / Length | 109 mm |
| Product Net Weight | 1.2 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| 6.7 in | |
| Package Level 1 Depth / Length | 190 mm |
| 7.5 in | |
| Package Level 1 Height | 145 mm |
| 5.7 in | |
| Package Level 1 Gross Weight | 1.6 kg |
| 3.5 lb | |
| Package Level 1 EAN | 6417019478821 |
| Technical | |
| Cable Cross-Section | 2.5 ... 25 mm² |
| Connecting Capacity | Stranded 2.5 … 25 mm² |
| Flexible 2.5 … 25 mm² | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 50 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 50 A |
| Fuse Size | 14x51 |
| Fuse System | NFC |
| Handle Type | Pistol handle and shaft included |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 2.5 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA |
| Rated Current (In) | Main Circuit 50 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 50 A |
| (690 V) 50 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 50 A |
| (690 V) 50 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 50 A |
| (690 V) 50 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 11 kW |
| (400 V) 22 kW | |
| (415 V) 22 kW | |
| (500 V) 30 kW | |
| (690 V) 37 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 12 (Between the Poles) |
| Terminal Type | Screw Terminals |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Wire Stripping Length | Main Circuit 12 mm |
| Main Circuit 0.47 in | |
| Technical UL/CSA | |
| Wire Stripping Length | Main Circuit 12 mm |
| Main Circuit 0.47 in | |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311208D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS32-63G_ 2016.pdf |
| Declaration of Conformity - CE | 1SCC311136D2703 |
| DNV GL Certificate | 1SCC311125D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as safety switch (EF006985) | Yes |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated permanent current Iu (EF001389) | 50 A |
| Rated operation power at AC-23, 400 V (EF007027) | 37 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 80 kA |
| Rated short-time withstand current lcw (EF007050) | 2.5 kA |
| Suitable for fuses (EF006692) | 14x51 mm |
| Number of poles (EF001391) | 3 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Cable entry (EF000537) | Other |
| Equipped with connectors (EF011696) | Yes |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | No |
| Suitable for busbar mounting (EF007259) | Yes |
| Type of control element (EF006976) | Long turning handle |
| Position control element (EF009410) | Front |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Version as emergency stop installation (EF006959) | No |
