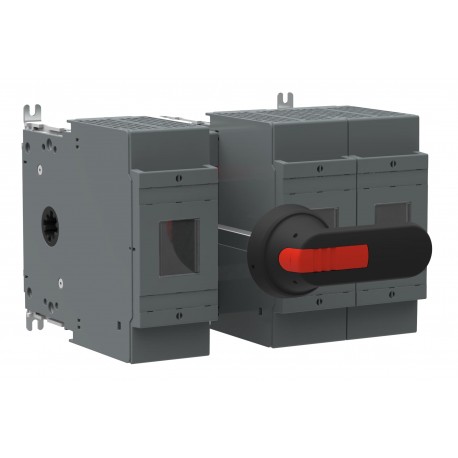

ABB 1SCA102280R1001 1SCA102280R1001 ABB Fuse switch OS400D12BBP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA102280R1001 ABB Fuse switch OS400D12BBP

1SCA102280R1001

102280

ABB

1 Pcs.

Fuse switch OS400D12BBP OS400D12BBP SPECIAL CONNECTED SWITCH FUSE

Connectors > Fuse switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Circular Value
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Environmental Product Declaration - EPD1SCC311198D0201
Group Waste to Landfill TargetUL 2799 Zero Waste To Landfill Validation available
REACH Declaration1SCC011021D0201
RoHS Information1SCC011020D0201
Toxic Substances Control Act - TSCA1SCC011025D0201
Eco Transparency
Environmental Product Declaration - EPD1SCC311198D0201
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country of OriginFinland (FI)
Popular Downloads
Data Sheet, Technical Information1SCC311013C0201
Instructions and Manuals1SCC311015M0215
Environmental Product Declaration - EPD1SCC311198D0201
Dimensions
Product Net Width255 mm
Product Net Height194 mm
Product Net Depth / Length255 mm
Product Net Weight6.5 kg
Technical
Rated Operational Current AC-21A (Ie)(500 V) 400 A
(690 V) 400 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 400 A
(500 V) 400 A
(690 V) 400 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 400 A
(500 V) 400 A
(690 V) 400 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 132 kW
(400 V) 220 kW
(415 V) 230 kW
(500 V) 280 kW
(690 V) 400 kW
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 400 A
Conventional Thermal Current (Ithe)Fully Enclosed 400 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational VoltageMain Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 14 kiloampere rms
Rated Conditional Short-Circuit Current (Inc)(690 V) 80 kA
Power Lossat Rated Operating Conditions per Pole 30 W
Pollution Degree3
Handle TypePistol handle and shaft included
Switches Operating Mechanism12 (Between the Poles)
Position of Line TerminalsBack In - Back Out
Fuse SizeNH0
NH1
NH2
Fuse SystemDIN
Operating ModeFront Operated
StandardsIEC 60947-3
Mounting TypeBase mounting
Number of Poles3
Terminal TypeLug terminals
Terminal Width25 mm
Tightening Torque30 ... 44 N·m
Rated Current (In)Main Circuit 400 A
Technical UL/CSA
Tightening Torque30 ... 44 N·m
Environmental
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC011025D0201
Certificates and Declarations
A2L Certificate – IEC1SCC311209D0201
Declaration of Conformity - CE1SCC311122D2702
DNV GL Certificate1SCC311132D0201
REACH Declaration1SCC011021D0201
UL CertificateNo certification needed
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width265 mm
Package Level 1 Depth / Length326 mm
Package Level 1 Height295 mm
Package Level 1 Gross Weight6.5 kg
Package Level 1 EAN6417019370675
Classifications
Object Classification CodeQ
ETIM 7EC001040 - Fuse switch disconnector
ETIM 8EC001040 - Fuse switch disconnector
ETIM 9EC001040 - Fuse switch disconnector
UNSPSC39122233
IDEA Granular Category Code (IGCC)5291 >> Fuse switch disconnector
eClassV11.1 : 27371401
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
