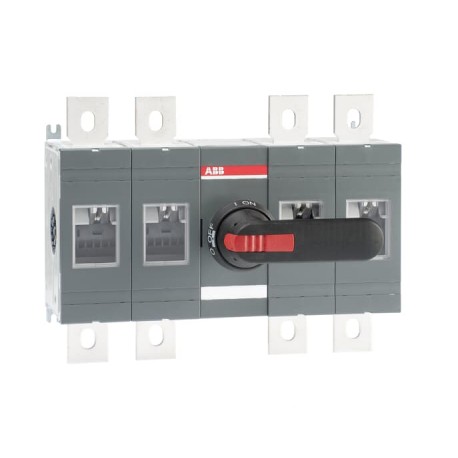

ABB 1SCA022753R7110 1SCA022753R7110 ABB OS400D04FP Switch fuse View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA022753R7110 ABB OS400D04FP Switch fuse

1SCA022753R7110

022753

ABB

1 Pcs.

OS400D04FP Switch fuse Fuse switch OS400D04FP OS400D04FP SWITCH FUSE

Connectors > Fuse switch disconnector
OS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 1SCA022753R7110 ABB OS400D04FP Switch fuse is engineered by Abb to provide dependable circuit disconnection combined with high-capacity fuse protection. These components are essential in primary power distribution networks to isolate equipment securely during maintenance operations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Environmental Product Declaration - EPD: 1SCC311198D0201
  • Group Waste to Landfill Target: UL 2799 Zero Waste To Landfill Validation available
  • REACH Declaration: 1SCC011021D0201
  • RoHS Information: 1SCC011020D0201
  • Toxic Substances Control Act - TSCA: 1SCC011025D0201
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85365080
  • Country of Origin: Finland (FI)
  • Data Sheet, Technical Information: 1SCC311013C0201
  • Instructions and Manuals: 1SCC311015M0215
  • Product Net Width: 319 mm
  • Product Net Height: 230 mm
  • Product Net Depth / Length: 193 mm

More info

▲
Circular Value
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Environmental Product Declaration - EPD1SCC311198D0201
Group Waste to Landfill TargetUL 2799 Zero Waste To Landfill Validation available
REACH Declaration1SCC011021D0201
RoHS Information1SCC011020D0201
Toxic Substances Control Act - TSCA1SCC011025D0201
Eco Transparency
Environmental Product Declaration - EPD1SCC311198D0201
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country of OriginFinland (FI)
Popular Downloads
Data Sheet, Technical Information1SCC311013C0201
Instructions and Manuals1SCC311015M0215
Environmental Product Declaration - EPD1SCC311198D0201
Dimensions
Product Net Width319 mm
Product Net Height230 mm
Product Net Depth / Length193 mm
Product Net Weight8.41 kg
18.54 lb
Technical
Rated Operational Current AC-21A (Ie)(500 V) 400 A
(690 V) 400 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 400 A
(500 V) 400 A
(690 V) 400 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 400 A
(500 V) 400 A
(690 V) 400 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 132 kW
(400 V) 220 kW
(415 V) 230 kW
(500 V) 280 kW
(690 V) 400 kW
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 400 A
Conventional Thermal Current (Ithe)Fully Enclosed 400 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational VoltageMain Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 14 kiloampere rms
Rated Conditional Short-Circuit Current (Inc)(690 V) 80 kA
Power Lossat Rated Operating Conditions per Pole 30 W
Pollution Degree3
Handle TypePistol handle and shaft included
Fourth Pole TypeSwitched - Fusible Pole
Switches Operating Mechanism04 (Left Side)
Position of Line TerminalsTop In - Bottom Out, Bottom In - Top Out
Fuse SizeNH0
NH1
NH2
Fuse SystemDIN
Operating ModeFront Operated
StandardsIEC 60947-3
Mounting TypeBase mounting
Number of Poles4
Terminal TypeLug terminals
Terminal Width25 mm
Tightening Torque30 ... 44 N·m
Rated Current (In)Main Circuit 400 A
Technical UL/CSA
Tightening Torque30 ... 44 N·m
Environmental
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC011025D0201
Certificates and Declarations
A2L Certificate – IEC1SCC311209D0201
CCC CertificateCCC OS315-400 2016
Declaration of Conformity - CE1SCC311099D2704
DNV GL Certificate1SCC311131D0203
REACH Declaration1SCC011021D0201
UL CertificateNo certification needed
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width240 mm
9.45 in
Package Level 1 Depth / Length335 mm
13.19 in
Package Level 1 Height206 mm
8.11 in
Package Level 1 Gross Weight8.81 kg
19.42 lb
Package Level 1 EAN6417019245300
Classifications
Object Classification CodeQ
ETIM 7EC001040 - Fuse switch disconnector
ETIM 8EC001040 - Fuse switch disconnector
ETIM 9EC001040 - Fuse switch disconnector
UNSPSC39122233
IDEA Granular Category Code (IGCC)5291 >> Fuse switch disconnector
eClassV11.1 : 27371401
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3660738

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
