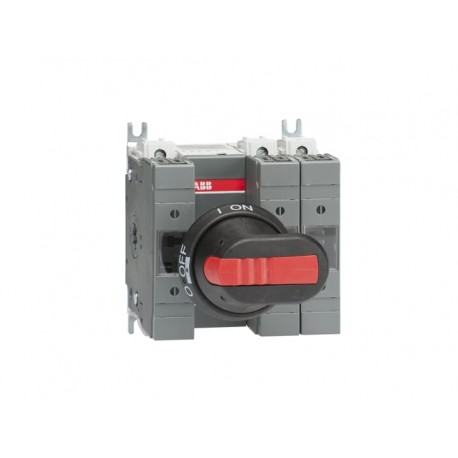

1SCA114581R1001 ABB OS32GD12P Switch fuse
1SCA114581R1001
114581
ABB
1 Pcs.
Connectors > Fuse switch disconnector
OS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The ABB 1SCA114581R1001 OS32GD12P switch fuse is a compact industrial component engineered to interrupt load currents safely while providing integrated fuse protection. Panel builders deploy these devices within low-voltage switchboards to protect downstream machinery and facilitate secure manual disconnection. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 1SCC311048M0201
- Environmental Product Declaration - EPD: 1SCC311195D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: acb0f632-675b-4e8f-b907-06d7f0adc05b Finland
- Simplified SCIP: 1bd81081-74d4-4885-a291-ec3d84a78a42 Germany
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC311036M0212
- Mechanical Drawings: OS63GD12.igs
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311048M0201 |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | acb0f632-675b-4e8f-b907-06d7f0adc05b Finland |
| Simplified SCIP | 1bd81081-74d4-4885-a291-ec3d84a78a42 Germany |
| d0f50824-0959-4cb9-9923-707ab4a5dab8 Poland | |
| f20ba34d-532d-4380-99bb-4a27f7f681eb Hungary | |
| a8899f9d-61f5-4376-ad17-b12994271215 Germany | |
| 4928ff74-3cb0-4a0d-a648-d113fada731f Sweden | |
| 3efbd972-35ff-410d-bf26-68f2f964571e France | |
| 22b4f0ed-ca91-414a-bced-7e3fd02b737e Estonia | |
| f1d904e9-bea8-463c-b8b2-297af68a1f0e Greece | |
| 24e02433-58fe-42d7-a6ec-4a21486d7ea5 Bulgaria | |
| eca9b9e2-d2f0-4f5d-9046-afb4ed0c64ba Italy | |
| c0520d72-23e7-4ed5-9921-9b846104a7b0 Belgium | |
| 84b9b7db-3a79-419a-8419-b118fdd1dea7 Poland | |
| 87947f24-3a52-4849-8ef3-45b144712d6b Belgium | |
| 2fb51fbf-ae7c-4b10-980b-fd3e336b98fd Spain | |
| 93c204e5-0fd5-4729-9402-81eab1afe47c Sweden | |
| 80444c74-4986-4d12-b5a1-b0a74713f237 Poland | |
| 7e47d934-097d-4936-8ec8-a4210681d05a Germany | |
| e5b228e0-5147-477e-97d3-b35a5c4d4499 Portugal | |
| 3c229bf8-fae4-4112-b7f1-1492b2d9f6ce Hungary | |
| c434ca43-8cfb-4452-86d1-e56c56df89b3 Germany | |
| f93b572a-b217-4fee-9703-faf3c92e3df9 Denmark | |
| e187b406-99bb-4371-a623-bcc6adcb1193 Croatia | |
| b6f01eef-5fb4-4fac-ba8d-f1d206c3266f Germany | |
| 7857a74e-0f6d-435e-9212-0b6d6e0a6bfc Czech Republic | |
| 35dd29f8-d412-4906-9b98-e859c16ac7b2 France | |
| ded603e3-fa08-4aef-8be4-56105b018d9b Norway | |
| 58c26069-3004-434c-b2a3-db753b33dbc7 Netherlands | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311036M0212 |
| Mechanical Drawings | OS63GD12.igs |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Environmental | |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 112 mm |
| Product Net Height | 125 mm |
| Product Net Depth / Length | 121 mm |
| Product Net Weight | 1.18 kg |
| 2.6 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| 6.7 in | |
| Package Level 1 Depth / Length | 190 mm |
| 7.5 in | |
| Package Level 1 Height | 145 mm |
| 5.7 in | |
| Package Level 1 Gross Weight | 1.3 kg |
| 2.9 lb | |
| Package Level 1 EAN | 6417019467986 |
| Technical | |
| Cable Cross-Section | 2.5 ... 25 mm² |
| Connecting Capacity | Stranded 2.5 … 25 mm² |
| Flexible 2.5 … 25 mm² | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 32 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 32 A |
| Fuse Size | NH000 |
| Fuse System | DIN |
| Handle Type | Pistol handle and shaft included |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 1 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA |
| Rated Current (In) | Main Circuit 32 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 32 A |
| (690 V) 32 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 32 A |
| (690 V) 32 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 32 A |
| (690 V) 32 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 7.5 kW |
| (400 V) 15 kW | |
| (415 V) 15 kW | |
| (500 V) 18.5 kW | |
| (690 V) 22 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 12 (Between the Poles) |
| Terminal Type | Screw Terminals |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Wire Stripping Length | Main Circuit 12 mm |
| Main Circuit 0.47 in | |
| Technical UL/CSA | |
| Wire Stripping Length | Main Circuit 12 mm |
| Main Circuit 0.47 in | |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311208D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS32-63G_ 2016.pdf |
| Declaration of Conformity - CE | 1SCC311136D2703 |
| DNV GL Certificate | 1SCC311125D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3660323 |
| E-Number (Sweden) | 3172110 |
