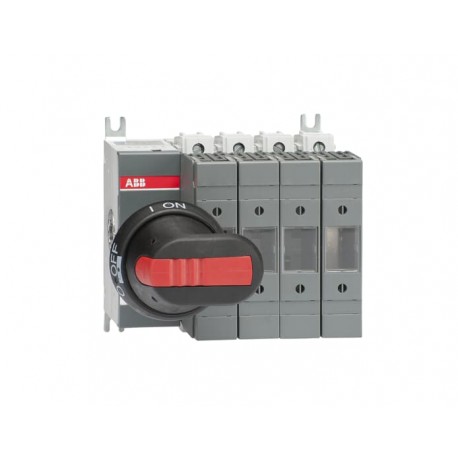

1SCA115193R1001 ABB OS32GD04N2P Switch fuse
1SCA115193R1001
115193
ABB
1 Pcs.
Connectors > Fuse switch disconnector
OS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Manufactured by Abb, the 1SCA115193R1001 ABB OS32GD04N2P Switch fuse is designed to interrupt electrical circuits while offering integrated overcurrent protection through cartridge fuses. These components are commonly installed in industrial distribution boards and motor control panels to safely isolate power supplies and protect downstream equipment from faults. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Environmental Product Declaration - EPD: 1SCC311195D0201
- Group Waste to Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- REACH Declaration: 1SCC011021D0201
- RoHS Information: 1SCC011020D0201
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country of Origin: Finland (FI)
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC311036M0212
- Product Net Width: 136 mm
- Product Net Height: 125 mm
- Product Net Depth / Length: 121 mm
More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Information | 1SCC011020D0201 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Eco Transparency | |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311036M0212 |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Dimensions | |
| Product Net Width | 136 mm |
| Product Net Height | 125 mm |
| Product Net Depth / Length | 121 mm |
| Product Net Weight | 1.37 kg |
| 3.02 lb | |
| Technical | |
| Rated Operational Current AC-21A (Ie) | (500 V) 32 A |
| (690 V) 32 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 32 A |
| (690 V) 32 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 32 A |
| (690 V) 32 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 7.5 kW |
| (400 V) 15 kW | |
| (415 V) 15 kW | |
| (500 V) 18.5 kW | |
| (690 V) 22 kW | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 32 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 32 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA |
| Power Loss | at Rated Operating Conditions per Pole 1 W |
| Pollution Degree | 3 |
| Handle Type | Pistol handle and shaft included |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - With Solid Link |
| Switches Operating Mechanism | 04 (Left Side) |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Fuse Size | NH000 |
| Fuse System | DIN |
| Operating Mode | Front Operated |
| Standards | IEC 60947-3 |
| Mounting Type | Base mounting |
| Number of Poles | 4 |
| Cable Cross-Section | 2.5 ... 25 mm² |
| Terminal Type | Screw Terminals |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Rated Current (In) | Main Circuit 32 A |
| Technical UL/CSA | |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Environmental | |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311208D0201 |
| CCC Certificate | CCC OS32-63G_ 2016.pdf |
| Declaration of Conformity - CE | 1SCC311136D2703 |
| DNV GL Certificate | 1SCC311125D0203 |
| REACH Declaration | 1SCC011021D0201 |
| UL Certificate | No certification needed |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| 6.7 in | |
| Package Level 1 Depth / Length | 190 mm |
| 7.5 in | |
| Package Level 1 Height | 145 mm |
| 5.7 in | |
| Package Level 1 Gross Weight | 1.5 kg |
| 3.3 lb | |
| Package Level 1 EAN | 6417019476353 |
| Classifications | |
| Object Classification Code | Q |
| ETIM 7 | EC001040 - Fuse switch disconnector |
| ETIM 8 | EC001040 - Fuse switch disconnector |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3660212 |
