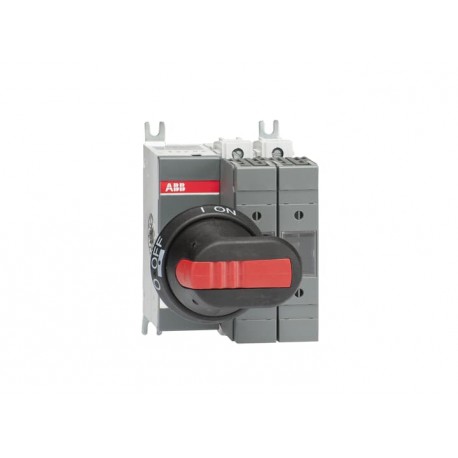

1SCA116714R1001 ABB Fuse switch OS32GD02P
1SCA116714R1001
116714
ABB
1 Pcs.
Fuse switch OS32GD02P
OS32GD02P SWITCH FUSE
Connectors > Fuse switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SCA116714R1001 ABB Fuse switch OS32GD02P serves as a protective disconnect device in industrial electrical panels, combining circuit isolation with fuse-based overcurrent protection to safeguard distribution infrastructure.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 1SCC311048M0201
- Environmental Product Declaration - EPD: 1SCC311195D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: 23dd64f8-ac93-48e6-98fb-a5aa3d1a5fd7 Finland
- Simplified SCIP: 89edb638-df58-4683-8d0d-a26c86758b7e Germany
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC311036M0212
- Mechanical Drawings: OS63GD02.igs
- Degree of Protection: acc. to IEC 60529 IP20
- Pollution Degree: 3
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311048M0201 |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 23dd64f8-ac93-48e6-98fb-a5aa3d1a5fd7 Finland |
| Simplified SCIP | 89edb638-df58-4683-8d0d-a26c86758b7e Germany |
| 8819087e-318c-4570-8292-4de4259a2f27 Poland | |
| 7b970b99-202d-40d5-9b20-e4caa1e5df67 Italy | |
| 2c733014-f7d2-44fa-b607-23bcc3c58837 Norway | |
| f9eb0029-178e-4999-a590-918d80aa347a Belgium | |
| aafbf552-7ae8-45ea-a02d-2f6128a66789 Germany | |
| b382755d-a39f-4cfb-b248-7a43299e879f Germany | |
| 441425f0-02b1-4e58-9c66-e9b7f142e3ea Denmark | |
| e95c2b13-d981-4800-88d9-4b8c05bfb865 Sweden | |
| 56f64634-3305-42f6-9c1a-bdd6a82a1c58 Czech Republic | |
| d8410fe6-b98f-4591-97d7-31095d95064a France | |
| c3f0c05e-d00b-4b29-99e2-bd19c2c44d4c Poland | |
| 1219d353-bbb3-483c-bc2a-539cf76b6fd5 Netherlands | |
| 308a3764-2a4b-4995-a0c1-1afcefce72b9 Greece | |
| 5a4f3268-e174-4401-9de0-e6c5690364a7 Poland | |
| ce74b7dd-d0f6-44b0-be19-df4013d9a07b Portugal | |
| 01b83774-d6f5-45e6-92c0-f35a8f32217c Croatia | |
| bff93269-ffef-4957-b271-27508b93bc3c Sweden | |
| 2c6da76e-90a1-4112-b9ab-8127c020b541 Bulgaria | |
| 3e8cdeb0-65e5-4e58-b41f-a67b38c3aa23 Hungary | |
| 2523dcd1-8d9f-4de4-a831-0eaeb0ad618b Estonia | |
| cec0fc69-f7c3-4d08-a620-f68ae696c601 Germany | |
| 065fed97-5ff6-415c-87cd-9cb1587eb462 Germany | |
| 69f4589f-5a2e-4b57-9aef-cea76c5cd720 France | |
| eb7c1c4a-545d-4971-bf77-cd4d60f6f203 Hungary | |
| 3f105a76-002a-4378-b0b0-eb923b1fe520 Belgium | |
| d3e7d1db-2710-453e-a96c-97303c965ce5 Spain | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311036M0212 |
| Mechanical Drawings | OS63GD02.igs |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 88 mm |
| Product Net Height | 112 mm |
| Product Net Depth / Length | 121 mm |
| Product Net Weight | 0.915 kg |
| 2.02 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| 6.7 in | |
| Package Level 1 Depth / Length | 190 mm |
| 7.5 in | |
| Package Level 1 Height | 145 mm |
| 5.7 in | |
| Package Level 1 Gross Weight | 1 kg |
| 2.2 lb | |
| Package Level 1 EAN | 6417019488011 |
| Technical | |
| Cable Cross-Section | 2.5 ... 25 mm² |
| Connecting Capacity | Stranded 2.5 … 25 mm² |
| Flexible 2.5 … 25 mm² | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 32 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 32 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | NH000 |
| Fuse System | DIN |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 2P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 1 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 32 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 32 A |
| (690 V) 32 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 32 A |
| (690 V) 32 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 32 A |
| (690 V) 32 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 7.5 kW |
| (400 V) 15 kW | |
| (415 V) 15 kW | |
| (500 V) 18.5 kW | |
| (690 V) 22 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 02 (Left Side) |
| Terminal Type | Screw Terminals |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Wire Stripping Length | Main Circuit 12 mm |
| Main Circuit 0.47 in | |
| Technical UL/CSA | |
| Wire Stripping Length | Main Circuit 12 mm |
| Main Circuit 0.47 in | |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311208D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS32-63G_ 2016.pdf |
| Declaration of Conformity - CE | 1SCC311136D2703 |
| DNV GL Certificate | 1SCC311125D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
