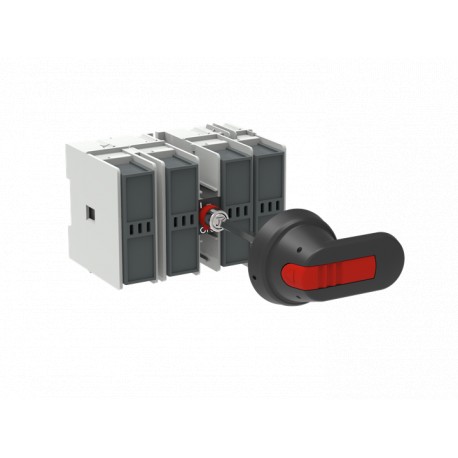

1SCA108889R1001 ABB Fuse switch OS32FF2214N1-2
1SCA108889R1001
108889
ABB
1 Pcs.
Fuse switch OS32FF2214N1-2
OS32FF2214N1-2 SWITCH FUSE
Connectors > Fuse switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| Environmental Product Declaration - EPD | 1SCC311204D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311030M0202 |
| Environmental Product Declaration - EPD | 1SCC311204D0201 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Lithuania |
| Dimensions | |
| Product Net Width | 234 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 130 mm |
| Product Net Weight | 0.79 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 130 mm |
| Package Level 1 Depth / Length | 234 mm |
| Package Level 1 Height | 130 mm |
| Package Level 1 Gross Weight | 0.9 kg |
| Package Level 1 EAN | 6417019421650 |
| Technical | |
| Connecting Capacity | Stranded 0.75 … 10 mm² |
| Flexible 0.75 … 10 mm² | |
| Fuse Size | 14x51 |
| Fuse System | NFC |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Power Loss | at Rated Operating Conditions per Pole 2 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V AC) 80 kA |
| Rated Current (In) | Main Circuit 32 A |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 12 kV |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 32 A |
| (500 V AC) 32 A | |
| (690 V AC) 32 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 32 A |
| (500 V) 32 A | |
| (690 V) 32 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 32 A |
| (500 V) 32 A | |
| (690 V) 32 A | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1 kA |
| Recommended Screw Driver | Main Circuit Slot |
| Standards | IEC 60947-3 |
| Terminal Type | Screw Terminals |
| Tightening Torque | 1.5 … 2 N·m |
| Wire Stripping Length | Main Circuit 12...14 mm |
| Main Circuit 0.47…0.55 in | |
| Technical UL/CSA | |
| Wire Stripping Length | Main Circuit 12...14 mm |
| Main Circuit 0.47…0.55 in | |
| Recommended Screw Driver | Main Circuit Slot |
| Tightening Torque | 1.5 … 2 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Declaration of Conformity - CE | 1SCC311129D2702 |
| DNV GL Certificate | 1SCC311125D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as safety switch (EF006985) | Yes |
| Rated short-time withstand current lcw (EF007050) | 1 kA |
| Suitable for fuses (EF006692) | 14x51 mm |
| Number of poles (EF001391) | 4 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Cable entry (EF000537) | Other |
| Equipped with connectors (EF011696) | Yes |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | No |
| Suitable for busbar mounting (EF007259) | Yes |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Version as emergency stop installation (EF006959) | No |
