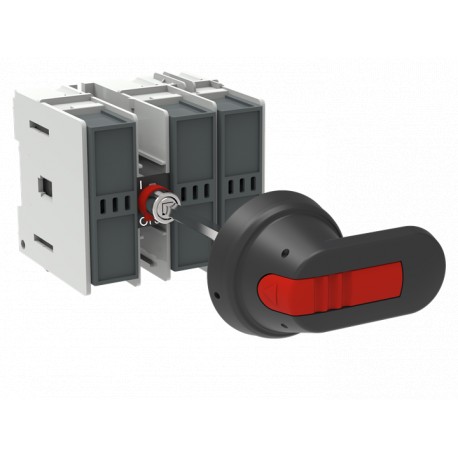

Images are for illustrative purposes only. Please refer to data sheet for details
1SCA108642R1001 ABB Fuse switch OS32FF1214
1SCA108642R1001
108642
ABB
1 Pcs.
Fuse switch OS32FF1214
OS32FF1214 SWITCH FUSE
Connectors > Fuse switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB Fuse switch OS32FF1214 (part number 1SCA108642R1001) provides reliable circuit isolation and short-circuit protection for electrical installations requiring secure mechanical switching.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Environmental Product Declaration - EPD: 1SCC311204D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC311030M0202
- Mechanical Drawings: OS32FF1214-2.stp
- Environmental Product Declaration - EPD: 1SCC311204D0201
- Degree of Protection: acc. to IEC 60529 IP20
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country or Territory of Origin: Lithuania
- Product Net Width: 106 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Environmental Product Declaration - EPD | 1SCC311204D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311030M0202 |
| Mechanical Drawings | OS32FF1214-2.stp |
| Environmental Product Declaration - EPD | 1SCC311204D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Lithuania |
| Dimensions | |
| Product Net Width | 106 mm |
| Product Net Height | 97 mm |
| Product Net Depth / Length | 105 mm |
| Product Net Weight | 0.7 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 130 mm |
| Package Level 1 Depth / Length | 234 mm |
| Package Level 1 Height | 130 mm |
| Package Level 1 Gross Weight | 0.7 kg |
| Package Level 1 EAN | 6417019419077 |
| Technical | |
| Cable Cross-Section | 0.75 ... 10 mm² |
| Connecting Capacity | Stranded 0.75 … 10 mm² |
| Flexible 0.75 … 10 mm² | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 32 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 32 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | 14x51 |
| Fuse System | NFC |
| Handle Type | Handle not included |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 2 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 32 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 32 A |
| (690 V) 32 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 32 A |
| (690 V) 32 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 32 A |
| (690 V) 32 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 7.5 kW |
| (400 V) 15 kW | |
| (415 V) 15 kW | |
| (500 V) 18.5 kW | |
| (690 V) 22 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1 kiloampere rms |
| Recommended Screw Driver | Main Circuit Slot |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 12 (Between the Poles) |
| Terminal Type | Screw Terminals |
| Tightening Torque | 2 N·m |
| Wire Stripping Length | Main Circuit 12...14 mm |
| Main Circuit 0.47…0.55 in | |
| Technical UL/CSA | |
| Wire Stripping Length | Main Circuit 12...14 mm |
| Main Circuit 0.47…0.55 in | |
| Recommended Screw Driver | Main Circuit Slot |
| Tightening Torque | 2 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Declaration of Conformity - CE | 1SCC311129D2702 |
| DNV GL Certificate | 1SCC311125D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3661968 |
