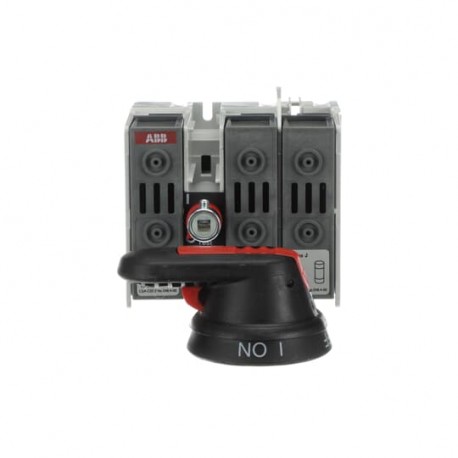

1SCA108828R1001 ABB OS30FAJ12P Fusible disconnect switch
1SCA108828R1001
108828
ABB
1 Pcs.
Connectors > Fuse switch disconnector
OS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB fusible disconnect switch integrates manual circuit interruption with fuse protection to safeguard electrical loads against severe overcurrent events. This device is widely specified in industrial automation environments to ensure reliable power isolation.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Environmental Product Declaration - EPD: 1SCC311204D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC311030M0202
- Mechanical Drawings: OS30FAJ12.stp
- Environmental Product Declaration - EPD: 1SCC311204D0201
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country or Territory of Origin: Lithuania
- Product Net Width: 106 mm
- Product Net Height: 97 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Environmental Product Declaration - EPD | 1SCC311204D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311030M0202 |
| Mechanical Drawings | OS30FAJ12.stp |
| Environmental Product Declaration - EPD | 1SCC311204D0201 |
| Environmental | |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Lithuania |
| Dimensions | |
| Product Net Width | 106 mm |
| Product Net Height | 97 mm |
| Product Net Depth / Length | 105 mm |
| Product Net Weight | 0.8 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 130 mm |
| Package Level 1 Depth / Length | 234 mm |
| Package Level 1 Height | 130 mm |
| Package Level 1 Gross Weight | 0.92 kg |
| Package Level 1 EAN | 6417019420998 |
| Technical | |
| Cable Cross-Section | 2.5 ... 25 mm² |
| Connecting Capacity | Stranded 0.75 … 10 mm² |
| Flexible 0.75 … 10 mm² | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 32 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 32 A |
| Fuse Size | 30 A |
| Fuse System | Class J |
| Handle Type | Pistol handle and shaft included |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 2 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA |
| Rated Current (In) | Main Circuit 30 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 30 A |
| (690 V) 30 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 30 A |
| (690 V) 30 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 30 A |
| (690 V) 30 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 7.5 kW |
| (400 V) 15 kW | |
| (415 V) 15 kW | |
| (500 V) 18.5 kW | |
| (690 V) 22 kW | |
| Rated Operational Voltage | Main Circuit 600 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1 kiloampere rms |
| Recommended Screw Driver | Main Circuit Slot |
| Standards | UL98 |
| IEC 60947-3 | |
| Switches Operating Mechanism | 12 (Between the Poles) |
| Terminal Type | Screw Terminals |
| Tightening Torque | 1.5 … 2 N·m |
| Wire Stripping Length | Main Circuit 12...14 mm |
| Main Circuit 0.47…0.55 in | |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Main Circuit 250 V DC | |
| Ampere Rating | 30 A |
| Horsepower Rating UL/CSA | (acc. to UL 240 V) 7.5 Hp |
| (acc. to UL 480 V) 15 Hp | |
| (acc. to UL 600 V) 20 Hp | |
| Wire Stripping Length | Main Circuit 12...14 mm |
| Main Circuit 0.47…0.55 in | |
| Recommended Screw Driver | Main Circuit Slot |
| Tightening Torque | 1.5 … 2 N·m |
| Tightening Torque UL/CSA | Wire-Clamp 17 in·lb |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Declaration of Conformity - CE | 1SCC311129D2702 |
| DNV GL Certificate | 1SCC311125D0203 |
| UL Certificate | CULUS CERTIFICATE OS30FA_ |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3661963 |
