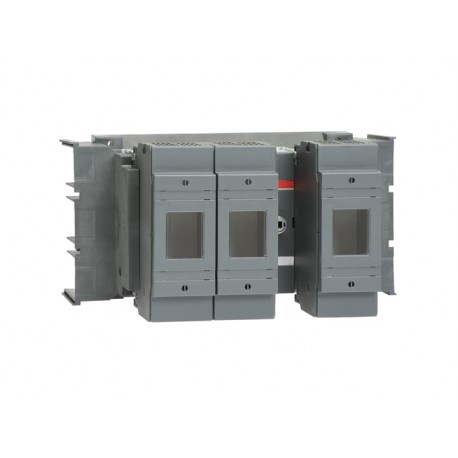

1SCA022852R8500 ABB OS250D21LRP Switch fuse
1SCA022852R8500
022852
ABB
1 Pcs.
Connectors > Fuse switch disconnector
OS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB 1SCA022852R8500 OS250D21LRP Switch fuse is utilized in heavy-duty electrical architectures to combine load break switching with overcurrent protection. These components are mounted inside industrial enclosures to ensure safe maintenance cutoffs and reliable fault interruption.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 1SCC311049M0201
- Environmental Product Declaration - EPD: 1SCC311197D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: 8a89588d-a5e7-45af-b071-f59dabd43480 Finland
- Simplified SCIP: 53b0f1f2-f139-4cbb-a813-2da4c35c9e20 Germany
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC311044M0201
- Environmental Product Declaration - EPD: 1SCC311197D0201
- Degree of Protection: acc. to IEC 60529 IP20
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311049M0201 |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 8a89588d-a5e7-45af-b071-f59dabd43480 Finland |
| Simplified SCIP | 53b0f1f2-f139-4cbb-a813-2da4c35c9e20 Germany |
| 68c1f3d1-dd9b-4010-b783-97538150ec61 Belgium | |
| a1bd6118-8881-46fb-9847-73eaf74907a2 Spain | |
| 408f9965-c944-499e-ac4a-941f0266c9e1 Hungary | |
| 82536d96-ebe8-4ded-baa9-452d7c6880d6 Poland | |
| 0b6d4499-de24-4a56-8b6b-b960843be351 France | |
| 9d865fd6-35c0-4c2d-9ad8-349caadea39d Czech Republic | |
| e66c80f1-3e13-4ac3-b711-4184b494a40b Poland | |
| 7b70fbc9-ce81-4d6e-a246-ccd48a566e21 Portugal | |
| 23582916-8514-4e02-9b23-5bb2691f2571 Croatia | |
| 7ef62b43-2e04-4739-9f3f-a12a5df9999b Estonia | |
| c669dad4-afb0-4150-b52f-35362cefcdca Greece | |
| 8d031128-a9cb-4404-978e-37e388a799a4 Bulgaria | |
| 59c0a53a-d878-4385-8adc-e62c18c8f714 Sweden | |
| 7ef27db7-ad5e-4181-a310-2d5fa6d71571 Hungary | |
| ab361530-e6dc-40a8-b247-9734675cad3d Germany | |
| 2fd0d784-93ad-40b5-b165-789493c695d1 Sweden | |
| aa89e94a-eeb0-45d6-bcc3-ff0d9fa6ea4c Germany | |
| 61016ffc-333b-4fb8-9e26-9c9b32af6d67 France | |
| 8d997778-7b38-4b8f-aff4-a51a5cfe9e0e Netherlands | |
| cb5c7f0c-6a8c-479c-aab2-427a25c5c555 Belgium | |
| 06e9b08a-8e53-43fa-8bc6-42cd81b21520 Germany | |
| 8ddf62e8-d618-469c-a930-b95f7d2e8409 Denmark | |
| ca28e9bf-71bd-4c4a-b49d-f28fbe500235 Norway | |
| 13f50fb8-f8c0-4cae-8c05-6f4289c32c80 Germany | |
| 73e3dbe3-38ec-4a01-a1ee-01b09ef22522 Poland | |
| fac4361e-eb54-42db-a7e5-d0cfefac9887 Italy | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311044M0201 |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 353 mm |
| Product Net Height | 150 mm |
| Product Net Depth / Length | 234 mm |
| Product Net Weight | 6.1 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 265 mm |
| Package Level 1 Depth / Length | 326 mm |
| Package Level 1 Height | 295 mm |
| Package Level 1 Gross Weight | 6.1 kg |
| Package Level 1 EAN | 6417019302195 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 250 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | NH0 |
| NH1 | |
| Fuse System | DIN |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Left In - Right Out |
| Power Loss | at Rated Operating Conditions per Pole 17 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 250 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 250 A |
| (690 V) 250 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 75 kW |
| (400 V) 140 kW | |
| (415 V) 145 kW | |
| (500 V) 170 kW | |
| (690 V) 250 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 21 (Between the Poles) |
| Terminal Type | Lug terminals |
| Terminal Width | 25 mm |
| Tightening Torque | 30 ... 44 N·m |
| Technical UL/CSA | |
| Tightening Torque | 30 ... 44 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS200-250_LR 2016 |
| Declaration of Conformity - CE | 1SCC311120D2702 |
| DNV GL Certificate | 1SCC311132D0201 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
