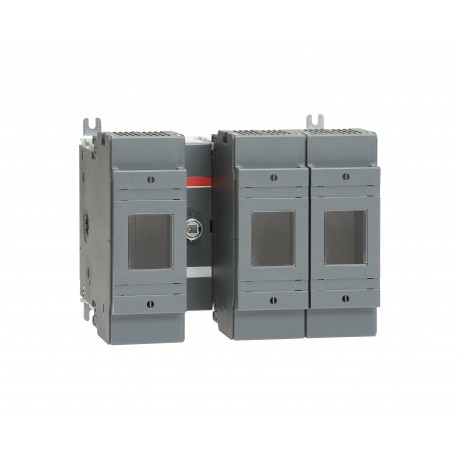

ABB 1SCA102207R1001 1SCA102207R1001 ABB Fuse switch OS250D12BBP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA102207R1001 ABB Fuse switch OS250D12BBP

1SCA102207R1001

102207

ABB

1 Pcs.

Fuse switch OS250D12BBP OS250D12BBP SPECIAL CONNECTED SWITCH FUSE

Connectors > Fuse switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions1SCC311049M0201
Environmental Product Declaration - EPD1SCC311197D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIPd8cd68ef-e59b-4e30-91c3-a0b30c3d89e8 Finland
Simplified SCIPe648dc20-620f-4f55-8824-ff2476bf6251 Germany
e525ce42-3f18-4cd0-a5d4-227b02d27205 Portugal
0c5ff59f-b7f3-4790-8c83-1eb90316e9cc Greece
fa9a79fc-44cf-446e-87a0-bcba1f289c14 Belgium
b39a0df6-2655-491b-9fe0-72ab07318dae Norway
dec00cff-e96e-4c58-9480-ca12d04828d7 Bulgaria
431e470d-4a32-4825-9f4e-2996e3f94836 Sweden
7144e06d-21e4-417e-9519-a0ba6f1f3a39 Croatia
cb63a121-377c-4fea-a2c9-d0b5b0ed7ffc Czech Republic
a9e4dfd9-0a5b-40a0-a429-5ea5636c042d Poland
594e7467-62b5-4f3f-9892-0bf788210944 Hungary
412d97b4-6860-4ae7-b6ca-7321c2456c12 Spain
146f6854-5657-42c8-b464-468f4eae91ca Belgium
a3b3dced-bec6-44a3-bcab-d557fef2e748 Estonia
29e6cb1e-1f64-4798-b3f3-250fbe9bfb22 Poland
56345428-dc83-4122-baf1-26523b5e8aa4 Hungary
757683e3-04ee-4552-8d80-b9a97611ac77 Sweden
ceba450f-7698-4891-b5e9-ef2a55beb8f8 Germany
d1597232-05ef-47cd-8ac3-6ea184e24bdd France
41ed7efd-3a73-4683-9fd4-b340a34a8a29 Germany
98a3028c-eff7-43c1-8095-94ddb4378e09 France
be248206-fe87-4311-a328-7ac0c95a5358 Denmark
081caeaa-3642-4e6d-8751-ce1cb396ddd9 Germany
435cbd80-4ae4-46cb-b436-ed5cf994e125 Italy
96f79181-1535-4459-985a-a6d26412bb16 Netherlands
debbc91b-bb73-4695-abc9-73b59f9a7fac Poland
db4d100f-6c48-4a71-ad98-9b511671393f Germany
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC311013C0201
Instructions and Manuals1SCC311012M0219
Mechanical Drawingsos250d12bbp.stp
Environmental Product Declaration - EPD1SCC311197D0201
Environmental
Degree of Protectionacc. to IEC 60529 IP20
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width208 mm
Product Net Height149 mm
Product Net Depth / Length203 mm
Product Net Weight3.0 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width204 mm
Package Level 1 Depth / Length275 mm
Package Level 1 Height167 mm
Package Level 1 Gross Weight3.0 kg
Package Level 1 EAN6417019369877
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 250 A
Conventional Thermal Current (Ithe)Fully Enclosed 250 A
Degree of Protectionacc. to IEC 60529 IP20
Fuse SizeNH0
NH1
Fuse SystemDIN
Handle TypePistol handle
Mounting TypeBase mounting
Number of Poles3P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsBack In - Back Out
Power Lossat Rated Operating Conditions per Pole 13 W
Rated Conditional Short-Circuit Current (Inc)(500 V) 100 kA
(690 V) 80 kA
Rated Current (In)Main Circuit 250 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-21A (Ie)(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 75 kW
(400 V) 140 kW
(415 V) 145 kW
(500 V) 170 kW
(690 V) 250 kW
Rated Operational VoltageMain Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kiloampere rms
StandardsIEC 60947-3
Switches Operating Mechanism12 (Between the Poles)
Terminal TypeLug terminals
Terminal Width25 mm
Tightening Torque30 ... 44 N·m
Technical UL/CSA
Tightening Torque30 ... 44 N·m
Certificates and Declarations
A2L Certificate – IEC1SCC311209D0201
ATEX CertificateNo certification needed
Declaration of Conformity - CE1SCC311120D2702
DNV GL Certificate1SCC311132D0201
UL CertificateNo certification needed
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC001040 - Fuse switch disconnector
ETIM 10EC001040 - Fuse switch disconnector
UNSPSC39122233
IDEA Granular Category Code (IGCC)5291 >> Fuse switch disconnector
eClassV11.1 : 27371401
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
