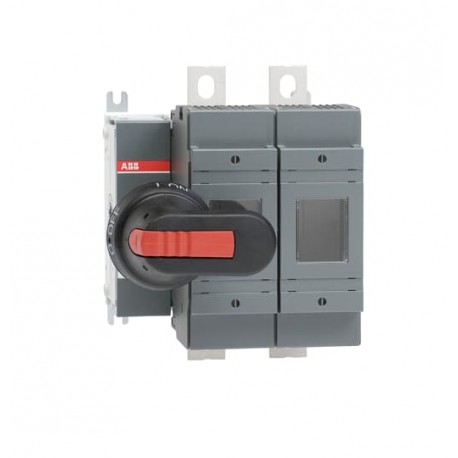

ABB 1SCA022760R0170 1SCA022760R0170 ABB OS250D02P Switch fuse View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA022760R0170 ABB OS250D02P Switch fuse

1SCA022760R0170

022760

ABB

1 Pcs.

OS250D02P Switch fuse Fuse switch OS250D02P OS250D02P SWITCH FUSE

Connectors > Fuse switch disconnector
OS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions1SCC311049M0201
Environmental Product Declaration - EPD1SCC311197D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIPdf1b864c-bd3f-4494-b6f3-b301f15f0971 Finland
Simplified SCIP305dd811-294d-43c4-a265-d43bf02ef178 Germany
851f4ec1-4901-40f2-a281-6b504bd82bc5 Portugal
75138c0f-1dde-41c9-b712-c67830255fac Greece
c454419d-6354-487a-98a4-0a3bc429729f Belgium
73b66464-f7c7-4970-a5ea-80eb5438bca1 Norway
1ff89285-60e2-4c8d-855b-072cbaa7cb2a Sweden
1439370d-143b-4d34-b6ec-f1f0949140cd Bulgaria
5b81c696-424c-4a16-bfb6-8d3ba35073d2 Croatia
257fa147-5a1a-414d-aeae-8ed4d819e27b Poland
67a67e91-4913-4ed4-9370-3a14267f5e9b Hungary
be5919aa-08d7-498f-8ca9-1d71bfb7666c Germany
0ae85a29-5852-4146-a7f9-8cdc6bec0ae9 Poland
d77abc44-23d9-47ed-91bf-5cc282c37889 Estonia
24267bc8-9e78-43f6-91ff-8e8b9f3c3256 Belgium
6abbcba9-0182-4757-8a2e-70bb7f24dbcd Hungary
de84a81c-ab31-4a7d-93bd-8f0bb7454362 Spain
b895e577-52fd-4bda-a525-c8aeb8a56ca3 Sweden
bc8c83b0-5098-4e4a-8bf4-37d6835ca096 France
a2055921-15ef-4ac8-87a1-dc25f1c66eac Czech Republic
8a03a425-37ab-4566-9f2e-5043fdfcc9bd France
1552c617-375c-430a-9dce-de22b9d5476c Denmark
35fc83e4-f9ef-4d1e-ad37-cac1e9d4cb6c Germany
7cd9ce7a-f11b-41d5-a807-bc4c8fd2c855 Germany
278f6919-db68-4446-82fc-d8e892af5ca3 Italy
3f3ffd9d-ac90-4b68-91f7-ff02185e7059 Poland
4c77d057-e23e-478f-8b8e-20818154c241 Netherlands
66e05dc2-cd70-47ff-afa2-484436c1f297 Germany
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC311013C0201
Instructions and Manuals1SCC311012M0219
Mechanical Drawingsos250_d_b_02.stp
Environmental Product Declaration - EPD1SCC311197D0201
Environmental
Degree of Protectionacc. to IEC 60529 IP20
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width154 mm
Product Net Height199 mm
Product Net Depth / Length154 mm
Product Net Weight2.5 kg
5.5 lb
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width230 mm
9.1 in
Package Level 1 Depth / Length270 mm
10.6 in
Package Level 1 Height170 mm
6.7 in
Package Level 1 Gross Weight2.8 kg
6.2 lb
Package Level 1 EAN6417019247632
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 250 A
Conventional Thermal Current (Ithe)Fully Enclosed 250 A
Degree of Protectionacc. to IEC 60529 IP20
Fuse SizeNH0
NH1
Fuse SystemDIN
Handle TypePistol handle
Mounting TypeBase mounting
Number of Poles2P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out, Bottom In - Top Out
Power Lossat Rated Current 17 W
Rated Conditional Short-Circuit Current (Inc)(690 V) 100 kA
Rated Current (In)Main Circuit 250 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-21A (Ie)(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 75 kW
(400 V) 140 kW
(415 V) 145 kW
(500 V) 170 kW
(690 V) 250 kW
Rated Operational VoltageMain Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kiloampere rms
StandardsIEC 60947-3
Switches Operating Mechanism02 (Left Side)
Terminal TypeLug terminals
Terminal Width25 mm
Tightening Torque30 ... 44 N·m
Technical UL/CSA
Tightening Torque30 ... 44 N·m
Certificates and Declarations
A2L Certificate – IEC1SCC311209D0201
ATEX CertificateNo certification needed
CCC CertificateCCC OS200-250 2016
Declaration of Conformity - CE1SCC311095D2704
DNV GL Certificate1SCC311123D0203
UL CertificateNo certification needed
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC001040 - Fuse switch disconnector
ETIM 10EC001040 - Fuse switch disconnector
UNSPSC39122233
IDEA Granular Category Code (IGCC)5291 >> Fuse switch disconnector
eClassV11.1 : 27371401
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

ETIM for 1SCA022760R0170 Low-voltage industrial controls and switchgear (EC001040)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as safety switch (EF006985) Yes
Max. rated operation voltage Ue AC (EF007355) 1000 V
Rated permanent current Iu (EF001389) 250 A
Rated operation power at AC-23, 400 V (EF007027) 250 kW
Conditioned rated short-circuit current Iq (EF001444) 80 kA
Rated short-time withstand current lcw (EF007050) 8 kA
Suitable for fuses (EF006692) NH0
Number of poles (EF001391) 2
Type of electrical connection of main circuit (EF006819) Bolt connection
Cable entry (EF000537) Other
Equipped with connectors (EF011696) Yes
Suitable for floor mounting (EF007243) No
Suitable for front mounting (EF007246) No
Suitable for busbar mounting (EF007259) Yes
Type of control element (EF006976) Long turning handle
Position control element (EF009410) Left
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Version as emergency stop installation (EF006959) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
