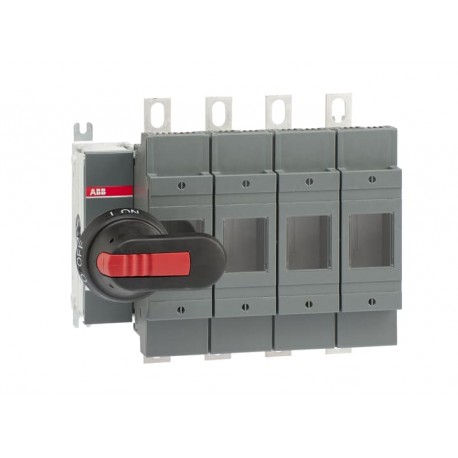

1SCA022758R9770 ABB OS200J04FP Fusible disconnect switch
1SCA022758R9770
022758
ABB
1 Pcs.
OS200J04FP Fusible disconnect switch
Fuse switch OS200J04FP
OS200J04FP FUSIBLE DISCONNECT SWITCH
Connectors > Fuse switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SCA022758R9770 ABB fusible disconnect switch integrates manual switching capability with cartridge fuse holders to protect heavy machinery and electrical distribution infrastructure from overcurrent conditions.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 1SCC311049M0201
- Environmental Product Declaration - EPD: 1SCC311197D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: 63ec3050-ad17-4639-88ea-8b7b62087c01 Finland
- Simplified SCIP: 0ac48168-2054-4f35-b6df-e1daefdf32ac Germany
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC311012M0219
- Mechanical Drawings: os200j04f.stp
- Environmental Product Declaration - EPD: 1SCC311197D0201
- Degree of Protection: acc. to IEC 60529 IP20
- Pollution Degree: 3
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311049M0201 |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 63ec3050-ad17-4639-88ea-8b7b62087c01 Finland |
| Simplified SCIP | 0ac48168-2054-4f35-b6df-e1daefdf32ac Germany |
| 77411b46-2943-4bc5-8118-375102525a73 Germany | |
| db90e7a3-5b9e-472f-965d-450ca88c22d3 Denmark | |
| 4cfcb4aa-821e-4425-9db0-b5e8e7609d4c Poland | |
| 2b78bc74-d6ed-4381-8ef9-baf1ec70d853 Italy | |
| 30b6ed5f-e7af-4f63-82ca-da2b26d4c823 Spain | |
| 183716c7-4615-47d9-8048-f15a07d90360 Belgium | |
| fde401a9-027c-47ca-8094-b6a03596464a Sweden | |
| 27bfcc03-2bb6-4486-b254-fcc6a4d78a8c Greece | |
| 655ea5cf-c36c-4f8c-8324-c4e708e4425e France | |
| adf29fcb-6d83-45d7-9115-82907357badd Poland | |
| 8724a90a-bed6-4ee2-8188-ac7b8f924a55 Sweden | |
| 3dc06891-a82d-4d2b-b9ed-0319864624b9 Bulgaria | |
| 34f8de42-b7f4-4ad6-95cd-403c40248fd9 Estonia | |
| 8dca6540-94b7-44c3-80b0-9039b500a751 Hungary | |
| 8cacab0f-e8fb-43eb-aac0-78fb3c50e0f1 Netherlands | |
| d45e7dd6-5e8b-4077-8bf5-c23062199872 Czech Republic | |
| 0c172ccd-3550-439b-9e9f-46fcf3d150d5 Croatia | |
| f99ede22-c38a-4f6a-b891-8ed979e39d23 Poland | |
| 19d48032-db1c-47f7-ab07-ea855ac26c06 Portugal | |
| 5268818c-aa53-47e3-800a-c814eb20ffce Germany | |
| a76e1aed-6341-4ffb-9d7d-727e7eca1307 Germany | |
| fd82b044-74ec-4b64-8ca9-51f9921099be Norway | |
| 3db427b8-0c74-4e97-83f0-27df8351edd6 Germany | |
| a5ec1328-5f82-49f9-8220-c420139cea54 Belgium | |
| 389cb8c2-cb0a-4232-81c0-b454d0ea3dec France | |
| 37d7d8a6-6a6e-43bd-9fee-c5854225abcb Hungary | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311012M0219 |
| Mechanical Drawings | os200j04f.stp |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 228 mm |
| Product Net Height | 218 mm |
| Product Net Depth / Length | 132 mm |
| Product Net Weight | 4 kg |
| 8.8 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 230 mm |
| 9.1 in | |
| Package Level 1 Depth / Length | 270 mm |
| 10.6 in | |
| Package Level 1 Height | 170 mm |
| 6.7 in | |
| Package Level 1 Gross Weight | 4.3 kg |
| 9.4 lb | |
| Package Level 1 EAN | 6417019247274 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fourth Pole Type | Switched - Fusible Pole |
| Fuse Size | 200 A |
| Fuse System | Class J |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 8 W |
| Rated Conditional Short-Circuit Current (Inc) | (600 V AC) 200 kA |
| Rated Current (In) | Main Circuit 200 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 200 A |
| (690 V) 200 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 60 kW |
| (400 V) 110 kW | |
| (415 V) 110 kW | |
| (500 V) 132 kW | |
| (690 V) 200 kW | |
| Rated Operational Voltage | Main Circuit 600 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Standards | UL98 |
| IEC 60947-3 | |
| Switches Operating Mechanism | 04 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | 15 ... 22 N·m |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Main Circuit 250 V DC | |
| Ampere Rating | 200 A |
| Horsepower Rating UL/CSA | (acc. to UL 240 V) 60 Hp |
| (acc. to UL 480 V) 125 Hp | |
| (acc. to UL 600 V) 150 Hp | |
| Tightening Torque | 15 ... 22 N·m |
| Tightening Torque UL/CSA | Wire-Clamp 200 in·lb |
| Cable Lug 72 in·lb | |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS200-250 2016 |
| Declaration of Conformity - CE | 1SCC311091D2704 |
| DNV GL Certificate | 1SCC311123D0203 |
| UL Certificate | cULus certificate OS200 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
