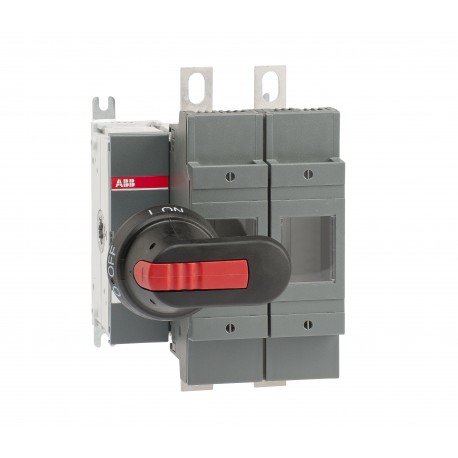

1SCA107598R1001 ABB OS200J02P Fusible disconnect switch
1SCA107598R1001
107598
ABB
1 Pcs.
OS200J02P Fusible disconnect switch
Fuse switch OS200J02P
OS200J02P FUSIBLE DISCONNECT SWITCH
Connectors > Fuse switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Information | 1SCC011020D0201 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Eco Transparency | |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311012M0219 |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Dimensions | |
| Product Net Width | 136 mm |
| Product Net Height | 218 mm |
| Product Net Depth / Length | 132 mm |
| Product Net Weight | 2.2 kg |
| 4.7 lb | |
| Technical | |
| Rated Operational Current AC-21A (Ie) | (500 V) 200 A |
| (690 V) 200 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 60 kW |
| (400 V) 110 kW | |
| (415 V) 110 kW | |
| (500 V) 132 kW | |
| (690 V) 200 kW | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA |
| Power Loss | at Rated Operating Conditions per Pole 8 W |
| Pollution Degree | 3 |
| Handle Type | Pistol handle and shaft included |
| Switches Operating Mechanism | 02 (Left Side) |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Fuse Size | 200 A |
| Fuse System | Class J |
| Operating Mode | Front Operated |
| Standards | UL98 |
| IEC 60947-3 | |
| Mounting Type | Base mounting |
| Number of Poles | 2 |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | 15 … 22 N·m |
| Rated Current (In) | Main Circuit 200 A |
| Technical UL/CSA | |
| Ampere Rating | 200 A |
| Horsepower Rating UL/CSA | (acc. to UL 240 V) 60 Hp |
| (acc. to UL 480 V) 125 Hp | |
| (acc. to UL 600 V) 150 Hp | |
| Tightening Torque | 15 … 22 N·m |
| Tightening Torque UL/CSA | Wire-Clamp 275 in·lb |
| Cable Lug 72 in·lb | |
| Environmental | |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| CCC Certificate | CCC OS200-250 2016 |
| Declaration of Conformity - CE | 1SCC311091D2704 |
| DNV GL Certificate | 1SCC311123D0203 |
| REACH Declaration | 1SCC011021D0201 |
| UL Certificate | cULus certificate OS200 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 230 mm |
| 9.1 in | |
| Package Level 1 Depth / Length | 270 mm |
| 10.6 in | |
| Package Level 1 Height | 170 mm |
| 6.7 in | |
| Package Level 1 Gross Weight | 2.4 kg |
| 5.4 lb | |
| Package Level 1 EAN | 6417019410838 |
| Classifications | |
| Object Classification Code | Q |
| ETIM 7 | EC001040 - Fuse switch disconnector |
| ETIM 8 | EC001040 - Fuse switch disconnector |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
