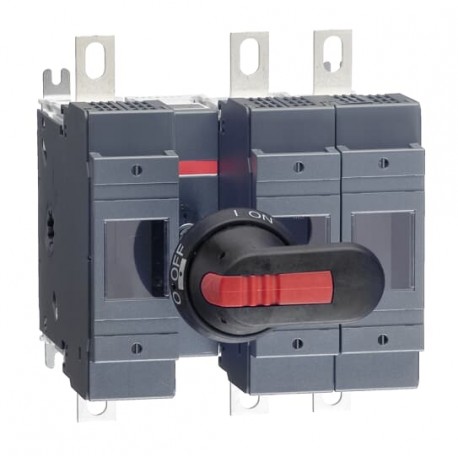

1SCA022820R9150 ABB OS200DZ12P Switch fuse
1SCA022820R9150
022820
ABB
1 Pcs.
Connectors > Fuse switch disconnector
OS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb OS200DZ12P switch fuse assemblies operate as combined disconnectors and fuse holders within electrical enclosures, safeguarding industrial power circuits against high fault currents. Facilities rely on these devices to establish visible break points and protect machinery operators during routine servicing intervals.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 1SCC311049M0201
- Environmental Product Declaration - EPD: 1SCC311197D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: 54a5c234-c1c6-496f-97b5-3255434f9a0a Finland
- Simplified SCIP: c5a161c4-d4c5-4f9b-aa14-6a95039dbc5f Germany
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC311012M0219
- Mechanical Drawings: OS200D12.igs
- Degree of Protection: acc. to IEC 60529 IP20
- Pollution Degree: 3
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311049M0201 |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 54a5c234-c1c6-496f-97b5-3255434f9a0a Finland |
| Simplified SCIP | c5a161c4-d4c5-4f9b-aa14-6a95039dbc5f Germany |
| 4216f697-24b3-45e2-8335-f548a77c4ffc Poland | |
| 720c39bb-0c5d-412f-9fee-167ee72916f6 Netherlands | |
| 0a868984-b5b8-412c-a5cc-681924a90cf1 Sweden | |
| e39b11a2-e5e0-45ac-a44e-8448e57d70ac Germany | |
| e86891d0-2316-47f9-bcee-ee74960866d1 Greece | |
| 9083cccd-8238-4376-862c-c3a9b131b023 Portugal | |
| c4f3f9c3-8628-4ddb-810a-cc81657cea4a Norway | |
| c9deaf87-2c1e-4e37-9056-2fb2a8a9bd77 Italy | |
| 9d09caa6-7bee-45c8-bb44-bc7d152285e8 Czech Republic | |
| 2b3244f4-674c-43d7-9842-a1e33c16b8f5 Croatia | |
| 39d9a48d-3c25-425d-8e4d-7ce5b4b43134 Belgium | |
| 7cff0ffb-676f-4b72-a279-4bba77de7c67 Sweden | |
| 28120f65-6688-45e0-af03-fb6ff481109a Poland | |
| aec2504f-0ca6-4ada-ad8a-259b2a78aadc Bulgaria | |
| ef54f316-e62d-46a0-9343-5b8afbbe3329 Hungary | |
| 214bd1a4-efcf-4359-a681-cab384d1246c Estonia | |
| c0f256ba-c3a6-41e1-b815-4b62d1e70c5f France | |
| 4c4452b9-298a-43c5-899e-0d448e4e2e66 Hungary | |
| 4ad96a82-39e6-41b2-94fa-1477a3b659da France | |
| c5ab1545-5d45-4b96-8f65-7334a2bd5e25 Spain | |
| e6ea64dd-3b47-43be-bb94-00f86f7ed90b Germany | |
| 4f9d7c47-d3c8-4024-9e81-d8a018e37cc5 Denmark | |
| fc0835f4-5bcb-4154-8f3c-4a093c9bc4cd Germany | |
| a6885db6-29e8-43a1-a924-eecc87909a0b Germany | |
| 38ad77c1-a719-41bb-a783-b13ee8f222f3 Poland | |
| 37c6b45c-b815-4e16-af67-38c0e8e7b4bb Belgium | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311012M0219 |
| Mechanical Drawings | OS200D12.igs |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 219 mm |
| Product Net Height | 182 mm |
| Product Net Depth / Length | 198 mm |
| Product Net Weight | 3 kg |
| 6.6 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 230 mm |
| 9.1 in | |
| Package Level 1 Depth / Length | 270 mm |
| 10.6 in | |
| Package Level 1 Height | 170 mm |
| 6.7 in | |
| Package Level 1 Gross Weight | 3.3 kg |
| 7.3 lb | |
| Package Level 1 EAN | 6417019280615 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | NH00 |
| Fuse System | DIN |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 8 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 200 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 200 A |
| (690 V) 200 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 60 kW |
| (400 V) 110 kW | |
| (415 V) 110 kW | |
| (500 V) 132 kW | |
| (690 V) 200 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 12 (Between the Poles) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | 15 ... 22 N·m |
| Technical UL/CSA | |
| Tightening Torque | 15 ... 22 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS200-250 2016 |
| Declaration of Conformity - CE | 1SCC311091D2704 |
| DNV GL Certificate | 1SCC311123D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Norway) | 1682604 |
