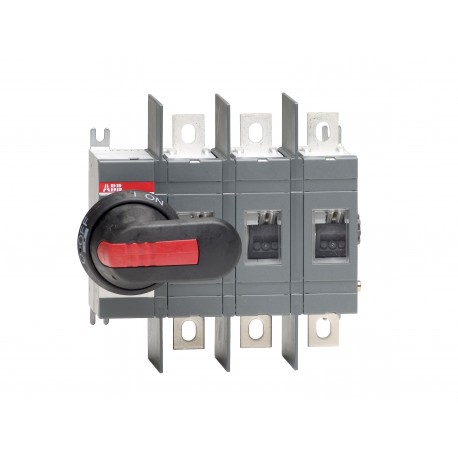

1SCA022709R9680 ABB OS200D04N2P Switch fuse
1SCA022709R9680
022709
ABB
1 Pcs.
OS200D04N2P Switch fuse
Fuse switch OS200D04N2P
OS200D04N2P SWITCH FUSE
Connectors > Fuse switch disconnector
OS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SCA022709R9680 ABB OS200D04N2P Switch fuse supplied by Abb provides manual circuit breaking combined with fuse protection for industrial machinery and distribution boards. This component safely interrupts load currents while integrating fuse links to prevent damage from short circuits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Environmental Product Declaration - EPD: 1SCC311197D0201
- Group Waste to Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- REACH Declaration: 1SCC011021D0201
- RoHS Information: 1SCC011020D0201
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Environmental Product Declaration - EPD: 1SCC311197D0201
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country of Origin: Finland (FI)
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC311012M0219
- Environmental Product Declaration - EPD: 1SCC311197D0201
- Product Net Width: 220 mm
- Product Net Height: 199 mm
- Product Net Depth / Length: 149 mm
More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Information | 1SCC011020D0201 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Eco Transparency | |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311012M0219 |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Dimensions | |
| Product Net Width | 220 mm |
| Product Net Height | 199 mm |
| Product Net Depth / Length | 149 mm |
| Product Net Weight | 4 kg |
| 8.8 lb | |
| Technical | |
| Rated Operational Current AC-21A (Ie) | (500 V) 200 A |
| (690 V) 200 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 60 kW |
| (400 V) 110 kW | |
| (415 V) 110 kW | |
| (500 V) 132 kW | |
| (690 V) 200 kW | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA |
| Power Loss | at Rated Operating Conditions per Pole 8 W |
| Pollution Degree | 3 |
| Handle Type | Pistol handle and shaft included |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - With Solid Link |
| Switches Operating Mechanism | 04 (Left Side) |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Fuse Size | NH0 |
| Fuse System | DIN |
| Operating Mode | Front Operated |
| Standards | IEC 60947-3 |
| Mounting Type | Base mounting |
| Number of Poles | 4 |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | 15 ... 22 N·m |
| Rated Current (In) | Main Circuit 200 A |
| Technical UL/CSA | |
| Tightening Torque | 15 ... 22 N·m |
| Environmental | |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| CCC Certificate | CCC OS200-250 2016 |
| Declaration of Conformity - CE | 1SCC311091D2704 |
| DNV GL Certificate | 1SCC311123D0203 |
| REACH Declaration | 1SCC011021D0201 |
| UL Certificate | No certification needed |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 230 mm |
| 9.1 in | |
| Package Level 1 Depth / Length | 270 mm |
| 10.6 in | |
| Package Level 1 Height | 170 mm |
| 6.7 in | |
| Package Level 1 Gross Weight | 4.3 kg |
| 9.4 lb | |
| Package Level 1 EAN | 6417019225890 |
| Classifications | |
| Object Classification Code | Q |
| ETIM 7 | EC001040 - Fuse switch disconnector |
| ETIM 8 | EC001040 - Fuse switch disconnector |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3661110 |
