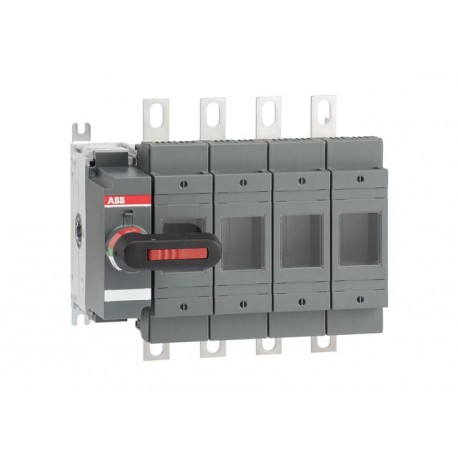

1SCA022768R7430 ABB OS200D04N2K Switch fuse
1SCA022768R7430
022768
ABB
1 Pcs.
Connectors > Fuse switch disconnector
OS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
1SCA022768R7430 ABB OS200D04N2K Switch fuse delivers reliable circuit protection and manual load interruption for demanding industrial installations. These multi-pole switching assemblies combine disconnect functionality with cartridge fuses to safeguard automated production lines and building utility panels against electrical faults. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 1SCC311049M0201
- Environmental Product Declaration - EPD: 1SCC311197D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC311012M0219
- Environmental Product Declaration - EPD: 1SCC311197D0201
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country or Territory of Origin: Finland
- Product Net Width: 220 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311049M0201 |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311012M0219 |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Environmental | |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 220 mm |
| Product Net Height | 199 mm |
| Product Net Depth / Length | 191 mm |
| Product Net Weight | 3.9 kg |
| 8.6 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 270 mm |
| 10.6 in | |
| Package Level 1 Depth / Length | 310 mm |
| 12.2 in | |
| Package Level 1 Height | 200 mm |
| 7.9 in | |
| Package Level 1 Gross Weight | 4.2 kg |
| 9.2 lb | |
| Package Level 1 EAN | 6417019250991 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - With Solid Link |
| Fuse Size | NH0 |
| Fuse System | DIN |
| Handle Type | Direct mounted handle included |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 8 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA |
| Rated Current (In) | Main Circuit 200 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 200 A |
| (690 V) 200 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 60 kW |
| (400 V) 110 kW | |
| (415 V) 110 kW | |
| (500 V) 132 kW | |
| (690 V) 200 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 04 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | 15 ... 22 N·m |
| Technical UL/CSA | |
| Tightening Torque | 15 ... 22 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS200-250 2016 |
| Declaration of Conformity - CE | 1SCC311091D2704 |
| DNV GL Certificate | 1SCC311123D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
