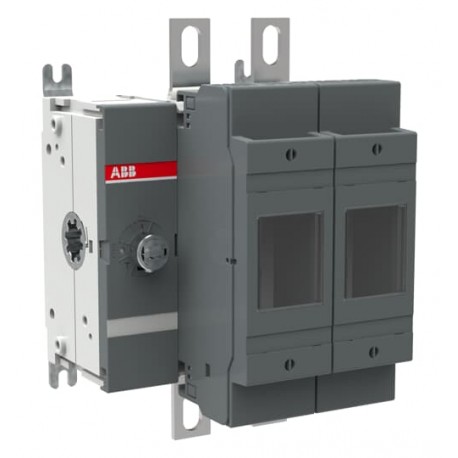

ABB 1SCA022759R9220 1SCA022759R9220 ABB OS200D02P Switch fuse View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA022759R9220 ABB OS200D02P Switch fuse

1SCA022759R9220

022759

ABB

1 Pcs.

OS200D02P Switch fuse Fuse switch OS200D02P OS200D02P SWITCH FUSE

Connectors > Fuse switch disconnector
OS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions1SCC311049M0201
Environmental Product Declaration - EPD1SCC311197D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP7614d050-423c-417a-87bf-8edc46edaa29 Finland
Simplified SCIP78db13fd-b98b-4686-9bf8-ab5186302b24 Germany
a7f02977-e1d7-4026-b765-137244e1b47b Norway
7da4233a-29cc-448b-974f-0ca50decd5a8 Germany
1f641dc3-0d5a-4660-ab36-cf4fc47e14f1 Spain
06f4857c-4a45-4875-9e5c-611b546d1a5f Belgium
1c941897-38f1-4fb8-a849-8a7de2d18e86 Poland
885a546a-9654-435e-9aeb-7e4d29b840fd France
748d0110-207f-4c49-bfdf-dbd4376778f2 Poland
3e47b0c9-a39f-4db3-a551-86f2b9a63315 Greece
f8e55b51-2c90-4352-bc4a-0eb08ea2df35 Sweden
8bf9442f-96ee-4f29-b530-fc189c3add42 Bulgaria
938e2816-069d-4f00-8472-0c8c0d7d9305 Croatia
38d8b044-a26f-48c1-bd3d-79dfe70c5258 Czech Republic
21703a6b-fad6-48b0-8eca-204a6854797e Portugal
7c855cb4-e210-4df2-8105-47a3e2c27f30 Hungary
6d6f0ab4-6903-47eb-8e86-d808acd7554a Estonia
d32df88d-e789-418d-a337-327a3c84f819 Netherlands
881ca7ec-2cb4-48ff-ba53-2e5eb75385b9 Sweden
66e02602-1dc4-4151-bcfe-0af02efd9eff Germany
fc92eb14-e758-4667-8b74-6671d9598c9b Germany
5ef502ff-3199-490a-8d6d-8576895f64af France
052fbcc9-eede-4eb1-a0ce-005141a6d7e0 Hungary
27ac43fd-8841-46fc-9354-808a2dbe5c88 Belgium
97afa0a2-19f2-455f-a2f4-46bc3b3416f6 Poland
121b67c0-15b0-44d5-a366-9e454955beea Italy
2ca29d7c-99f0-4083-aaf8-51166a17f8d8 Germany
9169efe3-72ab-4f85-a6bf-ea43f62f6f08 Denmark
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC311013C0201
Instructions and Manuals1SCC311012M0219
Mechanical Drawingsos200d02.stp
Environmental Product Declaration - EPD1SCC311197D0201
Environmental
Degree of Protectionacc. to IEC 60529 IP20
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width133 mm
Product Net Height199 mm
Product Net Depth / Length149 mm
Product Net Weight2.4 kg
5.3 lb
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width230 mm
9.1 in
Package Level 1 Depth / Length270 mm
10.6 in
Package Level 1 Height170 mm
6.7 in
Package Level 1 Gross Weight2.7 kg
6 lb
Package Level 1 EAN6417019247540
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)Fully Enclosed 200 A
Degree of Protectionacc. to IEC 60529 IP20
Fuse SizeNH0
Fuse SystemDIN
Handle TypePistol handle
Mounting TypeBase mounting
Number of Poles2P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out, Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 8 W
Rated Conditional Short-Circuit Current (Inc)(500 V) 100 kA
(690 V) 80 kA
Rated Current (In)Main Circuit 200 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-21A (Ie)(500 V) 200 A
(690 V) 200 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 60 kW
(400 V) 110 kW
(415 V) 110 kW
(500 V) 132 kW
(690 V) 200 kW
Rated Operational VoltageMain Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kiloampere rms
StandardsIEC 60947-3
Switches Operating Mechanism02 (Left Side)
Terminal TypeLug terminals
Terminal Width20 mm
Tightening Torque15 ... 22 N·m
Technical UL/CSA
Tightening Torque15 ... 22 N·m
Certificates and Declarations
A2L Certificate – IEC1SCC311209D0201
ATEX CertificateNo certification needed
CCC CertificateCCC OS200-250 2016
Declaration of Conformity - CE1SCC311091D2704
DNV GL Certificate1SCC311123D0203
UL CertificateNo certification needed
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC001040 - Fuse switch disconnector
ETIM 10EC001040 - Fuse switch disconnector
UNSPSC39122233
IDEA Granular Category Code (IGCC)5291 >> Fuse switch disconnector
eClassV11.1 : 27371401
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

ETIM for 1SCA022759R9220 Low-voltage industrial controls and switchgear (EC001040)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as safety switch (EF006985) Yes
Max. rated operation voltage Ue AC (EF007355) 1000 V
Rated permanent current Iu (EF001389) 200 A
Rated operation power at AC-23, 400 V (EF007027) 200 kW
Conditioned rated short-circuit current Iq (EF001444) 80 kA
Rated short-time withstand current lcw (EF007050) 8 kA
Suitable for fuses (EF006692) NH0
Number of poles (EF001391) 2
Type of electrical connection of main circuit (EF006819) Bolt connection
Cable entry (EF000537) Other
Equipped with connectors (EF011696) Yes
Suitable for floor mounting (EF007243) No
Suitable for front mounting (EF007246) No
Suitable for busbar mounting (EF007259) Yes
Type of control element (EF006976) Long turning handle
Position control element (EF009410) Left
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Version as emergency stop installation (EF006959) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
