View larger
Images are for illustrative purposes only. Please refer to data sheet for details

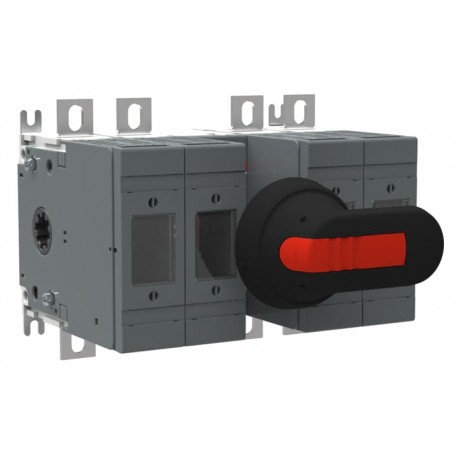

1SCA116731R1001 ABB OS160GD22N1P Switch fuse
1SCA116731R1001
116731
ABB
1 Pcs.
OS160GD22N1P Switch fuse
Fuse switch OS160GD22N1P
OS160GD22N1P SWITCH FUSE
Connectors > Fuse switch disconnector
OS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311047M0201 |
| Environmental Product Declaration - EPD | 1SCC311196D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | a032e308-e65a-47ff-9afc-87ab85c51f91 Finland |
| Simplified SCIP | e60714ee-6c6e-41a0-bf82-1f88f05ffd56 Germany |
| 6a67bb69-7d2f-41e9-bf9e-3ab62db4e36d France | |
| 347fc3bf-00f9-4b99-9dbc-514831e4d185 Spain | |
| 1d1663fa-2206-4568-ae76-e2871a0659b4 Belgium | |
| 4dbce028-85ed-4cba-97f9-0f5af486af3c Hungary | |
| 7e199f35-facb-4cd8-8f31-c6b88619a1ad Sweden | |
| 50afaafa-5f87-416b-92d3-1cd8ec72a660 Netherlands | |
| 520ad1a2-f47f-4542-8bc0-c075364e9dc7 Czech Republic | |
| 3bbafb89-25cb-4307-af0e-3f4ebdbcf0a7 Poland | |
| 2453f52a-4de5-4897-816c-c2f1b1e7c607 France | |
| ae3c23bd-0c87-4efd-b889-f3f62bb18b24 Greece | |
| 64e6f580-3b73-450d-bd8a-ce202a8b302d Bulgaria | |
| c6191ddb-e059-4f18-8e60-7a0791f33daf Portugal | |
| 16bfc11d-4ed6-4840-a4b8-eb2d74db5f0c Sweden | |
| 4706092d-8674-4c0a-bee0-a89d2aba417b Hungary | |
| c993c536-ad76-479f-89e9-3ca471ca3c14 Estonia | |
| 8625ed95-5e47-4635-8495-05f2e57990da Croatia | |
| 74ca4b21-46a3-41d0-b342-b1fbe31ab318 Poland | |
| 12986945-5f7f-4646-8bc0-743a80c0035e Germany | |
| 1384c776-4b7f-4d1d-86d9-c95767e9c81a Germany | |
| 07836900-0a77-4e67-970e-fa8f46d72185 Poland | |
| fa3f461d-0e01-4dac-baa1-dd58c6770f44 Italy | |
| a8566127-b18d-4a3e-9883-5a8b40dc11d0 Belgium | |
| 435d9e9d-888e-4d44-8868-e76e53f0bad2 Germany | |
| 42ea9c50-ac07-4046-a345-481298e0f2bd Norway | |
| ec34ebd5-3f60-439a-af4c-546ccc9bc7bb Germany | |
| 4c9b0332-159b-4d26-88e4-5fae52abc38f Denmark | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311037M0206 |
| Mechanical Drawings | OS160GD_F_22.igs |
| Environmental Product Declaration - EPD | 1SCC311196D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 183 mm |
| Product Net Height | 140 mm |
| Product Net Depth / Length | 130 mm |
| Product Net Weight | 2.6 kg |
| 5.73 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| 6.7 in | |
| Package Level 1 Depth / Length | 250 mm |
| 9.8 in | |
| Package Level 1 Height | 155 mm |
| 6.1 in | |
| Package Level 1 Gross Weight | 2.76 kg |
| 6.1 lb | |
| Package Level 1 EAN | 6417019488196 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 160 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fourth Pole Position | Left Side |
| Fourth Pole Type | Switched - With Solid Link |
| Fuse Size | NH000 |
| NH00 | |
| Fuse System | DIN |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Current 8 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 160 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 160 A |
| (690 V) 160 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 160 A |
| (690 V) 160 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 160 A |
| (690 V) 160 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 45 kW |
| (400 V) 75 kW | |
| (415 V) 75 kW | |
| (500 V) 90 kW | |
| (690 V) 132 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 22 (Between the Poles) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | 15 … 22 N·m |
| Technical UL/CSA | |
| Tightening Torque | 15 … 22 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS100-160G_ 2015.pdf |
| Declaration of Conformity - CE | 1SCC311137D2703 |
| DNV GL Certificate | 1SCC311125D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as safety switch (EF006985) | Yes |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated permanent current Iu (EF001389) | 160 A |
| Rated operation power at AC-23, 400 V (EF007027) | 132 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 80 kA |
| Rated short-time withstand current lcw (EF007050) | 5 kA |
| Suitable for fuses (EF006692) | NH000 |
| Number of poles (EF001391) | 4 |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Cable entry (EF000537) | Other |
| Equipped with connectors (EF011696) | Yes |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | No |
| Suitable for busbar mounting (EF007259) | Yes |
| Type of control element (EF006976) | Long turning handle |
| Position control element (EF009410) | Front |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Version as emergency stop installation (EF006959) | No |
