> ABB > Manual Switches > 120294

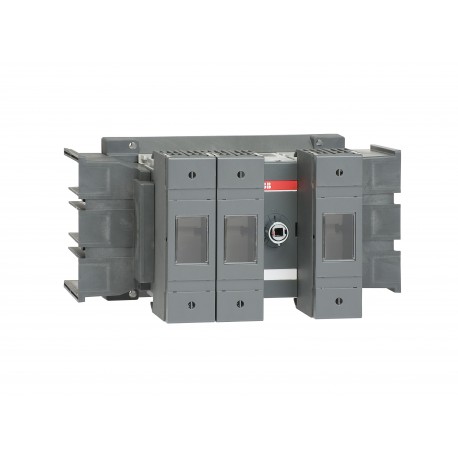

ABB 1SCA120294R1001 1SCA120294R1001 ABB OS160GD21LRP Switch fuse View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA120294R1001 ABB OS160GD21LRP Switch fuse

1SCA120294R1001

120294

ABB

1 Pcs.

OS160GD21LRP Switch fuse Fuse switch OS160GD21LRP OS160GD21LRP SPECIAL CONNECTED SWITCH FUSE

Connectors > Fuse switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
Environmental Product Declaration - EPD1SCC311196D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP22f8ed98-6ab8-4634-a6cf-1f9e936e1cb4 Finland
Simplified SCIP9334d0aa-7d1c-409a-9765-1e6f56c6f54e Germany
996fcb58-bc3d-4766-a003-da0005aeaffe Belgium
cf035e32-bb13-41cb-aa72-02c5b926fb11 Germany
ee262dd7-47bd-468f-8f2c-dc7216ed543b Estonia
e8ad038f-f9c1-4436-8067-d75a37113a8f Germany
27fa928e-05e4-4387-a879-ad417de753b3 Portugal
bb1e3673-5762-46ae-aece-206be84deaee Greece
100853f6-1369-4878-8f08-5881a113b7d3 Bulgaria
092b7b6c-e90d-4202-8575-5fd1a4ffcd73 Poland
d72bfb42-6db5-4909-aa78-158ef0cb41c4 Belgium
ab1b48cd-1995-41f8-b9a0-d2f71480ae72 Italy
fe8e05e1-d70d-42e1-9b5d-42a946da200f Poland
77030e92-427b-496d-88da-d76dac1e30ee Croatia
eae98501-0d21-46f0-b18f-4f9c37ce1151 Norway
b1b00ddf-4cde-48a5-9aad-9ea630238cad Spain
1423fa25-eb95-4775-9404-5a8f17c7e06e Sweden
62850623-b5d3-4909-95ab-2f5451444639 France
58e072c6-41f3-42de-883a-ab58ece3a956 Sweden
8f16600c-08a8-4ee1-a855-39e719ce0252 France
059b78d1-51a2-478a-b88a-0f654350f9e3 Hungary
319fd8d9-88de-49be-9623-508ec99117ab Denmark
6b4d7702-7fbe-4fb1-9ae7-5fcac12e7657 Czech Republic
79281c27-b80d-4bae-9dec-95e5743531dc Germany
6d7ee8ee-f2c6-42a2-a081-3511293a5fa4 Poland
7d2e352a-8ac9-465c-ae22-02d14d785471 Hungary
52e176d6-27c4-46cb-b797-072896a74b89 Netherlands
a0ffe480-fd3f-4557-8b73-80bb28077b1c Germany
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC311013C0201
Instructions and Manuals1SCC311040M0205
Mechanical Drawingsos125-160gd21lr.stp
Environmental Product Declaration - EPD1SCC311196D0201
Environmental
Degree of Protectionacc. to IEC 60529 IP20
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width242 mm
Product Net Height122 mm
Product Net Depth / Length156 mm
Product Net Weight2.6 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width132 mm
Package Level 1 Depth / Length175 mm
Package Level 1 Height252 mm
Package Level 1 Gross Weight2.9 kg
Package Level 1 EAN6417019518060
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 160 A
Conventional Thermal Current (Ithe)Fully Enclosed 160 A
Degree of Protectionacc. to IEC 60529 IP20
Fuse SizeNH000
NH00
Fuse SystemDIN
Handle TypePistol handle
Mounting TypeBase mounting
Number of Poles3P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsLeft In - Right Out
Power Lossat Rated Operating Conditions per Pole 12 W
Rated Conditional Short-Circuit Current (Inc)(500 V) 100 kA
(690 V) 80 kA
Rated Current (In)Main Circuit 160 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-21A (Ie)(500 V) 160 A
(690 V) 160 A
Rated Operational Current AC-22A (Ie)(500 V) 160 A
(690 V) 160 A
Rated Operational Current AC-23A (Ie)(500 V) 160 A
(690 V) 160 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 45 kW
(400 V) 75 kW
(415 V) 75 kW
(500 V) 90 kW
(690 V) 132 kW
Rated Operational VoltageMain Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 5 kiloampere rms
StandardsIEC 60947-3
Switches Operating Mechanism21 (Between the Poles)
Terminal TypeLug terminals
Terminal Width20 mm
Tightening Torque15 … 22 N·m
Technical UL/CSA
Tightening Torque15 … 22 N·m
Certificates and Declarations
A2L Certificate – IEC1SCC311209D0201
ATEX CertificateNo certification needed
Declaration of Conformity - CE1SCC311140D2703
DNV GL Certificate1SCC311125D0203
UL CertificateNo certification needed
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC001040 - Fuse switch disconnector
ETIM 10EC001040 - Fuse switch disconnector
UNSPSC39122233
IDEA Granular Category Code (IGCC)5291 >> Fuse switch disconnector
eClassV11.1 : 27371401
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
