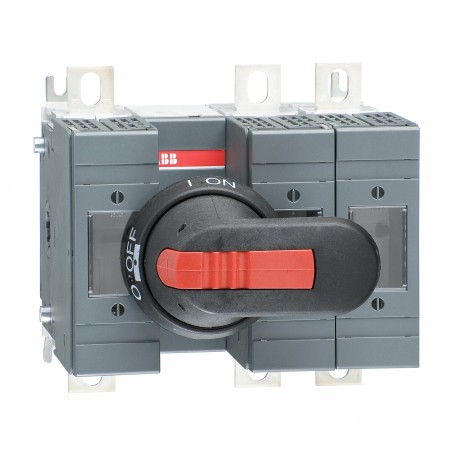

1SCA115643R1001 ABB OS160GD12P Switch fuse
1SCA115643R1001
115643
ABB
1 Pcs.
Connectors > Fuse switch disconnector
OS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This switch fuse unit combines a heavy-duty disconnect switch with fuse links to manage power flow and protect electrical equipment from fault currents. Facility engineers specify such devices in industrial control panels to ensure safe manual isolation during maintenance tasks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 1SCC311047M0201
- Environmental Product Declaration - EPD: 1SCC311196D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: f5f233ed-51a8-4067-8eb7-900906b5ff39 Finland
- Simplified SCIP: 934726b2-1135-428f-ac63-9619fea05df3 Germany
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC311037M0206
- Mechanical Drawings: OS160GD_F_12.igs
- Degree of Protection: acc. to IEC 60529 IP20
- Pollution Degree: 3
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311047M0201 |
| Environmental Product Declaration - EPD | 1SCC311196D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | f5f233ed-51a8-4067-8eb7-900906b5ff39 Finland |
| Simplified SCIP | 934726b2-1135-428f-ac63-9619fea05df3 Germany |
| bb394ddd-8ca2-4a2f-8474-8a8b62e760d9 Belgium | |
| 3fa6c560-45fc-4918-95a3-9ebaeaa1005f Sweden | |
| dcc28946-74d2-4ba5-ab0e-7531c6073c48 Poland | |
| d065567f-4223-4fa1-9f70-633251abc167 Germany | |
| f8887183-592d-466b-a127-f2f9923c2f7f Poland | |
| 4454d59d-244e-427e-920c-223cecd9a1aa Bulgaria | |
| b1e146b8-d0a0-4e0c-84a1-7c9d06ca3703 Portugal | |
| ab3f0ae2-15dc-49d4-b9ff-97fd346a6beb Greece | |
| 657353d9-b1fc-4614-8eea-61cc1f6097ee Estonia | |
| 35c2c1a9-2b5e-4649-bd3c-805a7f4f2172 Belgium | |
| a4c79cec-1332-4ae2-8ad9-d1565bf20eeb Spain | |
| 2c1f271e-514f-4a04-8cd0-af36cce46b83 Sweden | |
| b3ae000e-4313-417f-9084-0a01d4ebf82e France | |
| 17333908-59fc-4b12-89f5-54fc99148d1e Poland | |
| 3c9a0947-877d-4370-aee1-43c3c8c14b64 Hungary | |
| f6c06f7e-500d-4fbd-848f-1f7cd654dd56 Croatia | |
| 43437daf-09cb-44e1-9f09-7528964eb6c1 Germany | |
| 3e8a1758-c943-442c-8fb8-14876a81cc6d Denmark | |
| 46732036-10a9-408f-9005-9809645dbfe9 Czech Republic | |
| 640a1c2f-9342-46fb-832b-137f351eb0da France | |
| b81066fb-4215-4ab9-9e86-9d402ef3be5b Germany | |
| 14e27db0-57a6-4293-b3f0-44d0db816937 Norway | |
| 79fc194f-008b-408d-952d-53866db4abd0 Italy | |
| f2e9655b-56b4-4631-a5df-aef0533a19f2 Hungary | |
| c64b0af9-9d89-47fb-927d-82415e3f4494 Germany | |
| 9e0e1c06-c612-42bc-a8d2-f8549349df9d Netherlands | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311037M0206 |
| Mechanical Drawings | OS160GD_F_12.igs |
| Environmental Product Declaration - EPD | 1SCC311196D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 147 mm |
| Product Net Height | 140 mm |
| Product Net Depth / Length | 130 mm |
| Product Net Weight | 2.035 kg |
| 4.49 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| 6.7 in | |
| Package Level 1 Depth / Length | 220 mm |
| 8.7 in | |
| Package Level 1 Height | 150 mm |
| 5.9 in | |
| Package Level 1 Gross Weight | 2.2 kg |
| 4.8 lb | |
| Package Level 1 EAN | 6417019479811 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 160 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | NH000 |
| NH00 | |
| Fuse System | DIN |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Current 8 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 160 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 160 A |
| (690 V) 160 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 160 A |
| (690 V) 160 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 160 A |
| (690 V) 160 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 45 kW |
| (400 V) 75 kW | |
| (415 V) 75 kW | |
| (500 V) 90 kW | |
| (690 V) 132 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 12 (Between the Poles) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | 15 … 22 N·m |
| Technical UL/CSA | |
| Tightening Torque | 15 … 22 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS100-160G_ 2015.pdf |
| Declaration of Conformity - CE | 1SCC311137D2703 |
| DNV GL Certificate | 1SCC311125D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3660345 |
| E-Number (Sweden) | 3172116 |
