View larger

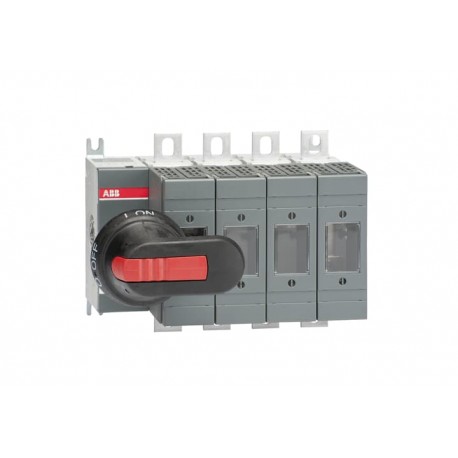

1SCA115882R1001 ABB OS160GD04N2P Switch fuse
1SCA115882R1001
115882
ABB
1 Pcs.
Connectors > Fuse switch disconnector
OS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The ABB 1SCA115882R1001 OS160GD04N2P switch fuse is a reliable protective device designed to combine load-breaking capabilities with fuse protection in electrical distribution grids. These components are commonly installed in industrial control panels to protect against overloads and short circuits while allowing manual circuit isolation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 1SCC311047M0201
- Environmental Product Declaration - EPD: 1SCC311196D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: b3335d60-dd30-4ca5-ad54-e9e774bfa44a Finland
- Simplified SCIP: 28a2ac4a-15dc-48fe-83c5-137537ea60f9 Germany
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC311037M0206
- Mechanical Drawings: OS160GD_F_04.igs
- Degree of Protection: acc. to IEC 60529 IP20
- Pollution Degree: 3
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311047M0201 |
| Environmental Product Declaration - EPD | 1SCC311196D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | b3335d60-dd30-4ca5-ad54-e9e774bfa44a Finland |
| Simplified SCIP | 28a2ac4a-15dc-48fe-83c5-137537ea60f9 Germany |
| 250aec76-2ead-480d-809f-0caf7bffe713 Hungary | |
| 3ef3d4ed-cf53-4ab2-8911-4424139d9118 Germany | |
| 6aae2914-36af-4d16-aecc-6ec68c1d867e Germany | |
| f3a811b8-5b4e-4bde-8076-28c1b3c3b01e Bulgaria | |
| ea5ee33a-b447-4fb1-8d99-2c21b3b377b8 Greece | |
| fab2fc8d-0197-4456-b598-825514fb64d7 Estonia | |
| 6d67a7af-1540-40af-b741-94f14f0594fe Poland | |
| 9d9ade54-a6d0-4c65-bc83-a0dafb2b30c9 Poland | |
| 03c6c900-97fa-4654-84c6-1957e6bb3b37 Portugal | |
| cc13d148-2445-4246-97b3-32b9df87336d Germany | |
| a07a74da-ec39-44dd-89d4-de911d1038a9 Sweden | |
| 4bd97cb7-f4b5-4d39-8889-09793bafa823 Poland | |
| 5f76c765-8fcf-4af7-ab1b-fd9ee207c045 Sweden | |
| 5bbedbdd-93c3-4138-b186-afb863895ddc France | |
| 02f41fc9-46ec-4986-8462-29eb80ddadb1 Netherlands | |
| 3995cd0d-d123-46b7-acc9-e309ccdd1119 Hungary | |
| e5c23d26-62ea-48e4-a2ea-2249ec542b18 Spain | |
| 0454e208-26bb-400b-a134-935e9aef28ad Belgium | |
| 6998db9f-499e-40a1-8af0-e353f05c6bb6 Croatia | |
| 34c506d2-5f6c-43b6-b16c-b1467a16bb8c Denmark | |
| d09d4fce-4f5a-4adf-8f88-7a1d3a11cdc9 Czech Republic | |
| 0a3ce5b0-5a27-4a90-8710-dd9c54ce3a93 Germany | |
| 7f264e93-73a1-4f9f-a9f4-3f4f8478781d France | |
| e5882585-1dfe-4c75-9da3-4854cb3f2169 Norway | |
| ead6d38b-5078-4cc7-acab-b4f4d61a5857 Belgium | |
| ba0b8306-a87f-429b-99b4-81c15aaa9527 Italy | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311037M0206 |
| Mechanical Drawings | OS160GD_F_04.igs |
| Environmental Product Declaration - EPD | 1SCC311196D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 182 mm |
| Product Net Height | 140 mm |
| Product Net Depth / Length | 130 mm |
| Product Net Weight | 2.6 kg |
| 5.73 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| 6.7 in | |
| Package Level 1 Depth / Length | 250 mm |
| 9.8 in | |
| Package Level 1 Height | 155 mm |
| 6.1 in | |
| Package Level 1 Gross Weight | 2.76 kg |
| 6.1 lb | |
| Package Level 1 EAN | 6417019481500 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 160 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - With Solid Link |
| Fuse Size | NH000 |
| NH00 | |
| Fuse System | DIN |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Current 8 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 160 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 160 A |
| (690 V) 160 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 160 A |
| (690 V) 160 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 160 A |
| (690 V) 160 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 45 kW |
| (400 V) 75 kW | |
| (415 V) 75 kW | |
| (500 V) 90 kW | |
| (690 V) 132 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 04 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | 15 … 22 N·m |
| Technical UL/CSA | |
| Tightening Torque | 15 … 22 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS100-160G_ 2015.pdf |
| Declaration of Conformity - CE | 1SCC311137D2703 |
| DNV GL Certificate | 1SCC311125D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3660200 |
| E-Number (Sweden) | 3172121 |
