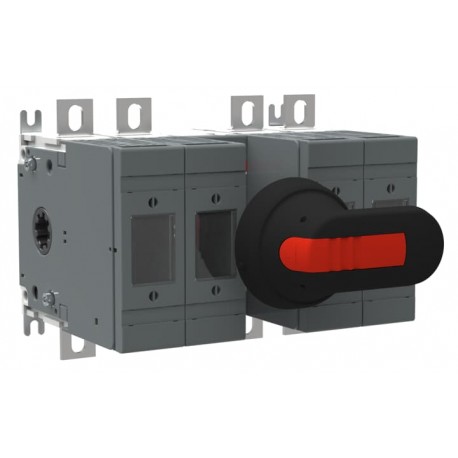

1SCA116730R1001 ABB OS125GD22N1P Switch fuse
1SCA116730R1001
116730
ABB
1 Pcs.
Connectors > Fuse switch disconnector
OS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB switch fuse is an industrial circuit protection device engineered to combine the functions of a disconnect switch and a fuse holder into a single compact unit. Such components are routinely installed within electrical enclosures to safeguard machinery and manage power distribution feeds. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
