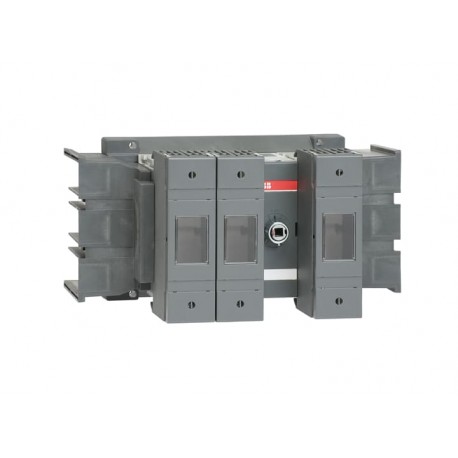

1SCA120255R1001 ABB Fuse switch OS125GD21LRP
1SCA120255R1001
120255
ABB
1 Pcs.
Fuse switch OS125GD21LRP
OS125GD21LRP SPECIAL CONNECTED SWITCH FUSE
Connectors > Fuse switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB Fuse switch OS125GD21LRP (part number 1SCA120255R1001) serves as an efficient switching solution that provides reliable fuse-based protection for industrial electrical circuits.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- Environmental Product Declaration - EPD: 1SCC311196D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: 1bf83e2c-20ee-4bc9-8152-e2b498fc6211 Finland
- Simplified SCIP: 92a6acba-a91b-45a8-8ad0-5b07e5e49403 Germany
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC311040M0205
- Mechanical Drawings: os125-160gd21lr.stp
- Environmental Product Declaration - EPD: 1SCC311196D0201
- Degree of Protection: acc. to IEC 60529 IP20
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Environmental Product Declaration - EPD | 1SCC311196D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 1bf83e2c-20ee-4bc9-8152-e2b498fc6211 Finland |
| Simplified SCIP | 92a6acba-a91b-45a8-8ad0-5b07e5e49403 Germany |
| 1d06946b-5733-43b0-92d9-0c83be9847e2 Portugal | |
| 8bdfc3e4-e01f-4092-bcbf-eb4d8a55a463 Germany | |
| 155424fd-e283-44cf-8c40-c625d94ead06 Poland | |
| aef16663-2cc7-43d9-8100-cc0489759ea9 Sweden | |
| 7a19f548-c96f-406c-81c3-b0ff4b9c8c8c Estonia | |
| faaffc62-48ed-405f-b8c5-9c630e29179a Greece | |
| 961abfec-c608-43d6-91eb-70e11732f2f4 Norway | |
| f446bfb3-548a-42d4-ba8d-277ead412e23 Belgium | |
| 79282af3-cc99-41fa-b9b6-a54cb1bc35fd Poland | |
| 3a4c7f95-f87f-4c6a-855f-b438d7747837 Belgium | |
| 02c366eb-2a42-4951-8dcd-54a1ce4450c9 Spain | |
| ec3dce35-a1ec-4fca-9bd9-ab84814c36ae Sweden | |
| af32ca36-c584-41aa-8009-d686a53a90ff France | |
| 6ae71ece-144b-4b22-906c-698412a74503 Bulgaria | |
| 2aa58764-9c09-4c6e-8116-f908212e54a0 Hungary | |
| ce595c8d-4615-4b4c-ad1c-e9fb8ff35315 Czech Republic | |
| ed4a106b-c93b-4093-9e16-94b374e937df Croatia | |
| 01cd0573-0011-46c3-96d8-b681bde9eb2a Denmark | |
| 3bd513a7-89b9-4158-9d95-f2e0a0c88061 Germany | |
| b9856628-d1d3-4b26-bf6e-d32ff8417334 Poland | |
| 1134ffb4-184e-48ff-ac1d-2f42bf0d966b Italy | |
| cc926694-7cc1-43d5-a32e-ff7a32642eca Hungary | |
| 9819a2a9-efc4-4b6b-83de-3ada29fda661 Netherlands | |
| f7ec7cc7-d5bb-4bc3-acde-4d81d39e601d Germany | |
| a406f8ec-41ca-4f84-846d-3f26b40221e8 Germany | |
| 48df29cb-52d4-4a89-a7b8-208caaf539d4 France | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311040M0205 |
| Mechanical Drawings | os125-160gd21lr.stp |
| Environmental Product Declaration - EPD | 1SCC311196D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 242 mm |
| Product Net Height | 122 mm |
| Product Net Depth / Length | 156 mm |
| Product Net Weight | 2.9 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 132 mm |
| Package Level 1 Depth / Length | 252 mm |
| Package Level 1 Height | 175 mm |
| Package Level 1 Gross Weight | 2.9 kg |
| Package Level 1 EAN | 6417019517681 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 125 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 125 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | NH000 |
| NH00 | |
| Fuse System | DIN |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Left In - Right Out |
| Power Loss | at Rated Operating Conditions per Pole 12 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 125 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 125 A |
| (690 V) 125 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 125 A |
| (690 V) 125 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 125 A |
| (690 V) 125 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 37 kW |
| (400 V) 55 kW | |
| (415 V) 55 kW | |
| (500 V) 75 kW | |
| (690 V) 110 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 21 (Between the Poles) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | 15 … 22 N·m |
| Technical UL/CSA | |
| Tightening Torque | 15 … 22 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| Declaration of Conformity - CE | 1SCC311140D2703 |
| DNV GL Certificate | 1SCC311125D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
