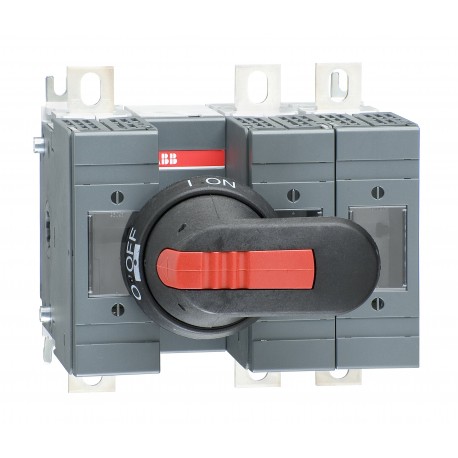

ABB 1SCA115641R1001 1SCA115641R1001 ABB OS125GD12P Switch fuse View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA115641R1001 ABB OS125GD12P Switch fuse

1SCA115641R1001

115641

ABB

1 Pcs.

OS125GD12P Switch fuse Fuse switch OS125GD12P OS125GD12P SWITCH FUSE

Connectors > Fuse switch disconnector
OS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions1SCC311047M0201
Environmental Product Declaration - EPD1SCC311196D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP7bf2f90f-1758-4214-85c0-de48f7cc4846 Finland
Simplified SCIP3c2d5e88-ed08-4034-9357-efe1229dcc44 Germany
a140ea99-0ee9-4eca-bb83-f632c7f56765 Greece
ed79286a-7876-4975-bad2-a93600acecba Portugal
45d7908e-536f-4927-8e30-b0cfd27556c3 Norway
fa0603e5-6c2c-4d2d-adbb-d0ff254222b5 Belgium
364122ca-81c3-4ab8-91f2-ef4d15e474c9 Bulgaria
80129cfe-b7bd-4cbb-9055-174d13a36367 Sweden
d43d07ca-da2f-4f14-9591-5860ce802498 Croatia
0f217c07-e010-4f69-86de-5304de75d729 Poland
b44c98f0-ee12-4690-ac32-c0fab34f49cd Poland
ecfabc2d-f104-4a10-a95e-31836c98758a Spain
2b955102-8833-44bd-899e-ed22c423602e Hungary
ed044a2c-b2de-45ff-a9bb-e156a68d9751 Belgium
0c0001bd-e794-4433-bbff-8d007d067392 Germany
161ca233-617a-471a-bd5d-82db95f66788 Poland
71b012b6-3fc8-4815-aacd-76533c933489 Estonia
422ff8d2-5589-4c82-a529-8a22a9e1bc57 Sweden
004120c5-abd5-4432-93bc-76d251cb621b France
397065b5-b8e0-4124-9546-fc6738df30ef Czech Republic
d0534326-01c4-4c07-b782-4cca84190944 Denmark
f63cb059-945e-4a56-a59f-c9e6e7e48ecf Germany
b4b1cffb-dbc4-40c9-9170-11e2454f44be Germany
282fc2b9-8451-4f33-aebb-cfb0edff361a Italy
b37541ce-a04d-4d1f-8152-71e932046e94 Hungary
7ae716af-602a-490d-b23c-88f6e6f16868 Netherlands
9a642fc4-5885-4e23-9c99-c0bed8343251 France
27cb47d5-db67-4891-a2b8-fe44170c9cb6 Germany
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC311013C0201
Instructions and Manuals1SCC311037M0206
Mechanical DrawingsOS160GD_F_12.igs
Environmental Product Declaration - EPD1SCC311196D0201
Environmental
Degree of Protectionacc. to IEC 60529 IP20
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width147 mm
Product Net Height140 mm
Product Net Depth / Length130 mm
Product Net Weight2.035 kg
4.49 lb
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width170 mm
6.7 in
Package Level 1 Depth / Length220 mm
8.7 in
Package Level 1 Height150 mm
5.9 in
Package Level 1 Gross Weight2.2 kg
4.8 lb
Package Level 1 EAN6417019479798
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 125 A
Conventional Thermal Current (Ithe)Fully Enclosed 125 A
Degree of Protectionacc. to IEC 60529 IP20
Fuse SizeNH000
NH00
Fuse SystemDIN
Handle TypePistol handle
Mounting TypeBase mounting
Number of Poles3P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out, Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 4 W
Rated Conditional Short-Circuit Current (Inc)(500 V) 100 kA
(690 V) 80 kA
Rated Current (In)Main Circuit 125 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-21A (Ie)(500 V) 125 A
(690 V) 125 A
Rated Operational Current AC-22A (Ie)(500 V) 125 A
(690 V) 125 A
Rated Operational Current AC-23A (Ie)(500 V) 125 A
(690 V) 125 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 37 kW
(400 V) 55 kW
(415 V) 55 kW
(500 V) 75 kW
(690 V) 110 kW
Rated Operational VoltageMain Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 5 kiloampere rms
StandardsIEC 60947-3
Switches Operating Mechanism12 (Between the Poles)
Terminal TypeLug terminals
Terminal Width20 mm
Tightening Torque15 … 22 N·m
Technical UL/CSA
Tightening Torque15 … 22 N·m
Certificates and Declarations
A2L Certificate – IEC1SCC311209D0201
ATEX CertificateNo certification needed
CCC CertificateCCC OS100-160G_ 2015.pdf
Declaration of Conformity - CE1SCC311137D2703
DNV GL Certificate1SCC311125D0203
UL CertificateNo certification needed
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC001040 - Fuse switch disconnector
ETIM 10EC001040 - Fuse switch disconnector
UNSPSC39122233
IDEA Granular Category Code (IGCC)5291 >> Fuse switch disconnector
eClassV11.1 : 27371401
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3660341
E-Number (Sweden)3172114
