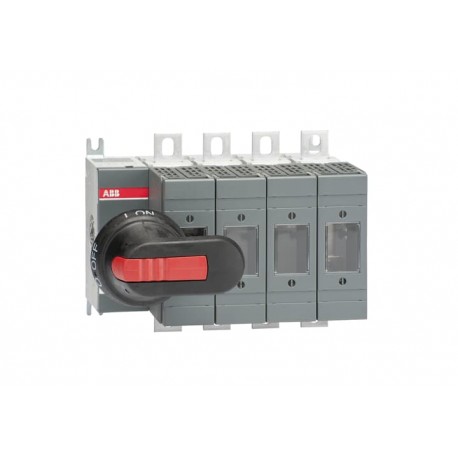

ABB 1SCA115877R1001 1SCA115877R1001 ABB OS125GD04N2P Switch fuse View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA115877R1001 ABB OS125GD04N2P Switch fuse

1SCA115877R1001

115877

ABB

1 Pcs.

OS125GD04N2P Switch fuse Fuse switch OS125GD04N2P OS125GD04N2P SWITCH FUSE

Connectors > Fuse switch disconnector
OS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions1SCC311047M0201
Environmental Product Declaration - EPD1SCC311196D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIPd0a16afa-3142-4b5c-bdd9-ce09810aa3a6 Finland
Simplified SCIP8f130836-ef26-4354-908d-7476743ad529 Germany
0c36052f-e77e-4b15-9eea-823c34ea035c Portugal
dbf8b35d-4f08-4e63-8c9d-218ef9ae6c90 Greece
d68941f9-76bf-4438-909b-7cc4c5961a84 Estonia
9fc71f06-4e63-420e-ab23-5cf7ee997b2c Hungary
85dd1d6e-22d7-4c76-aa0d-a16c52fe3538 Belgium
3045efa7-81c4-4c74-ae52-887951fa7a2f Poland
65b9caa2-ef8b-4763-bb36-dc23bfdbc266 Croatia
522a2ea4-955f-45d7-a3bd-8dab25e575c5 Sweden
46546931-b6bf-4d89-82bc-15795c49e793 Poland
3a099b59-e9a9-4d6f-ba84-94f887b41b49 Germany
ee0e33f8-db40-4d2f-be44-1e8549658093 Bulgaria
f6ee1a34-9987-42a0-8b92-79c53b84a84b Spain
cfff4e75-5724-42a9-84ff-86e708550b2a Czech Republic
0364de8f-4f0b-4fd3-bf6a-b908cb611fcf France
8e917d3b-b734-4236-b163-004087390b4c Hungary
6355d87e-d036-4e53-83d6-ab89a37e4240 Germany
da0e0c57-68e2-4a3b-a4d6-267bf01194ec Germany
9fdb32e1-9c3b-432a-bff2-e6b76b1318a7 Denmark
f0426f4b-e5a3-4ed9-9cbd-a1ee188767dd Germany
6a449023-0d4f-42bc-86a5-ad5b38a4418f Norway
612b6e48-d55a-487d-9215-844bc01c39e7 Italy
abda25e4-50d5-495b-bce9-f34b1c067477 Netherlands
8cb54a68-5218-45cc-aa96-33c84c12ba0a Poland
97efb612-854c-4f32-b62c-83665fa8f9fe Belgium
7ba30301-a68b-4741-8242-526fcf4928b7 Sweden
c9a4e3a1-a9fb-460d-a4ea-f9f8ee6cf679 France
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC311013C0201
Instructions and Manuals1SCC311037M0206
Mechanical DrawingsOS160GD_F_04.igs
Environmental Product Declaration - EPD1SCC311196D0201
Environmental
Degree of Protectionacc. to IEC 60529 IP20
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width182 mm
Product Net Height140 mm
Product Net Depth / Length130 mm
Product Net Weight2.6 kg
5.73 lb
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width170 mm
6.7 in
Package Level 1 Depth / Length250 mm
9.8 in
Package Level 1 Height155 mm
6.1 in
Package Level 1 Gross Weight2.76 kg
6.1 lb
Package Level 1 EAN6417019481456
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 125 A
Conventional Thermal Current (Ithe)Fully Enclosed 125 A
Degree of Protectionacc. to IEC 60529 IP20
Fourth Pole PositionRight Side
Fourth Pole TypeSwitched - With Solid Link
Fuse SizeNH000
NH00
Fuse SystemDIN
Handle TypePistol handle
Mounting TypeBase mounting
Number of Poles4P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out, Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 4 W
Rated Conditional Short-Circuit Current (Inc)(500 V) 100 kA
(690 V) 80 kA
Rated Current (In)Main Circuit 125 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-21A (Ie)(500 V) 125 A
(690 V) 125 A
Rated Operational Current AC-22A (Ie)(500 V) 125 A
(690 V) 125 A
Rated Operational Current AC-23A (Ie)(500 V) 125 A
(690 V) 125 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 37 kW
(400 V) 55 kW
(415 V) 55 kW
(500 V) 75 kW
(690 V) 110 kW
Rated Operational VoltageMain Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 5 kiloampere rms
StandardsIEC 60947-3
Switches Operating Mechanism04 (Left Side)
Terminal TypeLug terminals
Terminal Width20 mm
Tightening Torque15 … 22 N·m
Technical UL/CSA
Tightening Torque15 … 22 N·m
Certificates and Declarations
A2L Certificate – IEC1SCC311209D0201
ATEX CertificateNo certification needed
CCC CertificateCCC OS100-160G_ 2015.pdf
Declaration of Conformity - CE1SCC311137D2703
DNV GL Certificate1SCC311125D0203
UL CertificateNo certification needed
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC001040 - Fuse switch disconnector
ETIM 10EC001040 - Fuse switch disconnector
UNSPSC39122233
IDEA Granular Category Code (IGCC)5291 >> Fuse switch disconnector
eClassV11.1 : 27371401
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3660253
E-Number (Sweden)3172119

ETIM for 1SCA115877R1001 Low-voltage industrial controls and switchgear (EC001040)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as safety switch (EF006985) Yes
Max. rated operation voltage Ue AC (EF007355) 1000 V
Rated permanent current Iu (EF001389) 125 A
Rated operation power at AC-23, 400 V (EF007027) 110 kW
Conditioned rated short-circuit current Iq (EF001444) 80 kA
Rated short-time withstand current lcw (EF007050) 5 kA
Suitable for fuses (EF006692) NH000
Number of poles (EF001391) 4
Type of electrical connection of main circuit (EF006819) Bolt connection
Cable entry (EF000537) Other
Equipped with connectors (EF011696) Yes
Suitable for floor mounting (EF007243) No
Suitable for front mounting (EF007246) No
Suitable for busbar mounting (EF007259) Yes
Type of control element (EF006976) Long turning handle
Position control element (EF009410) Left
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Version as emergency stop installation (EF006959) No
