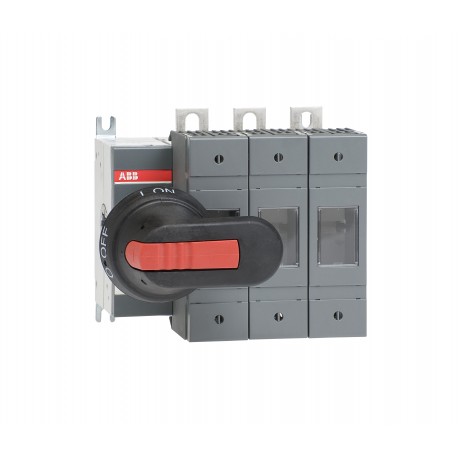

1SCA115639R1001 ABB OS125GD03P Switch fuse
1SCA115639R1001
115639
ABB
1 Pcs.
Connectors > Fuse switch disconnector
OS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The ABB 1SCA115639R1001 OS125GD03P switch fuse offers reliable electrical isolation and dependable short-circuit protection for commercial and industrial applications. Electrical engineers specify switch fuses within panel boards to protect equipment from overcurrent while providing a clear point of disconnection. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 1SCC311047M0201
- Environmental Product Declaration - EPD: 1SCC311196D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: e99b5a1b-52fc-41f5-a489-e2af81329c2a Finland
- Simplified SCIP: 762112ed-bd29-46f7-bb2d-4ca5033ef0fe Germany
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC311037M0206
- Mechanical Drawings: OS160GD_F_03.igs
- Degree of Protection: acc. to IEC 60529 IP20
- Pollution Degree: 3
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311047M0201 |
| Environmental Product Declaration - EPD | 1SCC311196D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | e99b5a1b-52fc-41f5-a489-e2af81329c2a Finland |
| Simplified SCIP | 762112ed-bd29-46f7-bb2d-4ca5033ef0fe Germany |
| 6217d37e-c272-4238-b0cb-6e2f62330e9e Norway | |
| f3b64afd-6172-4717-8acf-72c81e263e6d Poland | |
| 177d70b7-07de-4eba-82dd-950058243b70 Sweden | |
| f515b1dc-2712-4644-b701-e71fdb3cea5f Poland | |
| 47f2230b-f687-48dd-b494-1e62cca18822 Bulgaria | |
| 7d8b4194-b0a5-4faf-a1ac-ed0beb5fcf97 Portugal | |
| d0b06ac1-95e9-427d-b211-ca3d95b81de9 Germany | |
| 4110b36d-f03f-4bfe-8104-4f25977e3bbc Greece | |
| 9b702483-58b8-4da1-887d-0f2d39a2c2a1 Estonia | |
| 5d583fd8-9b82-42c5-851a-8eb485cdb4ec France | |
| 503eb8d7-273e-4761-bf14-76397b51a2da Czech Republic | |
| c0eed106-22d8-4c38-9213-7104a7620b6d Belgium | |
| f8f82697-50e4-4db8-820b-9862e58eaaaa Spain | |
| 187e1b49-f979-4f13-8b54-f7d04339545b Hungary | |
| 7b4bf351-c301-4c7d-9232-0dff1633fcff Denmark | |
| b8c30d31-b006-41a9-8aff-5fd9efcefe44 Croatia | |
| d5e45d84-2a11-4770-8104-768a987c359d Germany | |
| 9a8b016d-c74c-445b-a6d8-002d05939819 Germany | |
| 6e04afb5-ea98-47c2-895d-978049903366 France | |
| 93493313-d3c5-47b1-85c7-378c4bc8d70d Italy | |
| 9e8433c9-37dc-4c35-91e1-4f1aa56b9b1c Belgium | |
| 364a672f-75d9-4478-aa1e-8dfbac85a59c Poland | |
| 2de1e864-9ac1-4d60-8cdc-790ea637c16b Netherlands | |
| 7f062f6a-ccec-454b-8747-b19f3681d93f Germany | |
| cb3a3bec-427c-47ed-b8ca-f8517a03196f Hungary | |
| 5f61fbce-048a-42b9-bcb1-5361d63bab3c Sweden | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311037M0206 |
| Mechanical Drawings | OS160GD_F_03.igs |
| Environmental Product Declaration - EPD | 1SCC311196D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 147 mm |
| Product Net Height | 140 mm |
| Product Net Depth / Length | 130 mm |
| Product Net Weight | 2.035 kg |
| 4.49 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| 6.7 in | |
| Package Level 1 Depth / Length | 220 mm |
| 8.7 in | |
| Package Level 1 Height | 150 mm |
| 5.9 in | |
| Package Level 1 Gross Weight | 2.2 kg |
| 4.8 lb | |
| Package Level 1 EAN | 6417019479774 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 125 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 125 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | NH000 |
| NH00 | |
| Fuse System | DIN |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 4 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 125 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 125 A |
| (690 V) 125 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 125 A |
| (690 V) 125 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 125 A |
| (690 V) 125 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 37 kW |
| (400 V) 55 kW | |
| (415 V) 55 kW | |
| (500 V) 75 kW | |
| (690 V) 110 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 03 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | 15 … 22 N·m |
| Technical UL/CSA | |
| Tightening Torque | 15 … 22 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS100-160G_ 2015.pdf |
| Declaration of Conformity - CE | 1SCC311137D2703 |
| DNV GL Certificate | 1SCC311125D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3660239 |
| E-Number (Sweden) | 3172118 |
