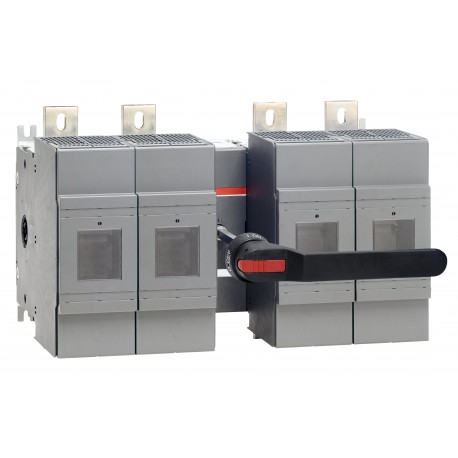

1SCA107933R1001 ABB OS1250D22N2P Switch fuse
1SCA107933R1001
107933
ABB
1 Pcs.
Connectors > Fuse switch disconnector
OS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB OS1250D22N2P Switch fuse offers heavy-duty load switching combined with high-capacity fuse protection for massive industrial electrical systems. These robust units ensure safe circuit isolation and prevent catastrophic electrical failures in high-power setups.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- Environmental Product Declaration - EPD: 1SCC311203D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC311022M0207
- Mechanical Drawings: OS1250_D_B_22.igs
- Environmental Product Declaration - EPD: 1SCC311203D0201
- Degree of Protection: acc. to IEC 60529 IP20
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country or Territory of Origin: Finland
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Environmental Product Declaration - EPD | 1SCC311203D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311022M0207 |
| Mechanical Drawings | OS1250_D_B_22.igs |
| Environmental Product Declaration - EPD | 1SCC311203D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 542 mm |
| Product Net Height | 356 mm |
| Product Net Depth / Length | 371 mm |
| Product Net Weight | 35.485 kg |
| 78.23 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 394 mm |
| 15.51 in | |
| Package Level 1 Depth / Length | 584 mm |
| 22.99 in | |
| Package Level 1 Height | 385 mm |
| 15.16 in | |
| Package Level 1 Gross Weight | 38.085 kg |
| 83.96 lb | |
| Package Level 1 EAN | 6417019413914 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 1250 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 1000 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - With Solid Link |
| Fuse Size | NH4 |
| Fuse System | DIN |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 75 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 1250 A |
| (500 V) 1250 A | |
| (690 V) 1250 A | |
| Rated Operational Current AC-21B (Ie) | (500 V) 1250 A |
| (690 V) 1250 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1250 A |
| Rated Operational Current AC-22B (Ie) | (500 V) 1250 A |
| (690 V) 1250 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1000 A |
| Rated Operational Current AC-23B (Ie) | (500 V) 1000 A |
| (690 V) 1000 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 315 kW |
| (400 V) 560 kW | |
| (415 V) 560 kW | |
| (500 V) 710 kW | |
| (690 V) 1000 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 40 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 22 (Between the Poles) |
| Terminal Type | Lug terminals |
| Terminal Width | 50 mm |
| Tightening Torque | 50 ... 75 N·m |
| Technical UL/CSA | |
| Tightening Torque | 50 ... 75 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311210D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS1200-1250 2015.pdf |
| Declaration of Conformity - CE | 1SCC311127D2703 |
| DNV GL Certificate | 1SCC311131D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| E-Number (Finland) | 3661006 |
