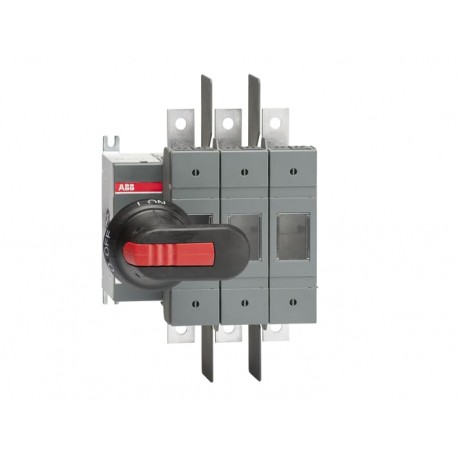

1SCA114639R1001 ABB OS100GJ03P Fusible disconnect switch
1SCA114639R1001
114639
ABB
1 Pcs.
Connectors > Fuse switch disconnector
OS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered by Abb, the 1SCA114639R1001 fusible disconnect switch delivers reliable circuit control and short-circuit protection by housing high-performance fuses within an enclosed switching mechanism. This component type is commonly specified in manufacturing plants and distribution switchboards to safely interrupt power under load. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 1SCC311047M0201
- Environmental Product Declaration - EPD: 1SCC311196D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: cd41ec4c-cf08-4162-b4f3-460daaacfef4 Finland
- Simplified SCIP: c12d1b3d-77ba-4a7f-8591-c077fdcd1858 Germany
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC311037M0206
- Mechanical Drawings: OS100GJ03.igs
- Degree of Protection: acc. to IEC 60529 IP20
- Pollution Degree: 3
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311047M0201 |
| Environmental Product Declaration - EPD | 1SCC311196D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | cd41ec4c-cf08-4162-b4f3-460daaacfef4 Finland |
| Simplified SCIP | c12d1b3d-77ba-4a7f-8591-c077fdcd1858 Germany |
| 841e5a28-d24d-4cfe-9f45-6bca282c3422 Sweden | |
| f46a3f0c-a537-497f-9d52-a5f289c3f67d Poland | |
| 3a65c31f-a552-44f3-9ef3-cf4b8c66deba Portugal | |
| 6e55d006-62ae-41b6-adc9-b5c75381af3a Germany | |
| 2cf7b615-6f24-48cc-81da-fde3b22b1e88 Bulgaria | |
| d0092ebc-0a8c-47f4-8be6-b8d6884f21e3 Greece | |
| a4f8dbd7-0974-4924-8016-ddc69fb81182 Estonia | |
| 75398b68-7894-4a19-b209-093bb1a5b316 Italy | |
| 77b72310-ed16-4138-82a4-79429d8920ad Poland | |
| 53903b0a-e765-4044-928a-5ed3eae7a25d Netherlands | |
| 18e0997a-c307-4b3d-8e4e-5b21afaa2145 Poland | |
| 45fae051-d52e-45c2-ae85-3c442829adfb Sweden | |
| 94baf4ea-622a-4d88-87c4-c0fac1cd82ad France | |
| 7ef1b16d-54ec-4ab4-8335-9fc517da4f0e Belgium | |
| b286ed76-2e28-401d-a91d-f6b29a117b6e Spain | |
| cf8019a1-579c-4cf5-a83b-d535f2c4220f Hungary | |
| df56a300-133e-4d59-bcba-8580620df0bf Germany | |
| 24a3589e-ee1b-45e3-9b73-927b4078e18d Denmark | |
| 18bb0aed-6128-4759-ade8-17979521fd80 Croatia | |
| 6064cf25-391d-41df-bbcd-d24b45409340 Czech Republic | |
| 177bf993-ffee-4ac3-8d3a-1ae859a22970 France | |
| b6cd9893-8972-4b7c-8922-a09134f18965 Belgium | |
| 1eada7ad-e0b1-41e9-8b99-bb75ec71c0bf Norway | |
| 361d623a-6810-4afa-a578-fd1c13e91a04 Hungary | |
| 85575df8-c9b5-4e61-81b0-b33b20a6fcdd Germany | |
| d021d670-fb66-4f1c-b4ce-d5d843197ff8 Germany | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311037M0206 |
| Mechanical Drawings | OS100GJ03.igs |
| Environmental Product Declaration - EPD | 1SCC311196D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 147 mm |
| Product Net Height | 172 mm |
| Product Net Depth / Length | 105 mm |
| Product Net Weight | 2 kg |
| 4.41 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 192 mm |
| 7.56 in | |
| Package Level 1 Depth / Length | 242 mm |
| 9.53 in | |
| Package Level 1 Height | 159 mm |
| 6.26 in | |
| Package Level 1 Gross Weight | 2.245 kg |
| 4.95 lb | |
| Package Level 1 EAN | 6417019470603 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 160 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | 100 A |
| Fuse System | Class J |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Current 8 W |
| Rated Conditional Short-Circuit Current (Inc) | (600 V AC) 200 kA |
| Rated Current (In) | Main Circuit 100 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 100 A |
| (690 V) 100 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 100 A |
| (690 V) 100 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 100 A |
| (690 V) 100 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 45 kW |
| (400 V) 75 kW | |
| (415 V) 75 kW | |
| (500 V) 90 kW | |
| (690 V) 132 kW | |
| Rated Operational Voltage | Main Circuit 600 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kiloampere rms |
| Standards | UL98 |
| IEC 60947-3 | |
| Switches Operating Mechanism | 03 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | 15 ... 22 N·m |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Main Circuit 250 V DC | |
| Ampere Rating | 100 A |
| Horsepower Rating UL/CSA | (acc. to UL 240 V) 30 Hp |
| (acc. to UL 480 V) 60 Hp | |
| (acc. to UL 600 V) 75 Hp | |
| Tightening Torque | 15 ... 22 N·m |
| Tightening Torque UL/CSA | Wire-Clamp 120 in·lb |
| Cable Lug 50 in·lb | |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS100-160G_ 2015.pdf |
| Declaration of Conformity - CE | 1SCC311137D2703 |
| DNV GL Certificate | 1SCC311125D0203 |
| UL Certificate | cULus certificate OS100GJ_ |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
