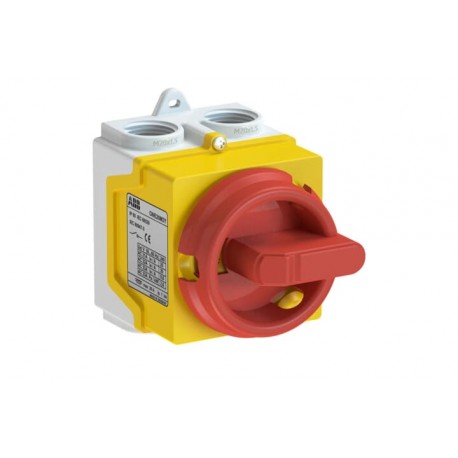

ABB 1SCA135540R1001 1SCA135540R1001 ABB ONE20M4Y Enclosed Switch Disconnector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA135540R1001 ABB ONE20M4Y Enclosed Switch Disconnector

1SCA135540R1001

135540

ABB

1 Pcs.

ONE20M4Y Enclosed Switch Disconnector IP67 ONE20M4Y disconnect switch

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An enclosed switch disconnector, referenced as 1SCA135540R1001 ABB ONE20M4Y Enclosed Switch Disconnector by Abb, protects electrical isolation components inside a sealed housing suitable for demanding environmental conditions. These devices allow technicians to safely cut power directly at equipment sites to prevent accidental energization during repairs.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC340076D0201
  • RoHS Declaration: 1SCC340075D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Toxic Substances Control Act - TSCA: 1SCC340095D0201
  • Data Sheet, Technical Information: 1SCC340015C0201
  • Instructions and Manuals: 1SCC390135M0204
  • Mechanical Drawings: ONE926584RM20.stp
  • Degree of Protection: acc. to IEC 60529 IP67
  • Minimum Order Quantity: 10 piece
  • Customs Tariff Number: 85363030
  • Country or Territory of Origin: Germany
  • Product Net Width: 65 mm
  • Product Net Height: 92 mm
  • Product Net Depth / Length: 84 mm
  • Product Net Weight: 0.13 kg

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC340076D0201
RoHS Declaration1SCC340075D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC340095D0201
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC390135M0204
Mechanical DrawingsONE926584RM20.stp
Environmental
Degree of Protectionacc. to IEC 60529 IP67
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number85363030
Country or Territory of OriginGermany
Dimensions
Product Net Width65 mm
Product Net Height92 mm
Product Net Depth / Length84 mm
Product Net Weight0.13 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width85 mm
Package Level 1 Depth / Length103 mm
Package Level 1 Height66 mm
Package Level 1 Gross Weight0.17 kg
Package Level 1 EAN6417019641294
Technical
Cable Cross-Section0.75 ... 4 mm²
Cable Entry PositionTop/Bottom
Cable Outlets Per Side2xM20 / 2xM20
ColorRAL1021 / RAL7035
Connecting Capacity Main CircuitScrew Clamp 0.75 ... 4 mm²
Screw Clamp / PE Terminal 1pc, 0.75 ... 4 mm²
Conventional Thermal Current (Ithe)Fully Enclosed 20 A
Degree of Protectionacc. to IEC 60529 IP67
Enclosure MaterialPlastic
Handle ColorRed
Handle TypeRound handle
Impact Resistance RatingHousing IK09
Mounted Auxiliary Contacts0 NO, 0 NC
Neutral TypeFixed Neutral
Number of Auxiliary Contacts NC0
Number of Auxiliary Contacts NO0
Number of Poles4P
Rated Impulse Withstand Voltage (Uimp)4 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 690 V
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 20 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 15.2 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 7.5 kW
Recommended Screw DriverMain Circuit Pozidriv 2
StandardsIEC 60947-1, -3
Tightening TorqueMain Circuit 1.1 N·m
Wire Stripping Length7 mm
Technical UL/CSA
Wire Stripping Length7 mm
Recommended Screw DriverMain Circuit Pozidriv 2
Tightening TorqueMain Circuit 1.1 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC343001D2702
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122205
IDEA Granular Category Code (IGCC)5166 >> Safety switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
