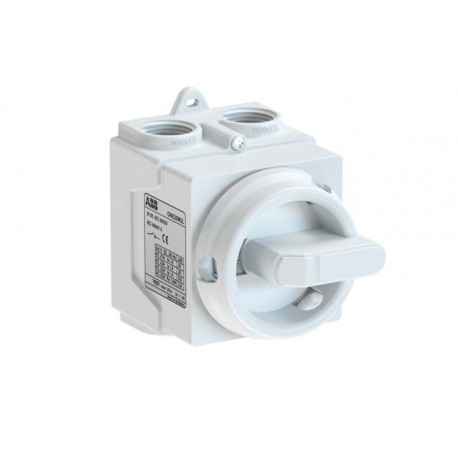

1SCA138459R1001 ABB ONE20M4W Enclosed Switch Disconnector
1SCA138459R1001
138459
ABB
1 Pcs.
ONE20M4W Enclosed Switch Disconnector
IP67 ONE20M4W disconnect switch
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb 1SCA138459R1001 ABB ONE20M4W Enclosed Switch Disconnector functions as a protective housed switching unit designed to isolate electrical power directly at machine locations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC340076D0201
- RoHS Declaration: 1SCC340075D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC340095D0201
- Data Sheet, Technical Information: 1SCC340015C0201
- Instructions and Manuals: 1SCC390135M0204
- Mechanical Drawings: ONE926584RM20.stp
- Degree of Protection: acc. to IEC 60529 IP67
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85363030
- Country or Territory of Origin: Germany
- Product Net Width: 65 mm
- Product Net Height: 92 mm
- Product Net Depth / Length: 84 mm
- Product Net Weight: 0.13 kg
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC390135M0204 |
| Mechanical Drawings | ONE926584RM20.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP67 |
| Ordering | |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85363030 |
| Country or Territory of Origin | Germany |
| Dimensions | |
| Product Net Width | 65 mm |
| Product Net Height | 92 mm |
| Product Net Depth / Length | 84 mm |
| Product Net Weight | 0.13 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 85 mm |
| Package Level 1 Depth / Length | 103 mm |
| Package Level 1 Height | 66 mm |
| Package Level 1 Gross Weight | 0.17 kg |
| Package Level 1 EAN | 6417019667584 |
| Technical | |
| Cable Cross-Section | 0.75 ... 4 mm² |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xM20 / 2xM20 |
| Color | RAL9003 / RAL7035 |
| Connecting Capacity Main Circuit | Screw Clamp 0.75 ... 4 mm² |
| Screw Clamp / PE Terminal 1pc, 0.75 ... 4 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 20 A |
| Degree of Protection | acc. to IEC 60529 IP67 |
| Enclosure Material | Plastic |
| Handle Color | White |
| Handle Type | Round handle |
| Impact Resistance Rating | Housing IK09 |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Fixed Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 4P |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 690 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 20 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 15.2 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 7.5 kW |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 1.1 N·m |
| Wire Stripping Length | 7 mm |
| Technical UL/CSA | |
| Wire Stripping Length | 7 mm |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Tightening Torque | Main Circuit 1.1 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC343001D2702 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
