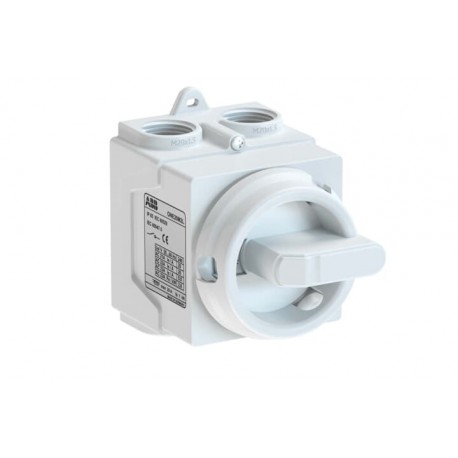

ABB 1SCA138456R1001 1SCA138456R1001 ABB ONE20M2W Enclosed Switch Disconnector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA138456R1001 ABB ONE20M2W Enclosed Switch Disconnector

1SCA138456R1001

138456

ABB

1 Pcs.

ONE20M2W Enclosed Switch Disconnector IP67 ONE20M2W disconnect switch

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB ONE20M2W enclosed switch disconnector provides reliable power isolation inside harsh or exposed environments where dust and moisture protection is critical. Enclosed units are typically mounted directly next to industrial machinery to allow safe, local disconnection of electrical supplies prior to servicing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC340076D0201
  • RoHS Declaration: 1SCC340075D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Toxic Substances Control Act - TSCA: 1SCC340095D0201
  • Data Sheet, Technical Information: 1SCC340015C0201
  • Instructions and Manuals: 1SCC390135M0205
  • Mechanical Drawings: ONE926584RM20.stp
  • Degree of Protection: acc. to IEC 60529 IP67
  • Minimum Order Quantity: 10 piece
  • Customs Tariff Number: 85363030
  • Country or Territory of Origin: Finland
  • Product Net Width: 65 mm
  • Product Net Height: 92 mm
  • Product Net Depth / Length: 84 mm
  • Product Net Weight: 0.11 kg

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC340076D0201
RoHS Declaration1SCC340075D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC340095D0201
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC390135M0205
Mechanical DrawingsONE926584RM20.stp
Environmental
Degree of Protectionacc. to IEC 60529 IP67
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number85363030
Country or Territory of OriginFinland
Dimensions
Product Net Width65 mm
Product Net Height92 mm
Product Net Depth / Length84 mm
Product Net Weight0.11 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width85 mm
Package Level 1 Depth / Length103 mm
Package Level 1 Height66 mm
Package Level 1 Gross Weight0.15 kg
Package Level 1 EAN6417019667560
Technical
Cable Cross-Section0.75 ... 4 mm²
Cable Entry PositionTop/Bottom
Cable Outlets Per Side2xM20 / 2xM20
ColorRAL9003 / RAL7035
Connecting Capacity Main CircuitScrew Clamp 0.75 ... 4 mm²
Screw Clamp / PE Terminal 1pc, 0.75 ... 4 mm²
Conventional Thermal Current (Ithe)Fully Enclosed 20 A
Degree of Protectionacc. to IEC 60529 IP67
Enclosure MaterialPlastic
Handle ColorWhite
Handle TypeRound handle
Impact Resistance RatingHousing IK09
Mounted Auxiliary Contacts0 NO, 0 NC
Number of Auxiliary Contacts NC0
Number of Auxiliary Contacts NO0
Number of Poles2P
Rated Impulse Withstand Voltage (Uimp)4 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 690 V
Rated Operational Current AC-22A (Ie)(230 V) Single Phase 20 A
Rated Operational Current AC-23A (Ie)(230 V) Single Phase 15.2 A
Rated Operational Power AC-23A (Pe)(230 V) Single Phase 2.6 kW
Recommended Screw DriverMain Circuit Pozidriv 2
StandardsIEC 60947-1, -3
Tightening TorqueMain Circuit 1.1 N·m
Wire Stripping Length7 mm
Technical UL/CSA
Wire Stripping Length7 mm
Recommended Screw DriverMain Circuit Pozidriv 2
Tightening TorqueMain Circuit 1.1 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC343001D2702
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122205
IDEA Granular Category Code (IGCC)5166 >> Safety switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3638750
